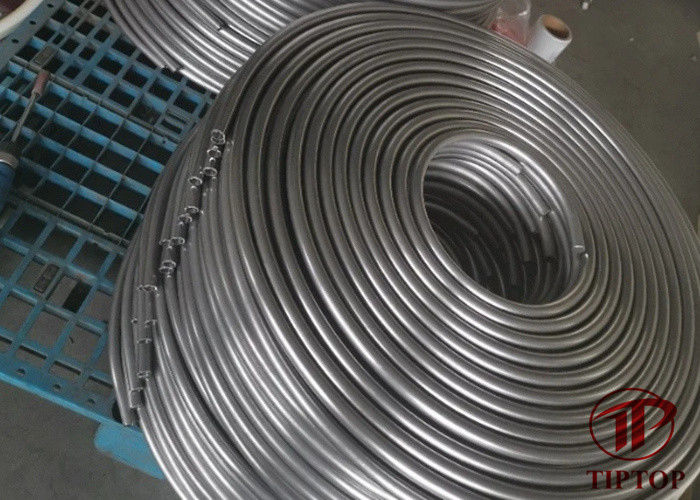

Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Detail Information |
|||
Technique: | Cold Drawn | Product: | Customized High Pressure SS Hydraulic Control Line Tubing Cold Drawn |
---|---|---|---|
Working Pressure: | 60-120 Mpa | Processing Type: | Welded&seamless |
OD: | 1/8"-1/2" | Thickness: | 0.025"-0.083" |
High Light: | Control Line Ss Coiled Tubing,0.025" Ss Coiled Tubing,ISO Ss Coiled Tubing |
Product Description
TIPTOP's leading products are stainless steel control lines (high working pressure and extra length) and stainless steel test cables produced by our company. Our company has been certified by CCS, GL, DNV, ABS and so forth. High quality and good service make our products exported to many countries.
Size Chart
OD (inch) |
Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8 | 0.02, 0.028, 0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Up to 1" |
3/16 | 0.02, 0.028, 0.035, 0.049 | ||||
1/4 | 0.02, 0.028, 0.035, 0.049, 0.065, 0.083 | ||||
5/16 | |||||
3/8 | |||||
1/2 | |||||
The specification and length per coil can be customized according to customer’s requirements. |
Our product quality is recognized by our customers, and the price is quite competitive, which can help customers gain a place in the local market, so we enjoy a good reputation among our foreign customers. We have established long-term, reliable and mutually beneficial business relationships with many foreign customers.
Chemical Composition
Composition,% | ||||||||
Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
C | 0.080 | 0.035 | 0.080 | 0.035 | 0.030 | 0.030 | 0.10 | 0.05 |
Mn | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 1.20 | 0.50 | 1.00 |
P | 0.045 | 0.045 | 0.045 | 0.045 | 0.030 | 0.035 | 0.015 | ... |
S | 0.030 | 0.030 | 0.030 | 0.030 | 0.020 | 0.020 | 0.015 | 0.030 |
Si | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 0.80 | 0.50 | 0.50 |
Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
Mo | ~ | ~ | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
N | ~ | ~ | ~ | ~ | 0.14-0.20 | 0.24-0.32 | ~ | ~ |
Cu | ~ | ~ | ~ | ~ | ~ | 0.50 | ~ | 1.5-3.0 |
Fe | ~ | ~ | ~ | ~ | ~ | ~ | 5.0 | min 22.0 |
Al | ~ | ~ | ~ | ~ | ~ | ~ | 0.4 | 0.2 |
Ti | ~ | ~ | ~ | ~ | ~ | ~ | 0.40 | 0.6-1.2 |
Cb+Ta | ~ | ~ | ~ | ~ | ~ | ~ | 3.15-4.15 | ~ |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
