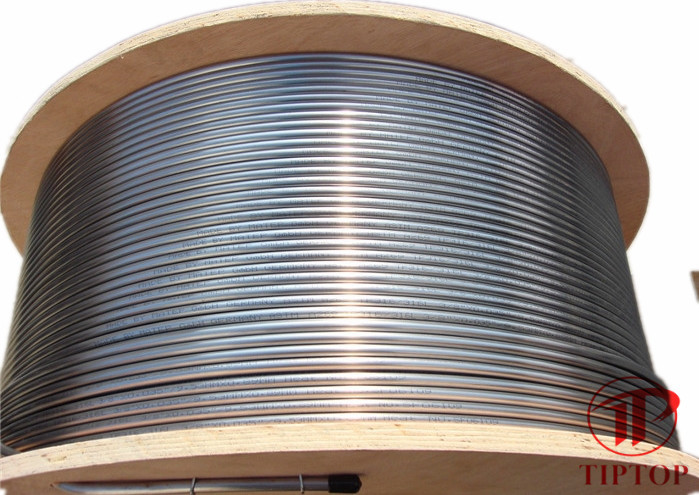

1 1/4" ASTM A269 316L Seamless Stainless Steel Coils

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Seaworthy wooden cases or wooden reels Delivery Time : 10 days
Payment Terms : T/T Supply Ability : 1000 tons per month
Place of Origin: CHINA Brand Name: TIPTOP
Certification: ISO 9001 Model Number: 316

Detail Information

Material: 316L Standard: ASTM A269
Length: According To The Sizes Processing: Bending, Welding, Cutting
OD: 1/16"~1" Thickness: 0.02"~0.083"
High Light:

316L Seamless Stainless Steel Coils


1 1/4" Seamless SS316L Coils


ASTM A269 Stainless Steel Coils

Product Description

316L Seamless Stainless Steel Coiled Tubings


Precision Cold Drawn Stainless Steel Seamless Coiled Tubes


Surface Finish: Vacuum bright annealing (adopting vacuum bright annealing process, the inside and outside surface of stainless steel pipe will not contact with oxygen, and no oxide skin will be roduced, so that the surface of stainless steel coiled tubes will be cleaner, brighter and more delicate)


Stainless Steel Cold Drawn Seamless Tubing In Coils.
1 Production Process: Cold drawing (cold-draw)
2 Delivery Status: Soft state (HRB ≤ 90)
3 Grade: 304 / 304L / 316L / 321 / 317L
4 Standard: ASTM (ASME) SA / A312 /A213 /A269 and DIN, GB, JIS.
5 Size: O.D3/16"-1 1/4 "(4.76mm-31.8mm), W.T 0.028"-0.083"(0.7mm-2.11mm).
6 Tolerance: Outer Diameter: ±0.08mm(0.00315″), Wall Thickness: ±10%.
7 Length:

According to the different outer diameter and wall thickness, the weight of one
coil of seamless coiled tubes is about 80kg-100kg.

Please Note:The longer the length of seamless coiled tubes, the more expensive
the price Is. The most economical price is that the weight of single coil is less than 28kg.

According to the required outer diameter and wall thickness, the length of
stainless steel seamless coiled tubes is converted by the theoretical calculation
formula of stainless steel tube.

Solemnly Note:There is no welding point in the whole coils of seamless
coiled tubes.

According to the demand, multi coils stainless steel seamless coiled tubes can
also be used to form super long stainless steel coil tubes of several thousand
meters by butt welding.

8 Marking on pipes: As Customer's Requirement.
9 Certification: ISO9001:2000,GB/T19001-2000.
10 Delivery Mode:

T / T Settlement, both can be in ton price and per meter price or per foot price.

The production cycle of stainless steel seamless coiled tubes with single coil
weight less than 30kg is about 25-45 days

The single coil weight of stainless steel seamless coiled tubes is 30kg-50kg, and
the production cycle is about 60-75 days

The single coil weight of stainless steel seamless coiled tubes is 50kg-100kg, and
the production cycle is about 75-100days

11 Packing: Packed in woven bag or plywood box, plywood spool, convenient for transportation and storage;The finished stainless steel coiled tubes will be wound into a roll and packed into plywood box,or it's wrapped in plywood spools,Maritime, ground and air transport are convenient,Reduce transportation costs and facilitate customer inventory storage.
12 Advantages: Stainless steel bright coiled tubes can be cut and bent according to the required length In use, which can reduce waste and cost. Especially in the installation of the pipeline, The installation joint is saved and the ety performance is improved. Especially in the Hydraulic system to reduce the risk of system leakage, seamless coiled tubes will be The best choice, greatly reducing the use of joints in the installation process, the ety of The entire pipeline system is completely improved and strengthened the security of the system operation.
13 Application Scope: Stainless steel coiled tubes is widely used in oil drilling, shipbuilding, aerospace and petrochemical oil refining equipment, spiral wound heat exchanger and chemical industry of cold treatment, gas transmission pipeline, fluid pipeline, steam insulation pipe cable, stainless steel heat tracing coiled tubes, high pressure fluid pipeline, stainless steel thermal insulation pipe cable, anticorrosive stainless steel pipe cable and umbilical cord protected by pvc sheath pipe and cable industries.


1 1/4" ASTM A269 316L Seamless Stainless Steel Coils 0
