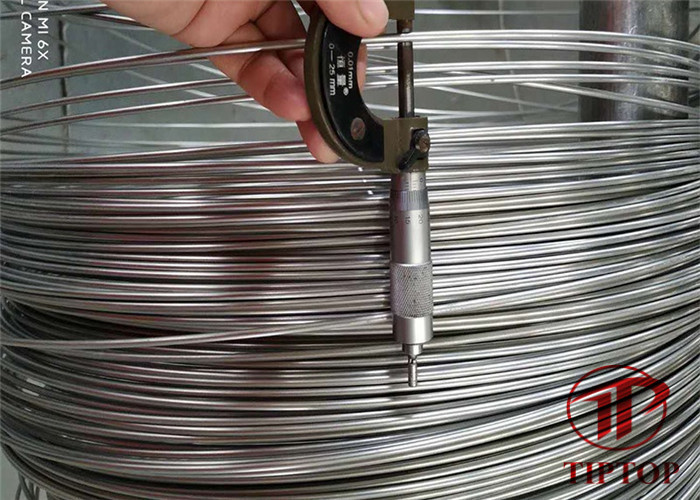

Control Line Incoloy 625 Seamless Stainless Steel Coils
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T, L/C | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO | Model Number: | 1 / 2 |
Detail Information |
|||
Material: | 304L | Standard: | ASTM A269 |
---|---|---|---|
Length: | According To The Sizes | Processing: | Bending, Welding, Cutting |
OD: | 1/2" | Thickness: | 0.049" |
High Light: | 304L ASTM A269 Control Line,1/2" 304L ASTM A269 Control Line,0.049" 304L ASTM A269 Control Line |
Product Description
Coiled control line tubes is available in a range of different product forms depending on the customer requirements. We manufacture seam welded and redrawn, seam welded and floating plug redrawn and seamless tube products. The standard grades are 304L, 316L, alloy 825 and alloy 625. Other grades of stainless steel in duplex and superduplex and nickel alloy are available on request. Tubing can be supplied in the annealed or cold worked condition.
• Welded and drawn tubing.
• Welded and floating plug drawn tubing.
• Diameter from 3mm (0.118”) to 25.4mm (1.00”) OD.
• Wall thickness from 0.5mm (0.020”) to 3mm (0.118”).
• OD tolerance +/- 0.005” (0.13mm) and +/- 10% wall thickness.
Other tolerances are available on request.
• Coil lengths up to 1500m (5,000ft) without orbital joints depending on product dimensions.
• Coil lengths up to 13,500m (45,000ft) with orbital joints.
• Encapsulated, PVC coated or bare line tubing.
• Available on wooden or steel drums.
Seamless control lines are used in SCSSV, Chemical Injection, and Advanced Well Completions. Seamless tubes provide another tubing solution for our customer's complex well designs. The most common uses for Seamless line tend to be shorter length applications whereby no orbital welds are required.
Application:
Down hole tubes
Subsea umbilical’s
Process constructions
General control system
Steam supply lines
Gas transport lines
Instrumentation
Quality Control:
Hydrostatic test for each coil and conform to ASTM standards and requested specifications. The specification and length per coil can be customized according to customers’ requirements.
OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
3/16" | 0.02,0.028,0.035,0.049 | ||||
1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
* OD: Up to 1 inch |
