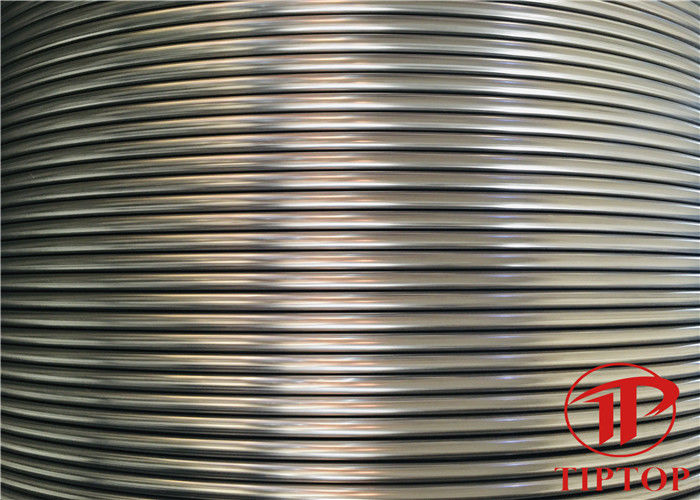

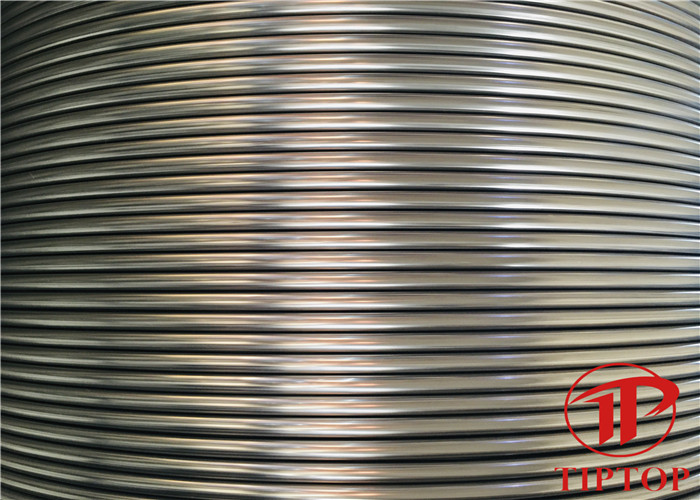

1 / 4 * 0.049 SSSV ASTM B704 SS Steel Control Line Tubing

Product Description

1 / 4 * 0.049 Inconel 625 Stainless Steel Control Line Tubing SSSV ASTM B704

Inconel 625 is a nickel-base alloy used both for its high strength and outstanding aqueous corrosion resistance. The strength of alloy 625 is primarily a solid solution effect from molybdenum and columbium. Alloy 625 has excellent weldability and is frequently used to weld AL-6XN® alloy. Matching filler metals are also used to join dissimilar metals.

Instructions for 1/4”Hydraulic control line

1/4”Hydraulic control line, mainly used for the control of downhole ety valve and gas release valve of cable packer in oil and gas wells. The 1/4 “hydraulic control tubeline is connected to the downhole ety valve and gas valve, and the on-off pressure of the oil and gas well downhole ety valve and the gas release valve through the cable packer are controlled by ground pressure. After the set pressure is reached, the oil and gas well is downhole. The ety valve and the gas release valve passing through the cable packer are opened at the same time. At this time, the oil and gas well can be normally produced, and the gas separated by the electric submersible pump can also be discharged from the annulus through the gas release valve. Then, the pressure of the control tubeline is released, so that the downhole ety valve of the oil and gas well and the gas release valve passing through the cable packer are closed at the same time, and the oil and gas well oil tubes and annulus circulation channels are all blocked, so that the ety of the oil well can be ensured. Of course, the 1/4” hydraulic control line can also be used alone for the control of downhole ety valves.

It can also be used for pressure control of surface ety valves and other surface valves, and various connection tubelines of large-scale equipment instrumentation control systems for oil and gas field drilling and oil production.

Size Chart

Features:

High creep-rupture strength

Oxidation resistant to 1800°F

Good fatigue resistance

Excellent weldability

Outstanding resistance to chloride pitting and crevice corrosion

Immune to chloride ion stress corrosion cracking

Resistant to seawater under both flowing and stagnant conditions and under fouling

Applications:

Aircraft ducting systems

Jet engine exhaust systems

Engine thrust-reverser systems

Bellows and expansion joints

Turbine shroud rings

Flare stacks

Seawater components

Chemical process equipment handling mixed acids both oxidizing and reducing.
