60-120 Mpa Seamless Hydraulic Control Line Tube Customized Length
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 304 |
Detail Information |
|||
Product Name: | 1/4" 304L Seamless Hydraulic Control Line Tube For Oil & Gas | Standard: | ASTM A269 |
---|---|---|---|
Material: | Austenitic Steel 304L (UNS S30403) | Processing: | Bending-Welding-Cutting |
OD: | 1/16"-1" | Thickness: | 0.02"-0.083" |
High Light: | 304L Hydraulic Control Line Tube,1/4" Hydraulic Control Line Tube,ASTM Gas Control Line Tube |
Product Description
Tiptop provides precision control line tubing for hydraulic and chemical injection of onshore and subsea oil and gas wells. The control line tubing is manufactured in a number of different product forms including seam welded and redrawn, seam welded and floating plug redrawn and seamless depending on the customer’s specification and application.
Size Chart of 304L Seamless Hydraulic Control Line Tube
OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8" | 0.02,0.028,0.035 |
Austenitic steel 304L (UNS S30403) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60~120 Mpa | Customized |
3/16" | 0.02,0.028,0.035,0.049 | ||||
1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
OD: Up to 1 inch |

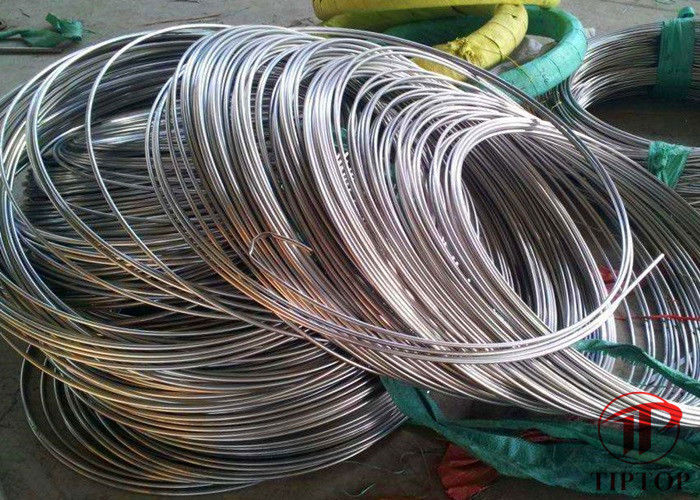

1/4” 304L seamless hydraulic control line tube used in oil and gas wells
1/4” 304L seamless hydraulic control line tube, mainly used for the control of downhole ety valve and gas release valve of cable packer in oil and gas wells. 1/4” 304L seamless hydraulic control line tube is connected to the downhole ety valve and gas valve, and the on-off pressure of the oil and gas well downhole ety valve and the gas release valve through the cable packer are controlled by ground pressure. After the set pressure is reached, the oil and gas well is downhole. The ety valve and the gas release valve passing through the cable packer are opened at the same time. At this time, the oil and gas well can be normally produced, and the gas separated by the electric submersible pump can also be discharged from the annulus through the gas release valve. Then, the pressure of the control tubeline is released, so that the downhole ety valve of the oil and gas well and the gas release valve passing through the cable packer are closed at the same time, and the oil and gas well oil tubes and annulus circulation channels are all blocked, so that the ety of the oil well can be ensured. Of course, the 1/4” hydraulic control line can also be used alone for the control of downhole ety valves.
It can also be used for pressure control of surface ety valves and other surface valves, and various connection tubelines of large-scale equipment instrumentation control systems for oil and gas field drilling and oil production.
Chemical Composition of 304L Seamless Hydraulic Control Line Tube
Chemical Composition,% | |||||||||||
Material | Standard | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu |
304 | ASTM A269 | 0.080 | 2.00 | 0.045 | 0.030 | 1.00 | 8.0-11.0 | 18.0-20.0 | ~ | ~ | ~ |

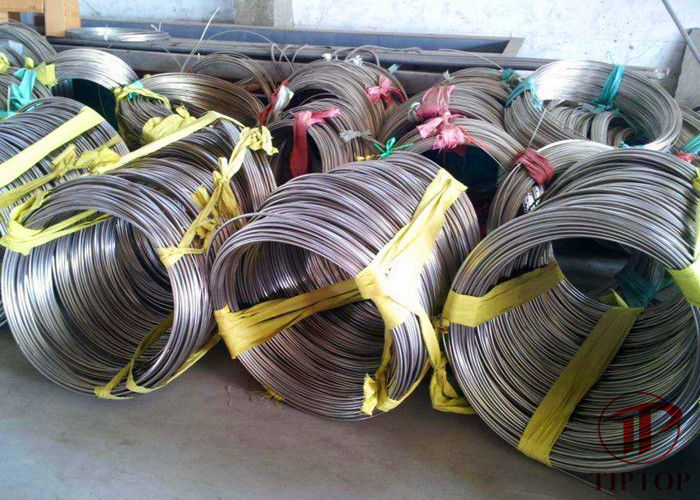

Packaging standard of 304L Seamless Hydraulic Control Line Tube:
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
