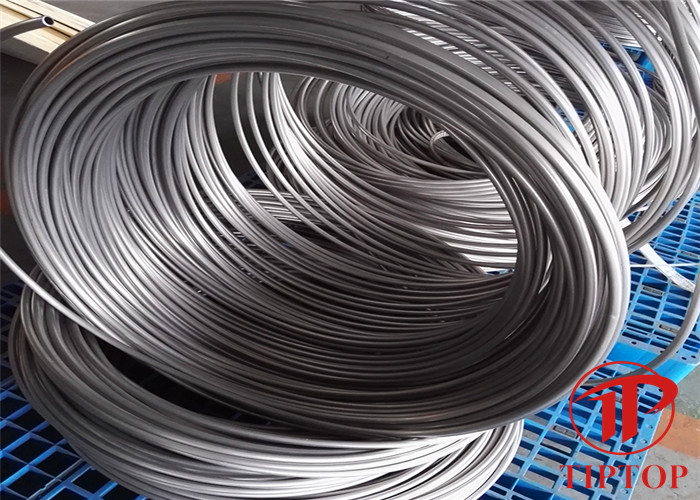

3/16 Alloy 825 ASTM B704 Stainless Coiled Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 304 |
Detail Information |
|||
Material: | 304L | Technique: | Cold Drawn |
---|---|---|---|
Standard: | ASTM A623 | Processing Type: | Seamless & Welded |
OD: | 1/8 | Thickness: | 0.025 |
High Light: | 304L Weled Control Line,ASTM A623 Downhole control line,304L 0.025" Downhole control line |
Product Description
Tiptop can supply various sizes of austenitic 304L stainless steel tube as shown below:
OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
3/16" | 0.02,0.028,0.035,0.049 | ||||
1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
* OD: Up to 1 inch |
Hydrostatic test for each coil and conform to ASTM standards and requested specifications.
The specification and length per coil can be customized according to customer’s requirements.
TIPTOP manufactures precision control line tubing for hydraulic and chemical injection of onshore and subsea oil and gas wells. The control line tubing is manufactured in a number of different product forms including seam welded and redrawn, seam welded and floating plug redrawn and seamless depending on the customer’s specification and application. Our control line tubing products have been successfully used in some of the most aggressive subsea and downhole conditions and we have a long proven track record of supplying products that meet the strict quality requirements of the Oil & Gas sectors.
Austenitic stainless steel has good corrosion resistance, high temperature oxidation resistance, good low temperature performance and excellent mechanical and processing performance. Therefore, it is widely used in chemical, petroleum, power, nuclear engineering, aerospace, marine, pharmaceutical, light industry, textile and other sectors. Its main purpose is to prevent corrosion and rust. Corrosion resistance of stainless steel mainly depends on the surface passivation film. If the film is incomplete or defective, stainless steel will still be corroded. Pickling and passivation are usually carried out in engineering to make the corrosion resistance potential of stainless steel more developed. Stainless steel surface cleaning, pickling and passivation, in addition to maximize corrosion resistance, but also to prevent product pollution and aesthetic effect.
304L stainless steel control line tubing is a very common stainless steel tubing. Its corrosion resistance is better than 201 and 202. Due to its corrosion resistance and high temperature resistance and good processing performance, it is widely used in mechanical equipment, sanitary ware, fluid transport, chemical instruments, furniture decoration industry and food industry. Though the price of 304L is higher than that of 304 stainless steel, the carbon content of 304L is lower than 0.03%, which has good welding performance.
