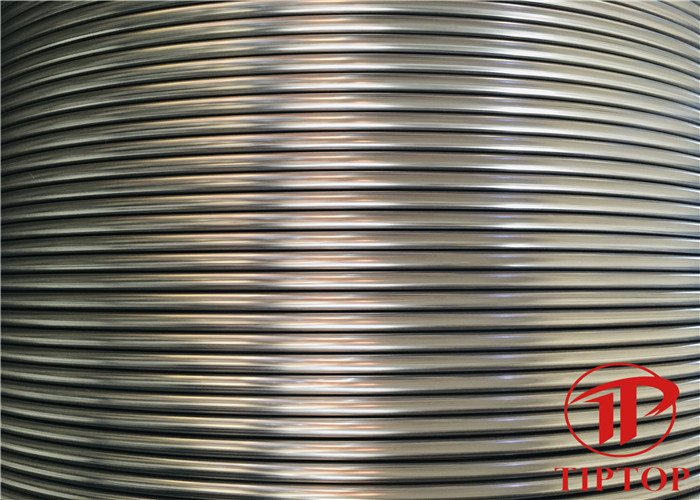

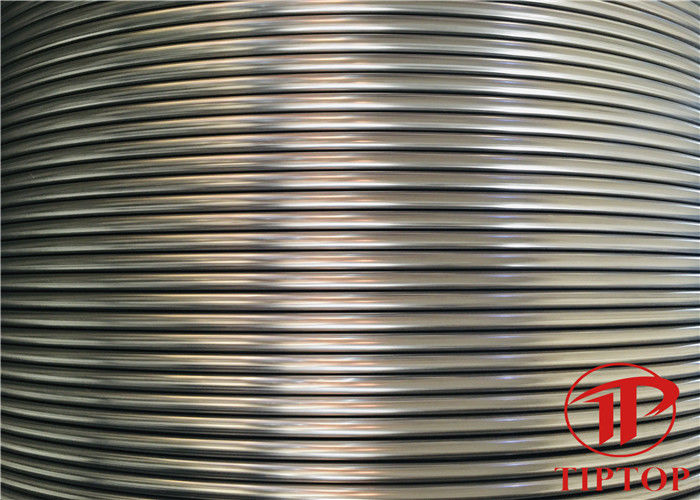

1/8 Duplex 2205 Bright Annealed Chemical Injection line

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Seaworthy wooden cases or wooden reels Delivery Time : 10 days
Payment Terms : T/T Supply Ability : 1000 tons per month
Place of Origin: CHINA Brand Name: TIPTOP
Certification: ISO Model Number: 1 / 8

Detail Information

Material: Duplex 2205 Standard: ASTM A789
Length: According To The Sizes Processing: Bending, Welding, Cutting
OD: 1/8" Thickness: 0.035"
High Light:

1/8 Duplex 2205 Chemical Injection Tubing


0.035" Bright Annealed Chemical Injection line


A789 0.035" Chemical Injection line

Product Description

1 / 8 ASTM A789 Downhole Chemical Injection Tubing Duplex 2205 Bright Annealed


TIPTOP manufactures precision control line tubing for hydraulic and chemical injection of onshore and subsea oil and gas wells. The control line tubing is manufactured in a number of different product forms including seam welded and redrawn, seam welded and floating plug redrawn and seamless depending on the customer’s specification and application.


Our production process is exquisite, the technology is mature, the product conforms to the international standard, already obtained the home and abroad customer's high recognition.Our control line tubing material has low content of sulfur and phosphorus, uniform structure, and suitable mechanical properties. All mechanical properties are in accordance with ASTM Standard. Using high quality raw materials and laser welding technology, our products have the characteristics of high strength, high plasticity, low cycle fatigue performance, high efficiency, low cost, safety and environmental protection.



Chemical Composition

Material UNS Standard C Mn P S Si Ni Cr Mo N Cu
2205 S32205 ASTM A789 0.030 2.00 0.030 0.020 1.00 4.5-6.5 22.0-23.0 3.0-3.5 0.14-0.20 ...
2507 S32750 0.030 1.20 0.035 0.020 0.80 6.0-8.0 24.0-26.0 3.0-3.5 0.24-0.32 0.50


Size Chart:

OD Wall
Materials Standard Working Pressure
1/8" 0.02,0.028,0.035 Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)
ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704
60-120 Mpa Customized
3/16" 0.02,0.028,0.035,0.049
1/4" 0.02,0.028,0.035,0.049,
* OD: Up to 1 inch


Hydrostatic test for each coil and conform to ASTM standards and requested specifications.


The specification and length per coil can be customized according to customer

1/8 Duplex 2205 Bright Annealed Chemical Injection line 0

2205 is a duplex (austenitic-ferritic) stainless steel containing about 40 - 50% ferrite in the annealed condition. 2205 has been a practical solution to chloride stress corrosion cracking problems experienced with 304/304L or 316/316L stainless.


Duplex SS 2205 Corrosion-resistant control line tubing is one of our most competitive products, we have rich processing and supply experience. Our products are standardized and international, complying to ASTM A789 and all relevant industry standards, and have been exported to overseas markets in large quantities for many years.



Safety critical hydraulic control of sub surface safety valves

Subsea control lines

Downhole control and monitoring in intelligent well completions

Chemical injection using acids, surfactants and methanol

Coiled control line tubing is also used in onshore or topside hydraulic and instrumentation systems where the longer coils result in fewer connections and can increase the integrity of the overall system.


We have a mature quality control system to ensure a 100% qualified delivery rate:

Chemical composition analysis

Tensile testing




Hydrostatic testing

Eddy current testing


’s requirements.
