1/8 Seamless SS 316L Control Line Tubing

Minimum Order Quantity : 1 reel Price : USD/EURO/RMB
Packaging Details : Seaworthy wooden cases or wooden reels Delivery Time : 10 days
Payment Terms : T/T, L/C Supply Ability : 1000 tons per month
Place of Origin: CHINA Brand Name: TIPTOP
Certification: ISO Model Number: 1 / 8

Detail Information

Material: 316L Standard: ASTM A269
Length: According To The Sizes Processing: Bending, Welding, Cutting
OD: 1/8" Thickness: 0.028"
High Light:

ss316l 1/8" 0.028" Coiled Tubing


UNSS31603 Downhole Coiled Tubing


1/8 UNSS31603 Control Line Tubing

Product Description

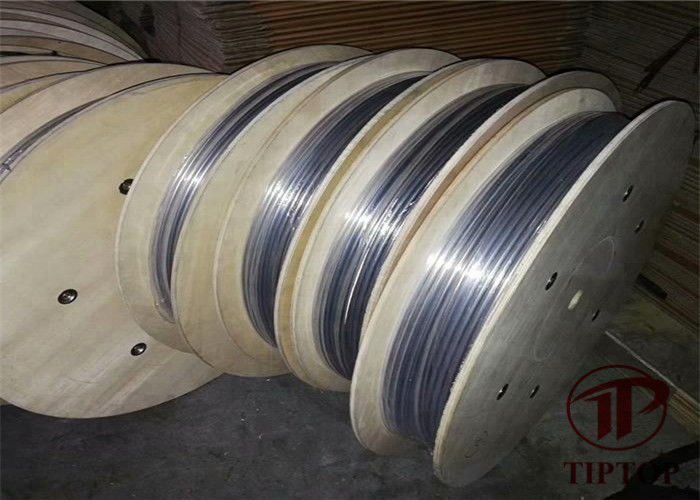

1 / 8 * 0.028 Seamless Stainless Steel Coiled Control Line Tubing 316L


Seamless control lines are used in SCSSV, Chemical Injection, and Advanced Well Completions. Seamless tubes provide another tubing solution for our customer's complex well designs. The most common uses for Seamless line tend to be shorter length applications whereby no orbital welds are required.




316L stainless steel (UNS S31603) has been widely used in industry due to its excellent corrosion resistance. As one of the most commonly used coiled tubing materials, our 316L tube has mature technology and exquisite workmanship. Starting from the raw material, we strictly control the performance of steel. Our products meet ASTM A269 and all related industry standards. Our tubing is one continuous length of tubing, completely free of any welded joints or seams. Each coil is 100% hydrostatic tested. Eddy current testing (ET) is performed on the longitudinally seam welded tubing. Radiographic testing and ET are performed on material in the final heat treated condition. Yield pressure hydrostatic testing is performed on the heat treated tubing at final size.


Our products have complete specifications and can meet all working conditions. The outer diameter range of 316L control line tubing we supply is from 1/8" to 1". All dimensions and corresponding parameters are listed in the table below, we can also customize it according to customers' requirement details.


OD Wall
Materials Standard Working Pressure
1/8" 0.02,0.028,0.035 Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)
ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704
60-120 Mpa Customized
3/16" 0.02,0.028,0.035,0.049
1/4" 0.02,0.028,0.035,0.049,
* OD: Up to 1 inch


Hydrostatic test for each coil and conform to ASTM standards and requested specifications.


The specification and length per coil can be customized according to customer’s requirements.





Down hole tubes

Subsea umbilical’s

Process constructions

General control system

Steam supply lines

Gas transport lines
