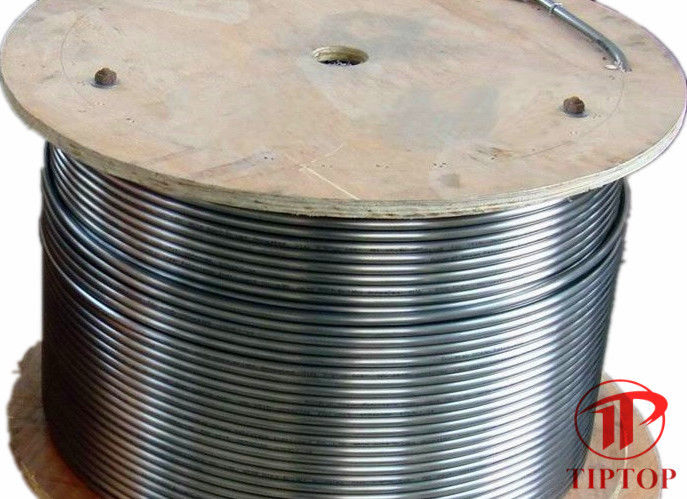

ISO Duplex 2507 ASTM Stainless Steel Capillary Tubes
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
| Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
| Place of Origin: | CHINA | Brand Name: | TIPTOP |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | 304,316,625,825,2205,2507 |
|
Detail Information |
|||
| Material: | 304,316,625,825,2205,2507 | Standard: | ASTM A269,B704, A789 |
|---|---|---|---|
| Length: | According To The Sizes | Processing: | Bending, Welding, Cutting |
| OD: | 1/16"~1" | Thickness: | 0.02"~0.083" |
| High Light: | Alloy Steel Downhole Coiled Tubing,205Mpa Downhole Coiled Tubing,Downhole Capillary Coiled Tubing |
||
Product Description
We are professional hydraulic control lines, Stainless Steel control line Tubes/tubings, Stainless Steel coiled control line Tubes/tubings factory from china
The outer diameter of hydraulic control lines, Stainless Steel control line Tubes/tubing that we could do is in 1/8", 1/4", 1/2", 3/8", 3/4", 5/8",
The wall thickness hydraulic control lines, Stainless Steel control line Tubes/tubing that we could do is in 0.028", 0.035", 0.049", 0.065", 0.083"
The material grade of hydraulic control lines, Stainless Steel control line Tubes/tubings that we could do is in TP 304, TP 304L, TP316, TP316L, UNS S31603, Incoloy 825, 2205, 2507, UNS N08825, inconel 625, UNS N06625
Our hydraulic control lines, Stainless Steel control line Tubes/tubing are widely used in a numerous petrochemical applications, including:
Chemical Composition:
| Grade | C | Si | Mn | P | S | Cr | Ni |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | ≤18.0-20.0 | ≤8.0-10.5 |
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | ≤18.0-20.0 | ≤8.0-10.5 |
| Grade | C | Si | Mn | P | S | Cr | Ni | others |
| SUS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0~18.0 | 10.0~14.0 | Mo:2~3 |
| SUS316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 16.0~18.0 | 12.0~15.0 | Mo:2~3 |
Mechanical Properties&Hardness:
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | Hv |
| 304 | ≥205 | ≥520 | ≥40 | ≤200 |
| 304L | ≥175 | ≥480 | ≥40 | ≤200 |
| Grade | YS(Mpa) | TS(Mpa) | EL(%) | Hv |
| SUS316 | ≥205 | ≥520 | ≥40 | ≤200 |
| SUS316L | ≥175 | ≥480 | ≥40 | ≤200 |
Inspection and Tests
We inspect all lots of tubing before shipment to ensure that every aspect of the customer's order has been met.
Our in-house inspection and tests capabilities include:
Chemical Composition Test
Visual inspection
Dimensional inspection
Surface roughness testing
Eddy Current testing
Hydrostatic pressure testing
Destructive mechanical testing:
- Yield Strength
- Tensile Strength
- Elongation
- Hardness testing
- bending, flattening, and flaring
All shipments include a full Test Certificate showing all required test results and verifying compliance with the order requirements.
