2205 Duplex Stainless Steel Capillary Coiled Tubing

Minimum Order Quantity : 1 reel Price : USD/EURO/RMB
Packaging Details : WOODEN REEL +WOODEN CASE Delivery Time : ONE WEEL
Payment Terms : L/C, T/T, Supply Ability : 1000 TONS PER MONTH
Place of Origin: China Brand Name: Tiptop
Certification: ISO 9001 Model Number: 2205

Detail Information

Material: 2205 Duplex Technique: Cold Drawn
Standard: ASTM A789 Processing Type: Welded
OD: 1/8~1/2 Thickness: 0.02~0.083
High Light:

Tiptop 2205 Duplex capillary coil


ASTM A789 stainless Steel Coiled Line


ASTM A789 Coiled Line

Product Description

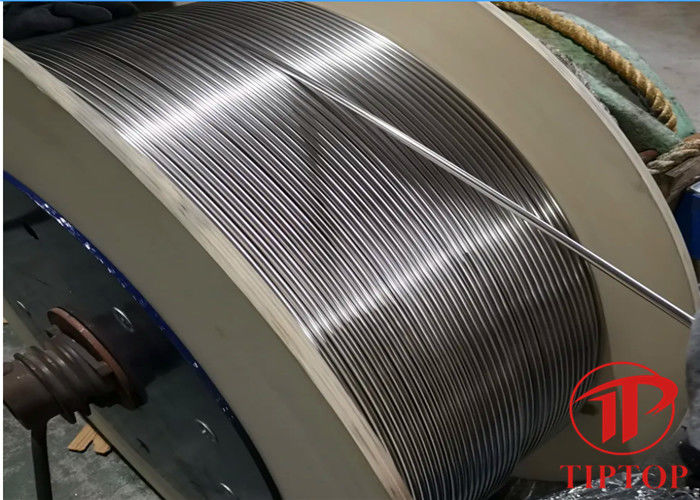

2205 Duplex Stainless Steel Capillary Coiled Tubing High Efficiency Tubing


2205 duplex stainless steel is a kind of stainless steel in which the proportion of ferrite phase and austenite phase in solid quenching is half and half, which is short for 2205 stainless steel. The actual phase ratio is ferritic 45~55% and austenite 55~45% accordingly. Excellent performance of 2205 duplex stainless steel depends on the appropriate proportion of the two-phase structure to ensure. 2205 duplex stainless steel tubes have excellent mechanical properties and corrosion resistance, as well as good weldability, and are widely used in the petroleum and natural gas industry, Marine engineering, chemical industry and other industries.


Tiptop offers a variety of duplex stainless steel, super duplex stainless steel welded and seamless tubing, depending upon the properties the tubing is required to exhibit. Other alloys and sizes are also available upon request. Duplex stainless steels (named for their austenite and ferrite compositions), has greater yield strength than austenitic stainless steel.


Standard: ASTM-A 789 Standard specification for seamless and welded ferretic/austenitic stainless steel tubing for general service. This specification covers various grades of duplex stainless steels.


Chemical Composition

Grade C Mn P S Si Ni Cr Mo N Cu
S31803 (2205) 0.030 2.000 0.030 0.020 1.000 4.5-6.5 21.0-23.0 2.5-3.5 0.08-0.20
S322505 (2205) 0.030 2.000 0.030 0.020 1.000 4.5-6.5 22.0-23.0 3.0-3.5 0.14-0.20
S32750 (2507) 0.030 1.200 0.035 0.020 0.800 6.0-8.0 24.0-26.0 3.0-5.0 0.24-0.32 0.500



Duplex 2205 Stainless Steel Coiled Control Line Tubing Features

Close dimensional tolerances

Enhanced mechanical properties

Superior surface finish

High cleanness of inside surface

Controlled ovality, eccentricity


Delivery condition

Cold worked

Bright annealed

Annealed and polished




Control line

Chemical injection line

Electrical line

Multi-line flat pack

Hydraulic line


Size Chart

OD Wall
Materials Standard Working Pressure
1/8" 0.02,0.028,0.035 Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)
ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704
60-120 Mpa Customized
3/16" 0.02,0.028,0.035,0.049
1/4" 0.02,0.028,0.035,0.049,
* OD: Up to 1 inch
