Home ProductsESP Cable Protectors2-3/8 Inch -7 Inch ESP Cable Protectors Round & Flat High Strength

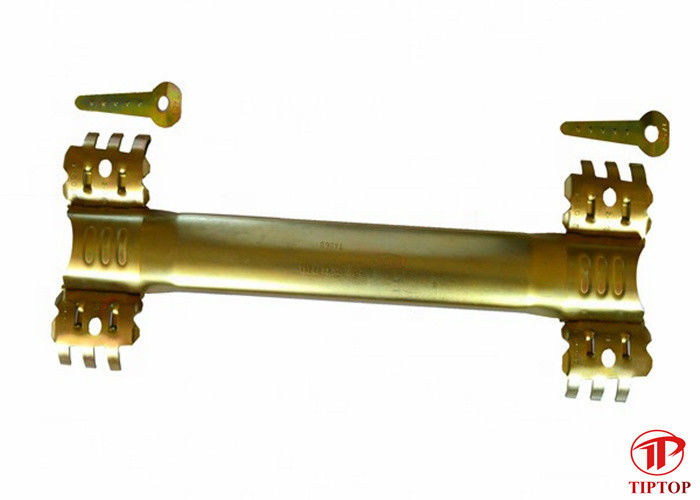

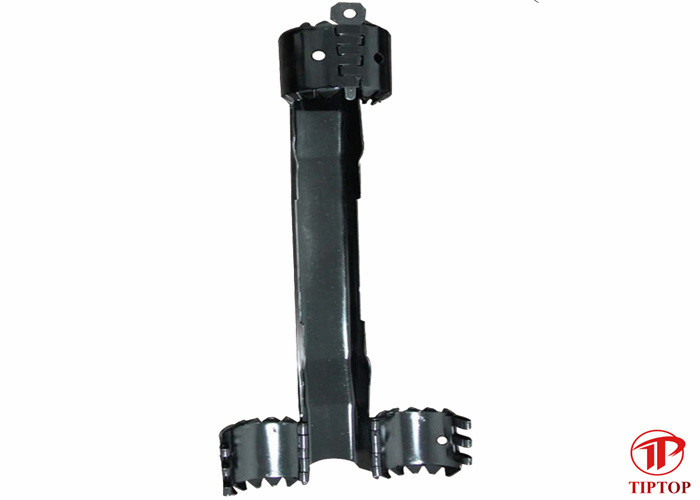

2-3/8 Inch -7 Inch ESP Cable Protectors Round & Flat High Strength
2-3/8 Inch -7 Inch ESP Cable Protectors Round & Flat High Strength 2-3/8 Inch -7 Inch ESP Cable Protectors Round & Flat High Strength
Contact Now

2-3/8 Inch -7 Inch ESP Cable Protectors Round & Flat High Strength

Minimum Order Quantity : 10 pcs Price : USD/EURO/RMB
Packaging Details : wooden cases Delivery Time : one week
Payment Terms : L/C, T/T Supply Ability : 1000 tons per month
Place of Origin: China Brand Name: Tiptop
Certification: ISO9001 Model Number: 2-3/8"

Detail Information
Product Name: 2-3/8"-7" ESP Cable Protectors Round&Flat Material: Carbon Steel Or Stainless Steel
Tube Size: 2-3/8"~7" Clamp Type: Casted Or Punching
Cable Type: Round&Flat Cable Size: 16-19mm SQUARE
High Light:

7 Inch ESP Cable Protectors

,

2-3/8 Inch ESP Cable Protectors

,

2-3/8 Inch cable protection cover

Product Description

2-3/8"-7" ESP Cable Protectors Round&Flat



The main function of the cross-coupling protector is to fix and protect the downhole cables on the outer wall of the tubing, especially to prevent the cable from eccentric wear at the joint position. The specifications and models can be customized according to the tubing size, and the material can be made of different materials according to the medium.



Features:

  • All-cast construction; ensures strength and reliability

  • One piece design without separate parts or pins

  • Smooth streamline design; reduces collision hanging risk

  • Optimized cable slot; considerate layout

  • Quick and reliable installation; less than 30 seconds



Specifications:



NO.

Description

Tube size

Cable type

Cable size

1

Cable Protector 2-3/8R6-8

2-3/8"

Round

Φ6-8mm

2

Cable Protector 2-3/8F11/34

2-3/8"

Flat

11mm SQUARE

3

Cable Protector 2-3/8R32-34

2-3/8"

Round

Φ32-34mm

4

Cable Protector 2-7/8R6-8

2-7/8"

Round

Φ6-8mm

5

Cable Protector 2-7/8R30-33

2-7/8"

Round

Φ30-33mm

6

Cable Protector 2-7/8R34-37

2-7/8"

Round

Φ34-37mm

7

Cable Protector 2-7/8F11/34

2-7/8"

Flat

11mm SQUARE

8

Cable Protector 2-7/8F16-19/56

2-7/8"

Flat

16-19mm SQUARE

9

Cable Protector 2-7/8F16-19/70

2-7/8"

Flat

16-19mm SQUARE

10

Cable Protector 3-1/2R6-8

3-1/2"

Round

Φ6-8mm

11

Cable Protector 3-1/2R30-33

3-1/2"

Round

Φ30-33mm

12

Cable Protector 3-1/2R34-37

3-1/2"

Round

Φ34-37mm

13

Cable Protector 3-1/2R38-42

3-1/2"

Round

Φ38-42mm

14

Cable Protector 3-1/2F11/34

3-1/2"

Flat

11mm SQUARE

15

Cable Protector 3-1/2F16-19/60

3-1/2"

Flat

16-19mm SQUARE

16

Cable Protector 3-1/2F19-23/70

3-1/2"

Flat

19--23mm SQUARE

17

Cable Protector 4-1/2R6-8

4-1/2"

Round

Φ6-8mm

18

Cable Protector 4-1/2R34-37

4-1/2"

Round

Φ34-37mm

19

Cable Protector 4-1/2R38-42

4-1/2"

Round

Φ38-42mm

20

Cable Protector 4-1/2F11/34

4-1/2"

Flat

11mm SQUARE

21

Cable Protector 4-1/2F16-19/60

4-1/2"

Flat

16-19mm SQUARE

22

Cable Protector 4-1/2F19-23/60

4-1/2"

Flat

19--23mm SQUARE

23

Cable Protector 5-1/2R6-8

5-1/2"

Round

Φ6-8mm

24

Cable Protector 5-1/2R34-37

5-1/2"

Round

Φ34-37mm

25

Cable Protector 5-1/2R38-42

5-1/2"

Round

Φ38-42mm

26

Cable Protector 5-1/2F11/34

5-1/2"

Flat

11mm SQUARE

27

Cable Protector 5-1/2F11-16/56

5-1/2"

Flat

11-16mm SQUARE

28

Cable Protector 5-1/2F16-19/70DUAL

5-1/2"

Flat

19--23mm SQUARE

29

Cable Protector 7R6-8

7"

Round

Φ6-8mm

30

Cable Protector 7F11/34

7"

Flat

11mm SQUARE



2-3/8 Inch -7 Inch ESP Cable Protectors Round & Flat High Strength 0



FAQ



Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
