Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|

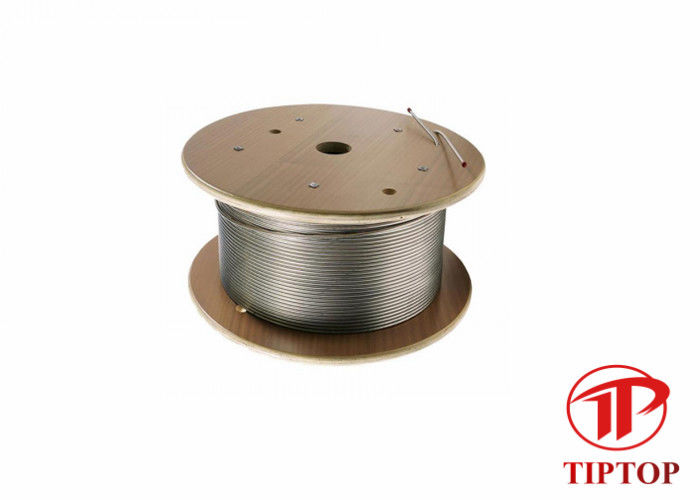

Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO | Model Number: | 1 / 8 |
Detail Information |
|||
Material: | 304L | Standard: | ASTM A269 |
---|---|---|---|
Length: | According To The Sizes | Processing: | Bending, Welding, Cutting |
OD: | 1/8" | Thickness: | 0.035" |
Highlight: | 0.035" 1/8 Oilfield Coil Tubing,ASTM A269 Stainless Coiled Tubing,0.035" ASTM A269 Coiled Tubing |
Product Description
Tiptop control line tubing products have been successfully used in some of the most aggressive subsea and downhole conditions and we have a long proven track record of supplying products that meet the strict quality requirements of the Oil & Gas sectors.
Improvements in the technology for the enhanced exploitation of oil and gas fields has increasingly required the use of long continuous lengths of stainless steel and nickel alloy tubing for hydraulic control, instrumentation, chemical injection, umbilical and flowline control applications. The benefits of this tubular technology have resulted in reduced operating costs, improved recovery methods and reduced capital expenditure by connecting downhole valves and chemical injection with remote and satellite wells to a fixed or floating central operating platform.
1/8" Hydraulic control line, also called capillary tube, mainly used for oil and gas field underground capillary pressure measurement. The temperature and pressure sensor (also known as a downhole permanent pressure gauge, generally a nitrogen cylinder) and the production string of the oil and gas well are run into the oil and gas layer several kilometers deep, and then the 1/8 “hydraulic control line (capillary) The temperature and pressure sensors are always connected to the surface of the fluorescent display, so that the downhole temperature and pressure can be transmitted to the surface through the capillary tube, and the instantaneous temperature and pressure at the downhole oil and gas layer can be read out through the fluorescent screen of the surface display, thereby realizing the downhole temperature and pressure,so as to realize the real-time monitoring of downhole temperature and pressure. It can also be used for pressure control of surface ety valves and other surface valves, and various connection tubelines of large-scale equipment instrumentation control systems for oil and gas field drilling and oil production.
Our products have complete specifications and can meet all working conditions. Our outer diameter range of 304L tubing is from 1/8" to 1/2". All dimensions and corresponding parameters are listed in the table below, we can also customize it according to customers' special requirements.
OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
3/16" | 0.02,0.028,0.035,0.049 | ||||
1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
* OD: Up to 1 inch |
