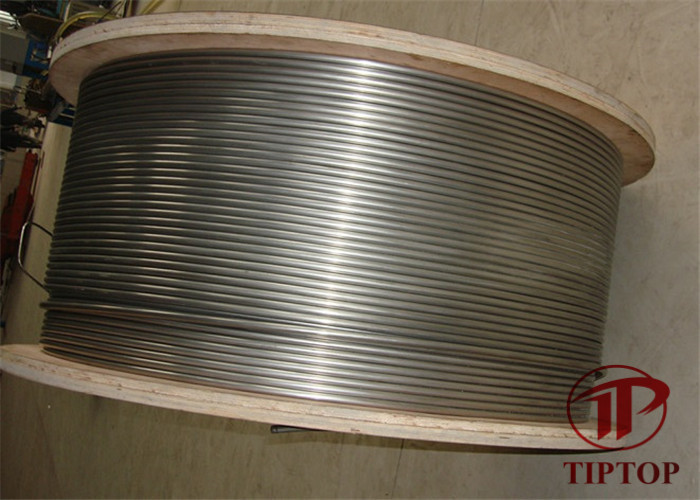

60-120 Mpa Seamless Hydraulic Control Line Tube Customized Length
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO | Model Number: | 3 / 16 |
Detail Information |
|||
Material: | Alloy 625 | Standard: | ASTM B704 |
---|---|---|---|
Length: | According To The Sizes | Processing: | Bending, Welding, Cutting |
OD: | 3/16" | Thickness: | 0.028" |
High Light: | Alloy 625 Control Line Tubing,3/16" Alloy 625 Coiled Tubing Pipe,3/16" 0.028" Hydraulic Control Line |
Product Description
Tiptop is specialized in providing alloy steel coiled tube, alloy steel control line, alloy steel continuous tube.
Seamless control lines are used in SCSSV, Chemical Injection, and Advanced Well Completions. Seamless tubes provide another tubing solution for our customer's complex well designs. The most common uses for Seamless line tend to be shorter length applications whereby no orbital welds are required.
Type 625 Alloy (UNS Designation NO6625) is an austenitic nickel-based super alloy possessing excellent resistance to oxidation and corrosion over a broad range of corrosive conditions, including jet engine environments and in many other aerospace and chemical process applications. The alloy has outstanding strength and toughness at temperatures ranging from cryogenic temperature to 2000°F (1093°C). Type 625 alloy also has exceptional fatigue resistance. It derives its strength from the solid solution strengthening effects of molybdenum and columbium on the nickel-chromium matrix. Although the alloy was developed for high temperature strength, its highly alloyed composition provides a high level of general corrosion resistance to a wide range of oxidizing and non-oxidizing environments.
Size Chart:
OD |
Wall |
Materials |
Standard |
Working Pressure |
Length |
1/8" |
0.02,0.028,0.035 |
Austenitic steel 304L (UNS S30403) |
ASTM-A 269 |
60-120 Mpa |
Customized |
3/16" |
0.02,0.028,0.035,0.049 |
||||
1/4" |
0.02,0.028,0.035,0.049,0.065.0.083 |
||||
5/16" |
|||||
3/8" |
|||||
1/2" |
|||||
* OD: Up to 1 inch |
Chemical Composition:
Chemical Composition,% |
||||||||
Standard |
ASTM A269 |
ASTM A789 |
ASTM B704 |
|||||
Material |
SS 304 |
SS 304L |
SS 316 |
SS 316L |
Duplex 2205 |
Super Duplex 2507 |
Incoloy 625 |
Incoloy 825 |
UNS |
S30400 |
S30403 |
S31600 |
S31603 |
S32205 |
S32750 |
N06625 |
N08825 |
C |
0.08 |
0.035 |
0.08 |
0.035 |
0.03 |
0.03 |
0.1 |
0.05 |
Mn |
2 |
2 |
2 |
2 |
2 |
1.2 |
0.5 |
1 |
P |
0.045 |
0.045 |
0.045 |
0.045 |
0.03 |
0.035 |
0.015 |
... |
S |
0.03 |
0.03 |
0.03 |
0.03 |
0.02 |
0.02 |
0.015 |
0.03 |
Si |
1 |
1 |
1 |
1 |
1 |
0.8 |
0.5 |
0.5 |
Ni |
8.0-11.0 |
8.0-12.0 |
10.0-14.0 |
10.0-15.0 |
4.5-6.5 |
6.0-8.0 |
min 58.0 |
38.0-46.0 |
Cr |
18.0-20.0 |
18.0-20.0 |
16.0-18.0 |
16.0-18.0 |
22.0-23.0 |
24.0-26.0 |
20.0-23.0 |
19.5-23.5 |
Mo |
... |
... |
2.00-3.00 |
2.00-3.00 |
3.0-3.5 |
3.0-3.5 |
8.0-10.0 |
2.5-3.5 |
N |
... |
... |
... |
... |
0.14-0.20 |
0.24-0.32 |
... |
... |
Cu |
... |
... |
... |
... |
... |
0.5 |
... |
1.5-3.0 |
Fe |
|
|
|
|
|
|
5 |
min 22.0 |
Al |
|
|
|
|
|
|
0.4 |
0.2 |
Ti |
|
|
|
|
|
|
0.4 |
0.6-1.2 |
Cb+Ta |
|
|
|
|
|
|
3.15-4.15 |
... |
Hydrostatic test for each coil and conform to ASTM standards and requested specifications.
The specification and length per coil can be customized according to customer’s requirements.
Application:
Down hole tubes
Subsea umbilical’s
Process constructions
General control system
Steam supply lines
Gas transport lines
Instrumentation
