Austenitic UNS S32205 SS Control Line Tubing ASTM A269
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 304 |
Detail Information |
|||
Material: | TP304 | Standard: | ASTM A269 |
---|---|---|---|
Length: | According To The Sizes | Processing: | Bending, Welding, Cutting |
OD: | 1/16"~1" | Thickness: | 0.02"~0.083" |
High Light: | TP304 Steel Control Line Tubing,ASTM A269 Control Line Tubing,3/4" Steel Control Line Tubing |
Product Description
Stainless steel tubing coil have excellent high temperature resistance and corrosion resistance, compared to cooper tube, stainless tube thickness can be reduced 30% - 60%, not too thin and too thick, it is not rust and sanitary, reducing maintenance time, saving cost, easy to install and change.
Tp 304 Material consists of 18% chromium and carbon, manganese, phosphorus, sulfur, silicon and nickel in the composition. There is also the molybdenum, nitrogen, niobium and titanium addition in trace quantities. . Our 304 Stainless Steel Tubing components are of less absolute roughness which means they could be used in high precision equipment and applications.
Application:
Control line tubing in oil & gas well
Instrument tubing
Chemical injection tubing line
Pre-insulated tubing
Electric heating or steam heating tubing line
Hater tubing line

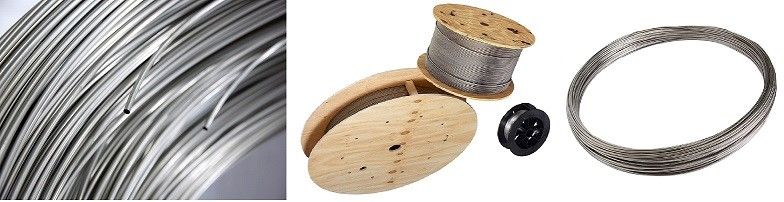

Stainless Steel Coil Tube Specification
Outside Diameter | 1/16” ~ 3/4" |
Thickness | 0. 010"~0.083” |
Grades | TP - 304,304L,316,316L |
Seamless Coil Tubing Specifications | ASTM A213 (average wall) and ASTM A269 |
Welded Coil Tubing Specifications | ASTM A249 and ASTM A269 |
Stainless Steel Coil Tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a Stainless Steel Coil Tube is manufactured according to current standards API, ASTM, and ASME.
OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
3/16" | 0.02,0.028,0.035,0.049 | ||||
1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
* OD: Up to 1 inch |
