3 / 8 * 0.049 Welded ASTM A269 304L Ss Steel Control Line Tubing

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Seaworthy wooden cases or wooden reels Delivery Time : 10 days
Payment Terms : T/T Supply Ability : 1000 tons per month
Place of Origin: CHINA Brand Name: TIPTOP
Certification: ISO Model Number: 3 / 8

Detail Information

Material: 304L Standard: ASTM A269
Length: According To The Sizes Processing: Bending, Welding, Cutting
OD: 3/8" Thickness: 0.049"
High Light:

ASTM Ss 304L Control Line Tubing


0.049" Ss 304L Coiled Tubing Pipe


ASTM A269 0.049" Control Line

Product Description

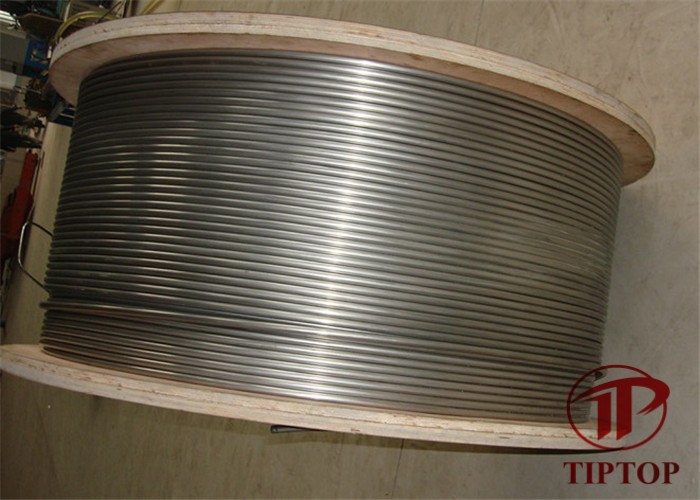

3 / 8 * 0.049 304L Welded Stainless Steel ControL Line Tubing ASTM A269



Instructions for 3/8”Hydraulic control line


The 3/8“ hydraulic control line is mainly used to inject chemicals into oil and gas wells. That is, the 3/8” hydraulic control line is connected to the downhole chemical injection valve, and the descaling is performed through the 3/8“ hydraulic control line and the chemical injection valve. Chemical agent is injected from the surface into the oil tube at a certain depth down the well, which effectively removes the scaling of the oil tube and ensures the normal production of oil and gas fields.


Our products have complete specifications and can meet all working conditions. The outer diameter range of 304L Stainless steel control line tube we supply is from 1/8" to 1/2". All dimensions and corresponding parameters are listed in the table below, we can also customize it according to customers' requirement details.


OD Wall
Materials Standard Working Pressure
1/8" 0.02,0.028,0.035 Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)
ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704
60-120 Mpa Customized
3/16" 0.02,0.028,0.035,0.049
1/4" 0.02,0.028,0.035,0.049,
* OD: Up to 1 inch


Hydrostatic test for each coil and conform to ASTM standards and requested specifications.


The specification and length per coil can be customized according to customer’s requirements.




TIPTOP manufactures precision control line tubing for hydraulic and chemical injection of onshore and subsea oil and gas wells. The control line tubing is manufactured in a number of different product forms including seam welded and redrawn, seam welded and floating plug redrawn and seamless depending on the customer’s specification and application.


It can also be used for pressure control of surface ety valves and other surface valves, and various connection tubelines of large-scale equipment instrumentation control systems for oil and gas field drilling and oil production.


Our raw materials are all from the best manufacturers in China. Using high quality raw materials and advanced laser welding technology, our products have the characteristics of high strength, high plasticity, low cycle fatigue performance, high efficiency, low cost, ety and environmental protection.


Our main production process is generally as follows: Chemical composition analysis → Tensile testing → Hardness → Flattening → Flaring → Hydrostatic testing → Eddy current testing. Based on guaranteed quality, we can provide timely delivery and best service.


3 / 8 * 0.049 Welded ASTM A269 304L Ss Steel Control Line Tubing 0
