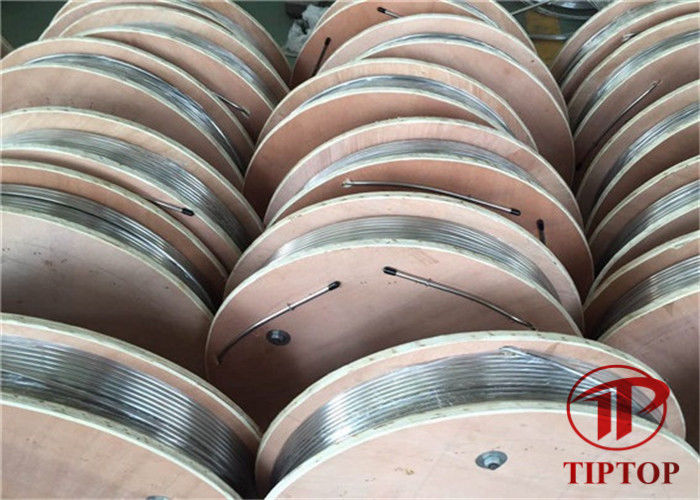

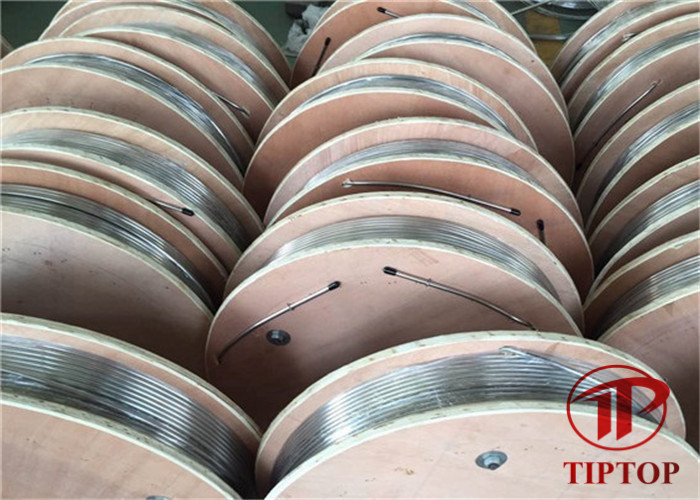

Control Line Incoloy 625 Seamless Stainless Steel Coils
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
| Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
|---|---|---|---|
| Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 1000 tons per month |
| Place of Origin: | CHINA | Brand Name: | TIPTOP |
|---|---|---|---|
| Certification: | ISO | Model Number: | 3 / 8 |
|
Detail Information |
|||
| Material: | Alloy 625 | Standard: | ASTM B704 |
|---|---|---|---|
| Length: | According To The Sizes | Processing: | Bending, Welding, Cutting |
| OD: | 3/8" | Thickness: | 0.049" |
| High Light: | ASTM B704 Seamless Control Line,3/8" Alloy 625 Hydraulic Control Line,ASTM B704 Alloy 625 control line |
||
Product Description
Tiptop is specialized in providing alloy steel coiled tube, alloy steel control line, alloy steel continuous tube.
625 nickel-chromium alloy, boasts its high strength, excellent fabricability and corrosion resistance. It can be used in the temperature range from low temperature to 980 °C (1800°F). Its strength comes from the solid solution strengthening effect of molybdenum and niobium on its nickel-chromium matrix.
Iconel 625 capillary tubes can be produced into straight, coiled, seamless, seam welded, cold redrawn and annealed.
It can be useful in wellhead components, sheathing, downhole equipment for corrosive/ sour service, reactor core, control rod components, gas pipeline, control lines, heat exchangers, oil refining, chemical processing, control and instrumentation tubes.
Size Chart:
| OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
| 1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
| 3/16" | 0.02,0.028,0.035,0.049 | ||||
| 1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
| 5/16" | |||||
| 3/8" | |||||
| 1/2" | |||||
| OD: Up to 1 inch | |||||
Chemical Composition
| Chemical Composition,% | ||||||||
| Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
| Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
| UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
| C | 0.08 | 0.035 | 0.08 | 0.035 | 0.03 | 0.03 | 0.1 | 0.05 |
| Mn | 2 | 2 | 2 | 2 | 2 | 1.2 | 0.5 | 1 |
| P | 0.045 | 0.045 | 0.045 | 0.045 | 0.03 | 0.035 | 0.015 | ... |
| S | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.015 | 0.03 |
| Si | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.5 | 0.5 |
| Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
| Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
| Mo | ... | ... | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
| N | ... | ... | ... | ... | 0.14-0.20 | 0.24-0.32 | ... | ... |
| Cu | ... | ... | ... | ... | ... | 0.5 | ... | 1.5-3.0 |
| Fe | 5 | min 22.0 | ||||||
| Al | 0.4 | 0.2 | ||||||
| Ti | 0.4 | 0.6-1.2 | ||||||
| Cb+Ta | 3.15-4.15 | ... | ||||||
Quality Control:
Hydrostatic test for each coil and conform to ASTM standards and requested specifications. The specification and length per coil can be customized according to customers’ requirements.
With high pressure and super length from 1/8” to 1/2” OD and a variety of wall thicknesses in loose bulk wound coils or reeled on wooden drum. These products are mainly applied in petroleum industry, chemical industry, shipbuilding, natural gas, and etc.
