3/8 Duplex 2205 ASTM A789 Downhole Coiled Tubing

Product Description

3 / 8 * 0.049 Duplex 2205 Capillary Coiled Control Line ASTM A789

TIPTOP produces high integrity and quality controlled stainless steel, duplex and super duplex control line tubing used in demanding subsea umbilical applications. The super duplex seam welded and redrawn product is designed to offer a lower cost alternative with equivalent performance to traditional seamless subsea control lines. Flowline control line tubing is also available for use in pipe-in-pipe bundles.

Control line tubing can be manufactured in lengths including orbital joints up to 15,000m (50,000ft) and is typically in diameters from 1/8" to 1” OD and is used for:

ety critical hydraulic control of sub surface ety valves

Subsea control lines

Downhole control and monitoring in intelligent well completions

Chemical injection using acids, surfactants and methanol

Coiled control line tubing is also used in onshore or topside hydraulic and instrumentation systems where the longer coils result in fewer connections and can increase the integrity of the overall system.

Size Chart:

Chemical Composition:

Tubing can be supplied in the annealed or cold worked condition.
• Welded and drawn tubing.
• Welded and floating plug drawn tubing.
• Diameter from 3mm (0.118”) to 25.4mm (1.00”) OD.
• Wall thickness from 0.5mm (0.020”) to 3mm (0.118”).
• OD tolerance +/- 0.005” (0.13mm) and +/- 10% wall thickness.
Other tolerances are available on request.
• Coil lengths up to 1500m (5,000ft) without orbital joints depending on product dimensions.
• Coil lengths up to 13,500m (45,000ft) with orbital joints.
• Encapsulated, PVC coated or bare line tubing.

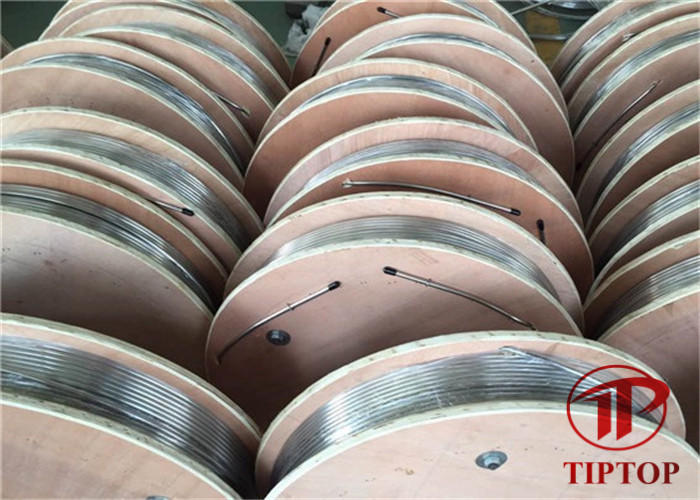

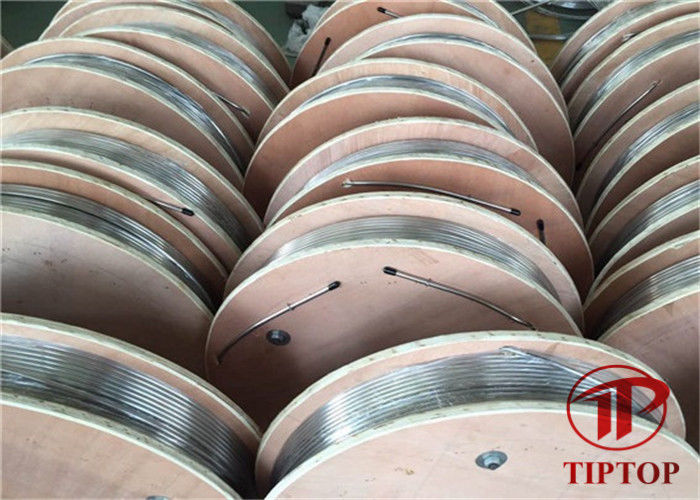

• Available on wooden or steel drums.
