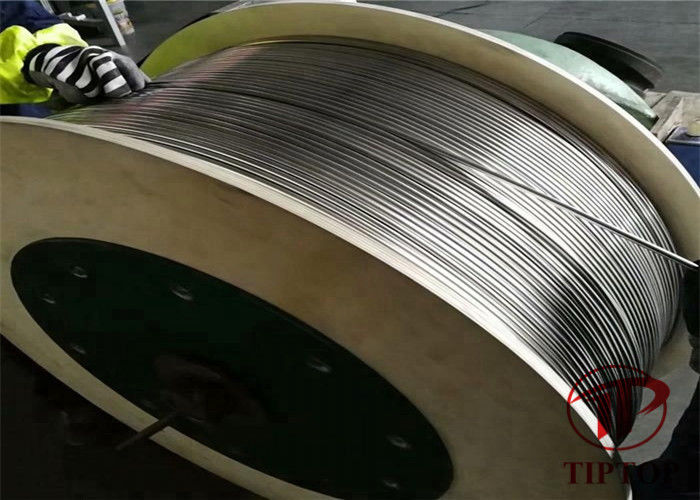

Control Line Incoloy 625 Seamless Stainless Steel Coils
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
| Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
| Place of Origin: | CHINA | Brand Name: | TIPTOP |
|---|---|---|---|
| Certification: | ISO | Model Number: | 3 / 8 |
|
Detail Information |
|||
| Material: | Duplex 2507 | Standard: | ASTM A789 |
|---|---|---|---|
| Length: | According To The Sizes | Processing: | Bending, Welding, Cutting |
| OD: | 3/8" | Thickness: | 0.035" |
| High Light: | Duplex 2507 Control Line Tubing,Duplex 2507 Downhole Coiled Tubing,ASTM A789 Duplex 2507 Coiled Tubing |
||
Product Description
Tiptop is specialized in providing a variety of duplex stainless steel, super duplex stainless steel welded and seamless tubing, depending upon the properties the tubing is required to exhibit. Other alloys and sizes are also available upon request. Duplex stainless steels (named for their austenite and ferrite compositions), has greater yield strength than austenitic stainless steel.
Seamless control lines are used in SCSSV, Chemical Injection, and Advanced Well Completions. Seamless tubes provide another tubing solution for our customer's complex well designs. The most common uses for Seamless line tend to be shorter length applications whereby no orbital welds are required.
Standard: ASTM-A 789 Standard specification for seamless and welded ferretic/austenitic stainless steel tubing for general service. This specification covers various grades of duplex stainless steels.
Chemical Composition
| Grade | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu |
| S31803 (2205) | 0.030 | 2.000 | 0.030 | 0.020 | 1.000 | 4.5-6.5 | 21.0-23.0 | 2.5-3.5 | 0.08-0.20 | … |
| S322505 (2205) | 0.030 | 2.000 | 0.030 | 0.020 | 1.000 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 | 0.14-0.20 | … |
| S32750 (2507) | 0.030 | 1.200 | 0.035 | 0.020 | 0.800 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 | 0.24-0.32 | 0.500 |
Quality Control:
Hydrostatic test for each coil and conform to ASTM standards and requested specifications. The specification and length per coil can be customized according to customers’ requirements.
| OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
| 1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
| 3/16" | 0.02,0.028,0.035,0.049 | ||||
| 1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
| 5/16" | |||||
| 3/8" | |||||
| 1/2" | |||||
| * OD: Up to 1 inch | |||||
