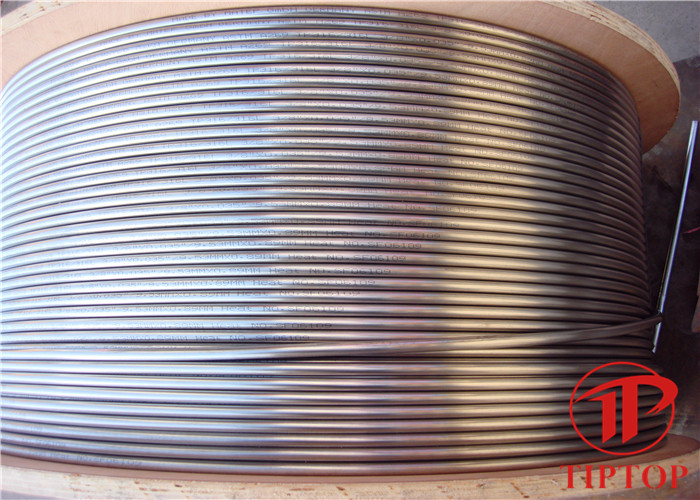

3/16 Alloy 825 ASTM B704 Stainless Coiled Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 3/8 |
Detail Information |
|||
Material: | Incoloy 825 | Technique: | Cold Drawn |
---|---|---|---|
Standard: | ASTM B704 | Processing Type: | Welded |
OD: | 3/8 | Thickness: | 0.035”, 0.049”, 0.065” |
High Light: | 304L Coiled Line Pipe,SCSSV Coiled Steel Tubings,SCSSV Coiled Tubing Pipe |
Product Description
Coiled seam welded pressure tubing in the heat- treated condition is typically used in oil and natural gas wells for applications including hydraulically actuated surface-controlled subsurface ety valves, chemical injection, and instrumentation. In these applications, it is commonly referred to as control line tubing.
The tubing is generally deployed by strapping it to the outside of the production casing. It may be encapsulated and can be included along with other pressure tubing or TEC and mechanical components, such as bumpers, within a flatpack. The tubing is frequently supplied as 5000 ft to 35000 ft. coils on a wooden or steel reel, depended on its size.
MANUFACTURING PROCESS AND RESULTANT PROPERTIES
The strip is formed into a tubular cross section and longitudinally seam welded using either the gas tungsten arc (GTAW). The tubing may be welded at a larger outside diameter, sunk to final size and subsequently heat treated. Heat-treated tubing is one continuous length tubing, completely free of any welded joints or seams. Each coil is 100% hydrostatic tested.
The desired sizes are obtained by repeating cold drawing process, any welded joints are not
acceptable in each one coil ranging from 0.125 inch to 1 inch O.D. (3.2 mm to 25.4 mm) and a variety of wall thicknesses.
NON-DESTRUCTIVE TESTING (NDT)
Eddy current testing (ECT) is performed on the longitudinally seam welded tubing. Radiographic testing and ECT are performed on material in the final heat-treated condition. Yield pressure hydrostatic testing is performed on the heat-treated tubing at final size.
Size Chart:
OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
3/16" | 0.02,0.028,0.035,0.049 | ||||
1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
* OD: Up to 1 inch |
Chemical Composition:
Chemical Composition,% | ||||||||
Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
C | 0.08 | 0.035 | 0.08 | 0.035 | 0.03 | 0.03 | 0.1 | 0.05 |
Mn | 2 | 2 | 2 | 2 | 2 | 1.2 | 0.5 | 1 |
P | 0.045 | 0.045 | 0.045 | 0.045 | 0.03 | 0.035 | 0.015 | ... |
S | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.015 | 0.03 |
Si | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.5 | 0.5 |
Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
Mo | ... | ... | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
N | ... | ... | ... | ... | 0.14-0.20 | 0.24-0.32 | ... | ... |
Cu | ... | ... | ... | ... | ... | 0.5 | ... | 1.5-3.0 |
Fe | 5 | min 22.0 | ||||||
Al | 0.4 | 0.2 | ||||||
Ti | 0.4 | 0.6-1.2 | ||||||
Cb+Ta | 3.15-4.15 | ... |
