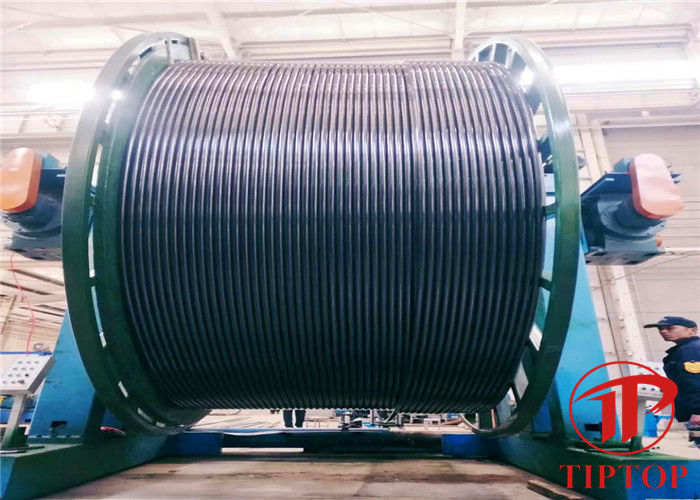

F46 Encapsulated Control Line Tubing 1/8" OD
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 825 |
Detail Information |
|||
Material: | Alloy 825 | Technique: | Cold Drawn |
---|---|---|---|
Standard: | ASTM B704 | Encapsulation Material: | FEP |
OD: | 1/8 | Thickness: | 0.035 |
High Light: | FEP Encapsulated Control Line Tubing,Alloy 825 Encapsulated Control Line Tubing,ASTM B704 0.035 Control Line |
Product Description
Bare tube Material | Encapsulation material | OD (inch) |
Wall Thickness (inch) | Working Pressure (MPa) | Length (M/Pcs) |
Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
F40 F46 FEP (Fluorinated Ethylene Propylene) PVC (Polyvinyl chloride) Nylon Encapsulated etc.. |
1/8” | 0.025”, 0.035”, 0.049” | 80--120 | 50--4000 |
1/4” | 0.035”, 0.049”, 0.065” | 60--120 | 50--3000 | ||
3/8” | 0.035”, 0.049”, 0.065” | 60--120 | 50--2500 | ||
1/2” | 0.035”, 0.049”, 0.065” | 60--120 | 50--2000 |
The specification and length per coil can be customized according to customer’s requirements.
When you want to reduce the risk of leakage in your hydraulic line, and reach a high resistance to corrosion at high temperature working environment, consider Tiptop encapsulated control line.
High-Quality Polymeric Jackets Provide Added Protection
In answer to our customers’ individual needs, we have developed two primary jacketed tubing. Your choice will depend on your process environment and your requirements. We can help you arrive at the most cost-effective solution for your needs.
The core tubing is jacketed with the latest thermoplastic elastomeric compounds designed to outlast the life of project tubing installations by reducing the possibility of corrosion and mechanical damage. They can stand up to a wide range of chemical inhibitors and seawater. The jackets are manufactured from fire retardant, all-weather, abrasion-resistant compounds, designed to remain strong and flexible through wide ranges of temperatures and pressures.
F46 Encapsulated Control Line
Encapsulation layer F46 is FEP, a co-polymer of tetrafluoroethylene and
hexafluoropropylene.
It is featured with:
■Keeping a stable performance at a working temperature from -85℃ to 200℃
■Resistance to a wide chemicals
■Resistance to creep
Nylon Encapsulated Tubing
The encapsulation layer Nylon is well-known as its resistance to wearing.
Features:
■Resistance to corrosion
■High breaking strength
■Good elongation at rupture
■High elastic recovery
■High durability to fatigue
