Austenitic UNS S32205 SS Control Line Tubing ASTM A269
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
Payment Terms : | L/C, T/T, | Supply Ability : | Depends on customer request |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | ASTM |
Detail Information |
|||
Material: | 304,315,625,825,2205,2507 | Technique: | Cold Drawn |
---|---|---|---|
Standard: | ASTM A269,B704,A789 | Processing Type: | Seamless & Welded |
OD: | 1/8"~1/2" | Thickness: | 0.02"~0.083" |
High Light: | ASTM Cold Drawn 316L Coiled Tubing,0.083" 316L Oil Gas Coiled Tubing,ASTM B704 0.083" Coiled Tubing |
Product Description
Grade 316 is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments.
Compared to chromium-nickel austenitic stainless steels, 316L stainless steel offers higher creep, stress to rupture and tensile strength at elevated temperatures.

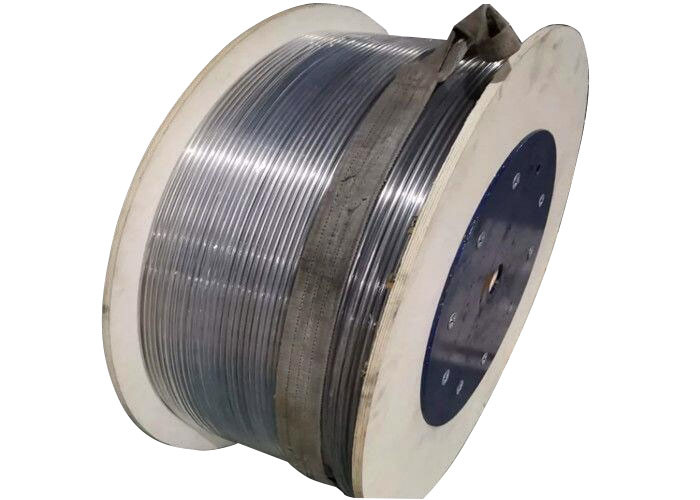

316L seamless stainless steel coiled tube is available mainly for hydraulic tube, stainless steel instrumentation tubing, capillary tube, and bright annealed tube. This product is manufactured by cold drawn / cold roll method.
316L seamless stainless steel coiled tubing can reduce the cost of installation due to:
– Higher rate of materials utilization
– Fewer collections
– System integrity can be improved much.
– Improve the ety of the pipeline system.
Specification:
Outer diameter: 1/16” to 1”
Thickness: 0.01” to 0.083”
Standard: ASTM A269
Tolerance range: diameter: + 0.1mm, wall thickness: + 10%, length: -0/+6mm
Length: 800-3500M or according to customer requirements.
Product advantages: surface polishing and fine, uniform wall thickness, tolerance precision etc..
Commonly Size of stainless steel coiled tube: upon customers’ request
Delivery conditions: Mostly the stainless steel coil tubing is supplied in bright annealed condition.
Chemical Composition:
Chemical Composition,% | ||||||||
Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
C | 0.08 | 0.035 | 0.08 | 0.035 | 0.03 | 0.03 | 0.1 | 0.05 |
Mn | 2 | 2 | 2 | 2 | 2 | 1.2 | 0.5 | 1 |
P | 0.045 | 0.045 | 0.045 | 0.045 | 0.03 | 0.035 | 0.015 | ... |
S | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.015 | 0.03 |
Si | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.5 | 0.5 |
Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
Mo | ... | ... | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
N | ... | ... | ... | ... | 0.14-0.20 | 0.24-0.32 | ... | ... |
Cu | ... | ... | ... | ... | ... | 0.5 | ... | 1.5-3.0 |
Fe | 5 | min 22.0 | ||||||
Al | 0.4 | 0.2 | ||||||
Ti | 0.4 | 0.6-1.2 | ||||||
Cb+Ta | 3.15-4.15 | ... |
