ASTM Standard PVC Cover Multi Core Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
| Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
|---|---|---|---|
| Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
| Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
| Place of Origin: | China | Brand Name: | Tiptop |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Material: | PVC Cover | Technique: | Cold Drawn |
|---|---|---|---|
| Standard: | ASTM A312 | Processing Type: | Seamless & Welded |
| Product Name: | Multi-core Coiled Tubing | Color: | Customized |
| High Light: | ASTM A312 Welded Multi Core Tubing,PVC Jacket Multi Core Tubing,ASTM A312 Ss Multi Core Tubing |
||
Product Description
Introduction:

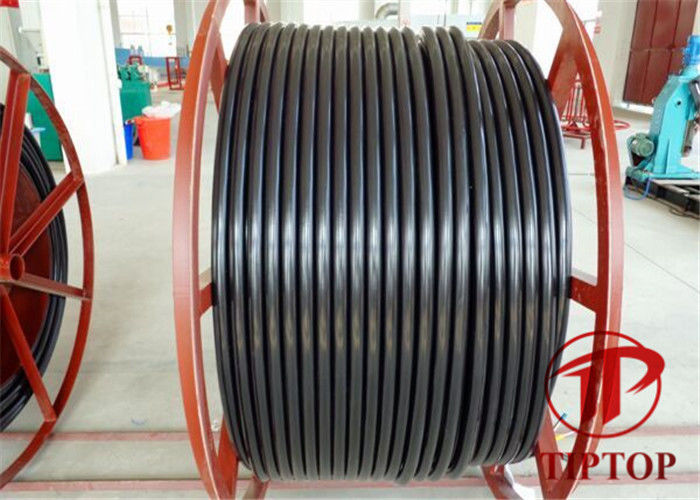

The stainless steel multi-core tube looks like a cable and is made up of two or more stainless steel seamless single-core tubes or welded single-core tubes.
The products are made of high quality stainless steel raw materials and jackets and fillers produced in accordance with ROHS environmental protection directives.lt has the characteristics of pressure resistance, wear resistance, corrosion resistance, anti-aging, flame retardant and environmental protection.
It is suitable for a variety of harsh climatic conditions and has a high ety factor. It is widely used in remote control and monitoring systems such as shipbuilding, offshore platforms, petrochemicals, power generation, pneumatic.
Features:
1.Easy to lay, labor saving
Multi-core tube is easy to take shape like cables, the operating tools are simple and it is convenient for laying. Mark can be made meter by meter. Each tube has PVC sheath with different colors, which is easy to identify.
2.Superior performance, free of maintenance
Multi-core tube adopts high quality stainless steel strip and outer sheath raw materials produced according to ROHS environmental protection directives, so it is pressure resistant, wear resistant, water and oil-proof, corrosion resistant and aging resistant and can adapt to various complicated climate conditions. It has high thermal resistance, small heat waste and high ety factors, so it will not cause scalding.
3.Customized to avoid waste
Single ultra-long tube can be manufactured based on fixed dimension and multi-core cables can also be manufactured to form one tube and multi-circuit control, thus saving expensive joint and accessories expenses.
4.Positioned as high quality products to ensure absolutely e
By using high quality raw materials, automatic production process, strict process control and testing means, the hidden trouble of quality can be effectively eliminated.
5.High-tech techridlo^an0 extensive applications
Multi-core tube is e, reliable;<x)nyenient for laying； occupies little space, easy to configure and convenient for management. It' s?particularly suitable^i&r pneumatic and hydraulic control system as well as measuring and monitoring system, etsjrrthe shipbuilding, oil and gas, hydraulic, chemical and other industries.
Specification:
| Material of Tube | Tube OD | Wall Thickness | Cores | Standard Length of Tube | |
| ASTM TP 304/304L/316/316L | 6/8/10/12/14/15mm | 0.8/1.0/1.2/1.5/2.0mm | 1~6core | Seamless | Welded |
| 50〜160 | 200〜800 | ||||
Maximum Allowable Working Pressure:
| O.D (mm) |
Wall Thickness (mm) | |||||
| 0.5 | 0.8 | 1 | 1.2 | 1.5 | 2 | |
| 6mm | 18.2 | 29.2 | — | — | — | — |
| 8mm | 13.7 | 21.9 | 27.3 | — | — | — |
| 10mm | — | 17.5 | 21.9 | 26.2 | 32.8 | — |
| 12mm | — | — | 18.2 | 21.9 | 27.3 | — |
| 14mm | — | — | — | 18.7 | 23.4 | 31.2 |
| 15mm | — | — | — | — | 21.9 | 29.2 |
Technical parameters:
|
O.D (mm) |
No.of Cores | Sheath Thickness (mm) | Overall Diameter (Approx, mm) | Bending Radius (Minimum mm) | Weight/kg/m | ||||
| 0.18 | 1.0 | 1.2 | 1.5 | 2.0 | |||||
| 6 | 1 | 1 | 8 | 64 | 0.18 | 0.21 | 一 | 一 | |
| 2 | 2 | 19 | 152 | 0.67 | 0.71 | 一 | 一 | ||
| 4 | 2 | 23 | 184 | 0.96 | 1.04 | 一 | 一 | ||
| 6 | 2 | 28 | 224 | 1.25 | 1.38 | 一 | 一 | ||
| 8 | 1 | 1 | 10 | 80 | 0.25 | 0.28 | 0.31 | 一 | |
| 2 | 2 | 23 | 192 | 0.83 | 0.89 | 0.95 | 一 | ||
| 4 | 2 | 28 | 224 | 1.2 | 1.33 | 1.45 | 一 | ||
| 6 | 2 | 33 | 272 | 1.82 | 2 | 2.17 | 一 | ||
| O10 | 1 | 1 | 12 | 96 | 0.3 | 0.34 | 0.38 | 0.43 | |
| 2 | 2 | 28 | 224 | 1.1 | 1.18 | 1.26 | 1.37 | ||
| 4 | 2 | 34 | 272 | 1.8 | 1.97 | 2.13 | 2.35 | ||
| 6 | 2 | 39 | 320 | 2.15 | 2.4 | 2.63 | 2.96 | ||
| 12 | 1 | 1 | 14 | 112 | - | 0.41 | 0.45 | 0.53 | |
| 2 | 2 | 34 | 272 | - | 1.38 | 1.48 | 1.62 | ||
| 4 | 2 | 39 | 312 | - | 2.37 | 2.57 | 2.85 | ||
| 6 | 2 | 48 | 384 | - | 3 | 3.29 | 3.71 | ||
| 14 | 1 | 1 | 16 | 128 | - | 一 | 一 | 0.61 | 0.74 |
| 2 | 2 | 39 | 312 | - | 一 | 一 | 3 | 3.26 | |
| 15 | 1 | 1 | 17 | 136 | 一 | 一 | 一 | 0.64 | 0.79 |
| 2 | 2 | 39 | 312 | - | 一 | 一 | 3.08 | 3.36 | |
GB/T 12771 Welded stainless steel pipes for liquid delivery
GB/T 3280 Cold rolled stainless steel plate, sheet and strip
GB/T 14976 Seamless stainless steel pipes for fluid transport
ASTM A269/A269M Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312/A312M Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
GB/T 7735 Steel tubes—The inspection method on eddy current test
GB/T 241 Metal materials—Tube—Hydrostatic Pressure test
GB/T 244 Metal materials—Tube—Bend test
GB/T 246 Metal materials—Tube—Flattening test
GB/T 228.1Metallic materials—Tensile testing
GB/T 2406.2Plastics determination of burning behavior by oxygen index—Part 2: Ambient temperature test
GB/T 8815 Plasticized polyvinyl chloride (PVC) compounds for wire and cable
GB/T 18380.12/IEC60332-1-2 Test on electric and optical fibre cables underfire conditions—Prat 12: Test for vertical flame propagation for a single insulated wire or cable—Procedure for 1kw pre-mixed flame
Stainless steel single- and multi-core tubes are usually twined on wooden reels or iron wooden reels for packaging. After unpacking, the personnel can install the tubes (e.g. strengthening and cutting) in the way similar to that of cable installation. Generally, these tubes are installed on brackets or trays made of steel angles or flats.
The tubes are often fixed with pipe clamps or lashing bands. A tube is connected to other tube(s) or equipment with a straight ferrule connector, a T ferrule connector, a penetration ferrule connector, a penetration piece, a terminal ferrule connector and/or other accessories.
Multi-core tubes should be treated with mature cable laying processes at the places where they pass through bulkheads or decks, for example, common sealing, waterproof sealing, adequate fireproof treatment, etc.
