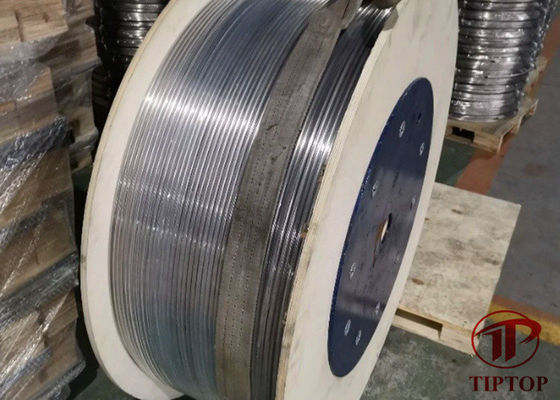

ASTM B704 Incoloy 825 Acid Resistant Control Line Tubing

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Seaworthy wooden cases or wooden reels Delivery Time : 10 days
Payment Terms : T/T Supply Ability : 1000 tons per month
Place of Origin: CHINA Brand Name: TIPTOP
Certification: ISO 9001 Model Number: 304,316,625,825,2205,2507

Detail Information

Product: ASTM B704 Incoloy 825 Acid Resistant SS Hydraulic Control Line Tubing Standard: ASTM B704
Material: Incoloy 825 (UNS N08825) Processing: Bending, Welding, Cutting
OD: 1/16"~1" Thickness: 0.02"~0.083"
High Light:

Acid Resistant Control Line Tubing

,

Incoloy 825 Control Line Tubing

,

ASTM B704 Control Line Tubing

Product Description

ASTM B704 Incoloy 825 Acid Resistant SS Hydraulic Control Line Tubing



Tiptop is one of China's famous suppliers of high-quality SS hydraulic control line tubing. We are wildly providing the most competitive pricing for Hydraulic Control Line in large quantities, from OD 0.125” ~ 0.625” (3.18mm ~ 15.86mm), Wall Thickness Thk:0.028” ~ 0.065” (0.711mm ~ 1.651mm), Material Grades: 316L; Alloy 825,625;Duplex2205;2507; Encapsulated.



SS Hydraulic Control lines
Wall Thickness Thk:0.028” ~ 0.065” (0.711mm ~ 1.651mm)
Outer Diameter 0.125” ~ 0.625” (3.18mm ~ 15.86mm)
Material Grades 316L;alloy 825,625;Duplex2205;2507; Encapsulated





Material also be compatible to use with Completion Fluid (1.20 SG Brine Spacer, OBM or OBM Spacer) and Produced Fluids.The material comply with NACE MR 01-75 (latest edition). Control line to be coiled on wooden drum and install protector to prevent from mechanical damage.



The maximum length of SS hydraulic control line tubing is 2300 feet. SS coil straightener makes the stainless steel coil tube mount faster and easier. Depending on the application, SS coils are of different sizes.





SS Hydraulic Control Line TubingTolerance

SS Hydraulic Control Line Tubing Specifications – Restricted Tolerance Controls

OD Tolerance: +0.005/-0 in.

Hardness: Maximum 80 HRB (Rockwell)

Wall Thickness: ±10%

Chemistry: Min. 2.5% Molybdenum



SS Hydraulic Control Line Tubing Chemical Composition:

Chemical Composition,%
Standard ASTM A269 ASTM A789 ASTM B704
Material SS 304 SS 304L SS 316 SS 316L Duplex 2205 Super Duplex 2507 Incoloy 625 Incoloy 825
UNS S30400 S30403 S31600 S31603 S32205 S32750 N06625 N08825
C 0.08 0.035 0.08 0.035 0.03 0.03 0.1 0.05
Mn 2 2 2 2 2 1.2 0.5 1
P 0.045 0.045 0.045 0.045 0.03 0.035 0.015 ...
S 0.03 0.03 0.03 0.03 0.02 0.02 0.015 0.03
Si 1 1 1 1 1 0.8 0.5 0.5
Ni 8.0-11.0 8.0-12.0 10.0-14.0 10.0-15.0 4.5-6.5 6.0-8.0 min 58.0 38.0-46.0
Cr 18.0-20.0 18.0-20.0 16.0-18.0 16.0-18.0 22.0-23.0 24.0-26.0 20.0-23.0 19.5-23.5
Mo ... ... 2.00-3.00 2.00-3.00 3.0-3.5 3.0-3.5 8.0-10.0 2.5-3.5
N ... ... ... ... 0.14-0.20 0.24-0.32 ... ...
Cu ... ... ... ... ... 0.5 ... 1.5-3.0
Fe             5 min 22.0
Al             0.4 0.2
Ti             0.4 0.6-1.2
Cb+Ta             3.15-4.15 ...




Application of SS Hydraulic Control Line Tubing:

Industrial use: heat exchanger, boiler, petroleum, chemical, fertilizer, chemical fiber, pharmaceutical, nuclear power.



Packaging standard of SS Hydraulic Control Line Tubing:

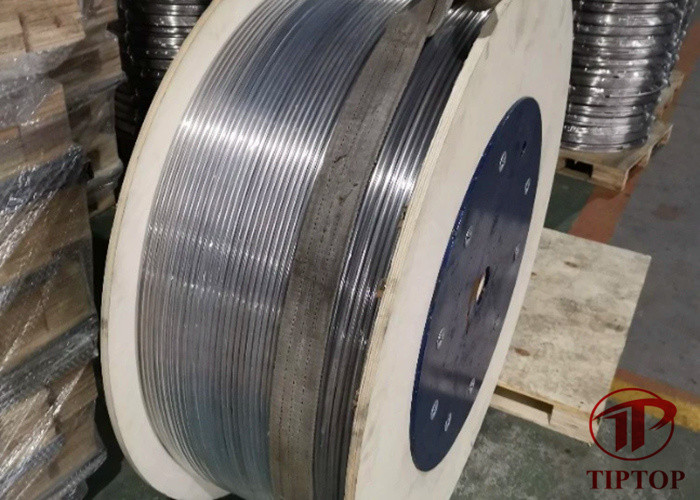

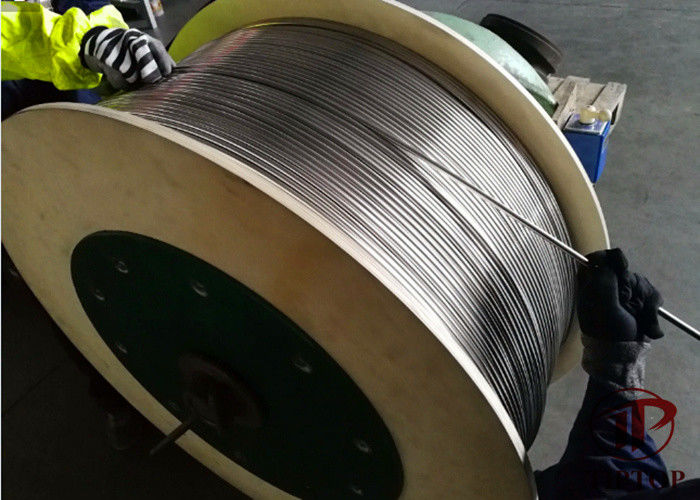

-Control line to be coiled on wooden drum and install protector to prevent from mechanical damage

-Customized packaging marking service



ASTM B704 Incoloy 825 Acid Resistant Control Line Tubing 0



FAQ

Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
