Control Line Incoloy 625 Seamless Stainless Steel Coils
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 304,316,625,825,2205,2507 |
Detail Information |
|||
Product Name: | Astm B704 Incoloy 825 Seamless Stainless Steel Coils For SCSSV | Standard: | ASTM B704 |
---|---|---|---|
Material: | Incoloy 825 (UNS N08825) | Processing: | Bending, Welding, Cutting |
OD: | 1/16"~1" | Thickness: | 0.02"~0.083" |
High Light: | Incoloy 825 Stainless Steel Coils,Astm B704 Stainless Steel Coils,SCSSV Seamless Stainless Steel Coils |
Product Description
Tiptop is specialized in providing alloy steel coiled tube, alloy steel control line, alloy steel continuous tube with have high corrosion resistance and temperature strength.
INCOLOY® alloy 825 (UNS N08825, W.Nr. 2.4858) is a nickel-iron-chromium alloy with additions of molybdenum, copper, and titanium. The nickel content is sufficient for resistance to chloride-ion stress-corrosion cracking. The nickel, in conjunction with the molybdenum and copper, also gives Alloy 825 tubing great resistance to reducing environments, like those containing sulfuric and phosphoric acids. Aiding resistance to pitting and crevice corrosion is one of the chief benefits of the molybdenum. Resistance to a variety of oxidizing substances such as nitric acid, nitrates, and oxidizing salts comes from the chromium content. Titanium, often with heat treatment, serves to stabilize the alloy against sensitization to inter granular corrosion.
Size Chart of Incoloy 825 Seamless Stainless Steel Coiled Tubings
Material |
OD (inch) |
Wall Thickness (inch) | Working Pressure (MPa) | Length (M/Reel) |
Incoloy825 | 1/8” | 0.025”, 0.035”, 0.049” | 80--120 | 50--4000 |
Incoloy825 | 1/4” | 0.035”, 0.049”, 0.065” | 60--120 | 50--3000 |
Incoloy825 | 3/8” | 0.035”, 0.049”, 0.065” | 60--120 | 50--2500 |
Incoloy825, | 1/2” | 0.035”, 0.049”, 0.065” | 60--120 | 50--2000 |
Features of Incoloy 825 Seamless Stainless Steel Coiled Tubings
With high pressure and super length from 1/8” to 1/2” OD and a variety of wall thicknesses in loose bulk wound coils or reeled on wooden drum. These products are mainly applied in petroleum industry, chemical industry, shipbuilding, natural gas, and etc.
Hydrostatic test for each coil and conform to ASTM standards and requested specifications. The specification and length per coil can be customized according to customers’ requirements.
Chemical Composition of Incoloy 825 Seamless Stainless Steel Coiled Tubings
Chemical Composition,% | |||||||||||||||
Material | Standard | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu | Fe | Al | Ti | Cb+Ta |
825 | ASTM B704 | 0.05 | 1.00 | ... | 0.030 | 0.50 | 38.0-46.0 | 19.5-23.5 | 2.5-3.5 | ... | 1.5-3.0 | min 22.0 | 0.2 | 0.6-1.2 | ... |
Application of Incoloy 825 Seamless Stainless Steel Coiled Tubings

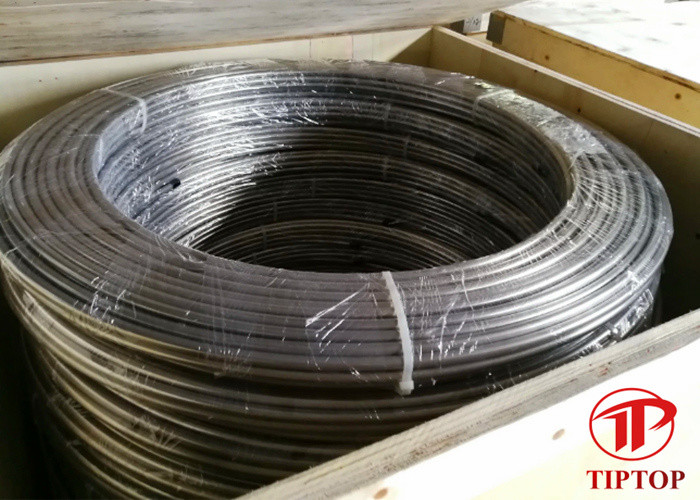

Packaging standard of Incoloy 825 Seamless Stainless Steel Coiled Tubings :
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
