Austenitic UNS S32205 SS Control Line Tubing ASTM A269
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|

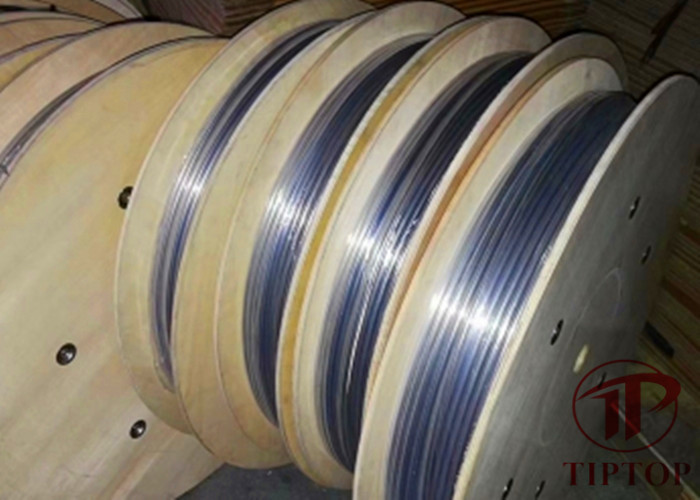

Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 304 |
Detail Information |
|||
Material: | 304 | Standard: | ASTM A269 |
---|---|---|---|
Length: | According To The Sizes | Processing: | Bending, Welding, Cutting |
OD: | 1/16"~1" | Thickness: | 0.02"~0.083" |
High Light: | ASTM A269 Stainless Coiled Tubing,Capillary Stainless Coiled Tubing,Corrosion Resistance SS304 Coiled Tubing |
Product Description
Stainless coileg steel tubing is the widely used steel capillary tube which is ideal for use in potentially corrosive environments or transferring liquids and gases for cooling, heating, and other purposes. Stainless coiled steel tubing is made with the finest quality stainless tube by bent, curved, wound, or otherwise formed process around a hollow “center”. Our stainless coiled steel tubing has the characteristics of restricted tolerance control, improved system ety and reliability, superior sealing performance, better corrosion resistance, etc. Tiptop supplies stainless coil tubing in extensive array of diameters and wall thicknesses and in various grades. We also offer custom fabrication of stainless coil tubing for your demands.
Applications
The stainless coiled steel tubing is widely used for industrial applications such as heat exchanger, boiler, petroleum, chemical, fertilizer, chemical, pharmaceutical, nuclear power, etc. It is also used as fluid transport system such as beer, milk, water systems, medical equipment, etc. Its other applications include mechanical structure, printing and dyeing, textile machinery, medical equipment, kitchen equipment, automobile and ship accessories, building and decoration, etc.
Mechnical Properities
Type | Material | Burst pressure (psi) |
Expansivity(0.2%) (psi) |
Expansivity(1%) (psi) |
Recommended Max working pressure |
1/4" * 0.035" | 316L | 17,370 | 7,600 | 9,000 | 12,160 |
1/4" * 0.035" | Alloy825 | 21,150 | 9,700 | 10,600 | 14,720 |
1/4" * 0.035" | Alloy625 | 29,790 | 16,600 | 17,800 | 20,800 |
1/4" * 0.049" | 316L | 25,200 | 11,000 | 13,100 | 16,000 |
1/4" * 0.049" | Alloy825 | 30,600 | 14,000 | 15,400 | 19,440 |
1/4" * 0.049" | Alloy625 | 43,200 | 24,000 | 25,800 | 27,440 |
1/4" * 0.065" | 316L | 34,560 | 15,100 | 17,900 | 19,840 |
1/4" * 0.065" | Alloy825 | 41,940 | 19,200 | 21,100 | 19,840 |
1/4" * 0.065" | Alloy625 | 59,220 | 32,900 | 35,400 | 34,000 |
3/8" * 0.035" | 316L | 11,340 | 4,900 | 5,800 | 8,480 |
3/8" * 0.035" | Alloy825 | 13,680 | 6,300 | 6,900 | 10,320 |
3/8" * 0.035" | Alloy625 | 19,350 | 10,800 | 11,600 | 14,560 |
3/8" * 0.049" | 316L | 18,100 | 7,100 | 8,400 | 11,520 |
3/8" * 0.049" | Alloy825 | 19,710 | 9,000 | 9,900 | 13,920 |
3/8" * 0.049" | Alloy625 | 27,900 | 15,500 | 16,700 | 19,680 |
3/8" * 0.065" | 316L | 22,230 | 9,700 | 11,500 | 14,640 |
3/8" * 0.065" | Alloy825 | 27,000 | 12,400 | 13,600 | 17,760 |
3/8" * 0.065" | Alloy625 | 38,160 | 21,200 | 22,800 | 25,040 |
Chemical Composition,% | ||||||||
Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
C | 0.08 | 0.035 | 0.08 | 0.035 | 0.03 | 0.03 | 0.1 | 0.05 |
Mn | 2 | 2 | 2 | 2 | 2 | 1.2 | 0.5 | 1 |
P | 0.045 | 0.045 | 0.045 | 0.045 | 0.03 | 0.035 | 0.015 | ... |
S | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.015 | 0.03 |
Si | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.5 | 0.5 |
Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
Mo | ... | ... | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
N | ... | ... | ... | ... | 0.14-0.20 | 0.24-0.32 | ... | ... |
Cu | ... | ... | ... | ... | ... | 0.5 | ... | 1.5-3.0 |
Fe | 5 | min 22.0 | ||||||
Al | 0.4 | 0.2 | ||||||
Ti | 0.4 | 0.6-1.2 | ||||||
Cb+Ta | 3.15-4.15 | ... |
Size Chart
OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
3/16" | 0.02,0.028,0.035,0.049 | ||||
1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
OD: Up to 1 inch |
