Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|

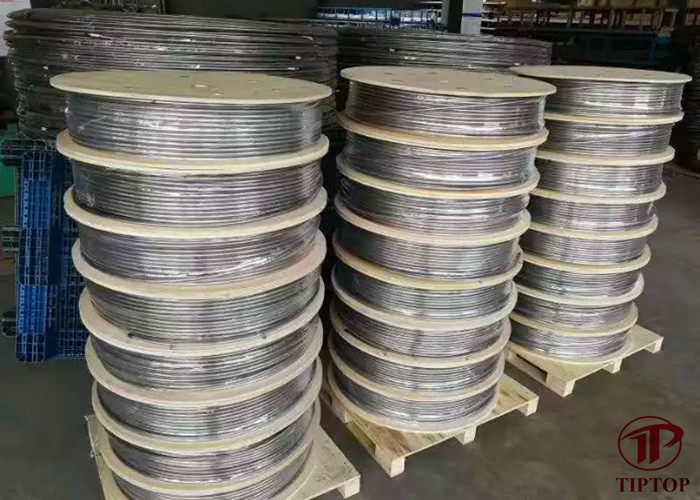

Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 2205 |
Detail Information |
|||
Material: | Duplex 2205 SS | Standard: | ASTM A789 |
---|---|---|---|
Length: | According To Customers' Requirement | Processing: | Bending, Welding, Cutting |
OD: | 1/16"~1" | Thickness: | 0.02"~0.083" |
High Light: | 2205 SS Control Line Tubing,Bending Hydraulic Control Line Tubing,ASTM Underground Control Line Tubing |
Product Description
Control line tubes are generally used to operate underground ety valves controlled by the surface. Our company focuses on providing each customer with customized control pipelines to their satisfaction. Our control line tubes comply with ASTM specifications and can be used in many fields. Our company can also provide encapsulateded control lines to improve the extrusion resistance and wear resistance of the control lines. There are many choices of encapsulated materials for control lines, which can be customized according to customer requirements.
Our control line tubes use duplex stainless steel or nickel alloy, seamlessly welded, which can protect the electrical and optical components against downhole environmental pressure and corrosion.
Seam Welded Tubing (TYPE) |
Material |
Min. Burst pressure (PSI) |
Min. Collapse pressure (PSI) |
Load at Min. 0.2% YS(IBS) | Load at Typical UTS (IBS) |
3/8" × 0.035" | Duplex 2205 SS | 18,333 | 12,222 | 2,991 | 4,673 |
3/8" × 0.049" | Duplex 2205 SS | 25,667 | 16,489 | 4,015 | 6,273 |
3/8" × 0.065" | Duplex 2205 SS | 34,048 | 20,930 | 5,064 | 7,913 |
3/8" × 0.083" | Duplex 2205 SS | 43,476 | 25,371 | 6,091 |
9,517 |
This product is mainly used to inject chemical reagents to oil and gas wells. The upcoming 3/8 "hydraulic control line connected to the downhole chemical injection valve, the cleaning chemicals from the ground into the underground pipe through a certain concentration of 3/8 hydraulic control pipeline and chemical injection valve, fouling effective detachment of tubing, ensure the normal production of oil and gas fields. The utility model can also be used for the pressure control of the ground ety valve and other ground valves, and various connecting pipelines of the instrument control system of large-scale oil drilling and oil production large-scale equipment.

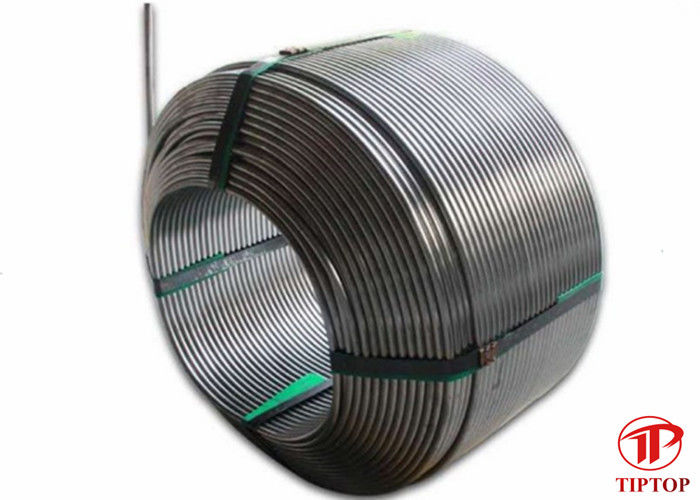

Stainless steel coil is widely used in oil drilling, shipbuilding, aerospace and petrochemical refining equipment, spiral wound heat exchangers and cold treatment chemical industry, gas pipelines, fluid conduits, steam pipes insulated cables, stainless steel heating coil, high-pressure fluid pipes, stainless steel pipes cable insulation, anti-corrosion stainless steel tubes and cable sheathing and pvc protected umbilical cable industry.
Inspection & Test
1 .100 % PMI , Spectro Chemical Aanlysis Test for Raw Material
2 .100 % Dimension & Visual Examination
3 . Mechanical Properties Test Include Tension Test,Flaring Test ( For Seamless tube / pipe ) / Flange Test ( For Welded Pipe & Tube ) , Hardness Test , Reversed Flattening Test
4 .100 % Hydrostatic Test or 100 % NON - DESTRUCTIVE Test ( ET or UT )
5 . Radiographic Test for Welded Pipe ( shall be accordance with specification , or shall be as agreed upon between the purchaser and vendor )
6 . Straightness Test ( optional )
7 . Roughness Test ( optional )
8 . Intergranular Corrosion Test ( optional )
9 . Impact Test ( optional )
10 . Grain Size Determinations ( optional )
NOTES: You need to show the results of all tests and inspections according to a report in the standards and specifications.
UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
S31803 | 0.03 max | 1 max | 2 max | 0.03 max | 0.02 max | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | ~ |
S32205 | 0.03 max | 1 max | 2 max | 0.03 max | 0.02 max | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | ~ |
S32750 | 0.03 max | 0.8 max | 1.2 max | 0.035 max | 0.02 max | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
S32760 | 0.05 max | 1 max | 1 max | 0.03 max | 0.01 max | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 |
0.50 -1.00 |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
