Round Flat Diameter 38mm-42mm ESP Cable Protectors
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 10 pcs | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | wooden cases | Delivery Time : | one week |
Payment Terms : | L/C, T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO9001 | Model Number: | 2-3/8" |
Detail Information |
|||
Product Name: | Control Line Clamps And Protectors | Material: | Carbon Steel Or Stainless Stee |
---|---|---|---|
Tube Size: | 2-3/8"~7" | Clamp Type: | Casted Or Punching |
High Light: | Tiptop ESP cable Clamp,7" Tube ESP cable clamp,Casting Downhole Cross Coupling ESP |
Product Description
We offers a range of specialized control line clamps and protectors, These control line protector base body can be made by carbon steel or stainless steel material.

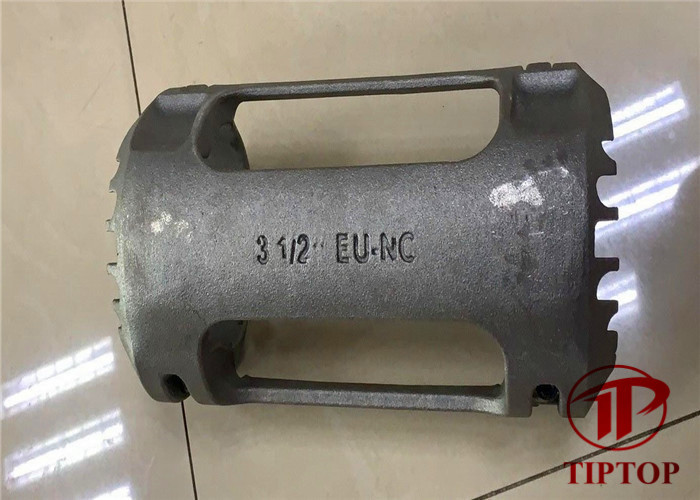

Casting Cable protector is widely used applied on cross coupling, tubing, ety valve protection, completions, fixing, well repair and gauge completions. The body of cable protectors is produced by precision casting using high-grade materials to ensure product reliability. The unique streamline design prevents damage during dynamic movements of the production tubing and ensuring continuity and accuracy in the gauges completion. Cable protectors can be installed quickly as it has no separate parts or pins, reducing the hang-up risk.
Special cable protectors include ety valve protector, ESP clamps, pumping centralizers, and etc.
Features:
All-cast construction; ensures strength and reliability
One piece design without separate parts or pins
Smooth streamline design; reduces collision hanging risk
Optimized cable slot; considerate layout
Quick and reliable installation; less than 30 seconds
Specifications:
NO. |
Description |
Tube size |
Cable type |
Cable size |
1 |
Cable Protector 2-3/8R6-8 |
2-3/8" |
Round |
Φ6-8mm |
2 |
Cable Protector 2-3/8F11/34 |
2-3/8" |
Flat |
11mm SQUARE |
3 |
Cable Protector 2-3/8R32-34 |
2-3/8" |
Round |
Φ32-34mm |
4 |
Cable Protector 2-7/8R6-8 |
2-7/8" |
Round |
Φ6-8mm |
5 |
Cable Protector 2-7/8R30-33 |
2-7/8" |
Round |
Φ30-33mm |
6 |
Cable Protector 2-7/8R34-37 |
2-7/8" |
Round |
Φ34-37mm |
7 |
Cable Protector 2-7/8F11/34 |
2-7/8" |
Flat |
11mm SQUARE |
8 |
Cable Protector 2-7/8F16-19/56 |
2-7/8" |
Flat |
16-19mm SQUARE |
9 |
Cable Protector 2-7/8F16-19/70 |
2-7/8" |
Flat |
16-19mm SQUARE |
10 |
Cable Protector 3-1/2R6-8 |
3-1/2" |
Round |
Φ6-8mm |
11 |
Cable Protector 3-1/2R30-33 |
3-1/2" |
Round |
Φ30-33mm |
12 |
Cable Protector 3-1/2R34-37 |
3-1/2" |
Round |
Φ34-37mm |
13 |
Cable Protector 3-1/2R38-42 |
3-1/2" |
Round |
Φ38-42mm |
14 |
Cable Protector 3-1/2F11/34 |
3-1/2" |
Flat |
11mm SQUARE |
15 |
Cable Protector 3-1/2F16-19/60 |
3-1/2" |
Flat |
16-19mm SQUARE |
16 |
Cable Protector 3-1/2F19-23/70 |
3-1/2" |
Flat |
19--23mm SQUARE |
17 |
Cable Protector 4-1/2R6-8 |
4-1/2" |
Round |
Φ6-8mm |
18 |
Cable Protector 4-1/2R34-37 |
4-1/2" |
Round |
Φ34-37mm |
19 |
Cable Protector 4-1/2R38-42 |
4-1/2" |
Round |
Φ38-42mm |
20 |
Cable Protector 4-1/2F11/34 |
4-1/2" |
Flat |
11mm SQUARE |
21 |
Cable Protector 4-1/2F16-19/60 |
4-1/2" |
Flat |
16-19mm SQUARE |
22 |
Cable Protector 4-1/2F19-23/60 |
4-1/2" |
Flat |
19--23mm SQUARE |
23 |
Cable Protector 5-1/2R6-8 |
5-1/2" |
Round |
Φ6-8mm |
24 |
Cable Protector 5-1/2R34-37 |
5-1/2" |
Round |
Φ34-37mm |
25 |
Cable Protector 5-1/2R38-42 |
5-1/2" |
Round |
Φ38-42mm |
26 |
Cable Protector 5-1/2F11/34 |
5-1/2" |
Flat |
11mm SQUARE |
27 |
Cable Protector 5-1/2F11-16/56 |
5-1/2" |
Flat |
11-16mm SQUARE |
28 |
Cable Protector 5-1/2F16-19/70DUAL |
5-1/2" |
Flat |
19--23mm SQUARE |
29 |
Cable Protector 7R6-8 |
7" |
Round |
Φ6-8mm |
30 |
Cable Protector 7F11/34 |
7" |
Flat |
11mm SQUARE |
Note: We can provide specific design to meet strict technological and quality.
