Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|

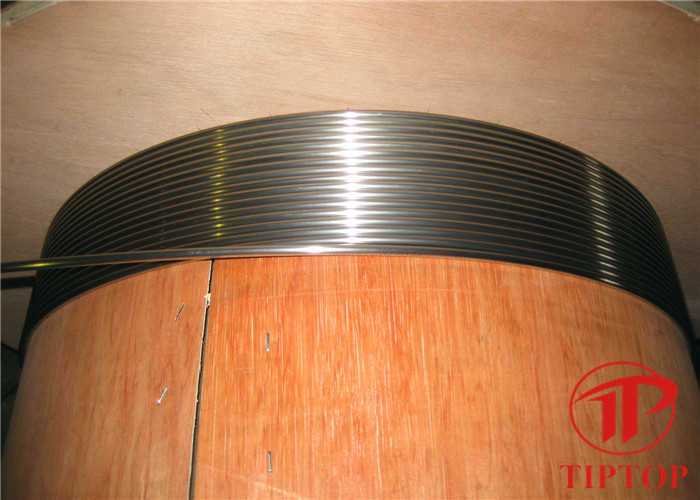

Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 2205 Duplex |
Detail Information |
|||
Material: | S32205 Duplex | Standard: | ASTM A789 |
---|---|---|---|
Length: | Customized | Processing: | Bending, Welding, Cutting |
Product: | S32205 Duplex ASTM A789 SS Hydraulic Control Line Tubing Chemical Injection | Pressure: | 80MPa |
High Light: | Duplex Control Line Tubing,S32205 Control Line Tubing,Chemical Injection Control Line Tubing |
Product Description
Seam Welded Tubing (TYPE) |
Material (Duplex) |
Min. Burst pressure (PSI) |
Min. Collapse pressure (PSI) |
Load at Min. 0.2% YS(IBS) | Load at Typical UTS (IBS) |
3/8" × 0.035" | S32205 | 18,333 | 12,222 | 2,991 | 4,673 |
3/8" × 0.049" | S32205 | 25,667 | 16,489 | 4,015 | 6,273 |
3/8" × 0.065" | S32205 | 34,048 | 20,930 | 5,064 | 7,913 |
3/8" × 0.083" | S32205 | 43,476 | 25,371 | 6,091 | 9,517 |
The product is mainly used for injecting chemical agents into the wells. Connecting 3/8 "hydraulic control line to the downhole chemical injection valve, a certain concentration cleaning chemicals can be led into the chemical injection valve further from the surface into the underground pipeline via the hydraulic control line tubing to effectively remove fouling.
Inspection & Test
1 .100 % PMI , Spectro Chemical Aanlysis Test for Raw Material
2 .100 % Dimension & Visual Examination
3 . Mechanical Properties Test Include Tension Test,Flaring Test ( For Seamless tube / pipe ) / Flange Test ( For Welded Pipe & Tube ) , Hardness Test , Reversed Flattening Test
4 .100 % Hydrostatic Test or 100 % NON - DESTRUCTIVE Test ( ET or UT )
5 . Radiographic Test for Welded Pipe ( shall be accordance with specification , or shall be as agreed upon between the purchaser and vendor )
6 . Straightness Test ( optional )
7 . Roughness Test ( optional )
8 . Intergranular Corrosion Test ( optional )
9 . Impact Test ( optional )
10 . Grain Size Determinations ( optional )
NOTES: ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
S32205 | 0.03 max | 1 max | 2 max | 0.03 max | 0.02 max | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | ~ |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
