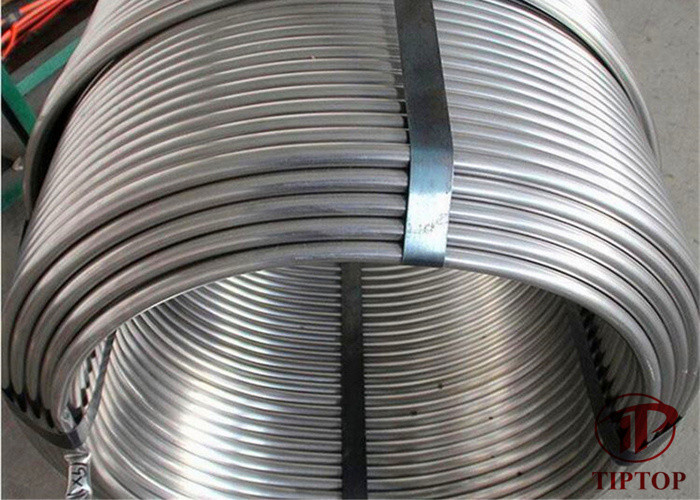

Low Carbon Steel CT70 API 5ST Flexible Coiled Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Wooden reels or metal spool | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 3000 tons per month |
Place of Origin: | China | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO | Model Number: | 3/4 " ~ 3 1/2" |
Detail Information |
|||
Material: | CT70/CT80/CT90/CT100/CT110 | Standard: | API 5ST |
---|---|---|---|
Application: | Pumping/Logging /Umbilical Cable/ Concentric Coiled Tubing | Working Pressure: | 69 MPa/ 103.5 MPa |
Product Name: | CT80 API 5ST Coiled Tubing High Strength | Length: | According To Customer Requirements |
High Light: | High Strength API 5ST Coiled Tubing,CT80 API 5ST Coiled Tubing,CT80 API 5ST Coiled Line Pipe |
Product Description
Coiled tubing (CT), also known as a flexible tube, is a high strength, good ductility, corrosion-resistance welded steel pipe. A reel length can be thousands of meters. Now, with the development of coiled tubing machines and related equipment, coiled tubing operations technology has been applied to drilling, workover, well testing, oil production, stimulation, completion and other fields.
Our low content of a conventional coiled tubing material parathion, uniform structure, suitable mechanical properties, bending coil is less than 0.80, the difference in strength properties in different parts or less 50MPa. All the mechanical properties are in line with API Spec 5ST specification, and has excellent fatigue resistance.
The user can select the desired material and steel according to the conditions. Size can be customized according to API Spec 5ST or user requirements.
Grade | Min. Yield strength | Max. Yield strength | Min. Tensile strength | Max. hardness HRC | |||
Psi | Mpa | Psi | MPA | Psi | Mpa | Tube body &weld seam | |
CT70 | 70,000 | 483 | 80,000 | 552 | 80,000 | 552 | 22 |
CT80 | 80,000 | 552 | 90,000 | 620 | 88,000 | 607 | 22 |
CT90 | 90,000 | 620 | 100,000 | 689 | 97,000 | 669 | 22 |
CT100 | 100,000 | 689 | 108,000 | 758 | 28 | ||
CT110 | 110,000 | 758 | 115,000 | 793 | 30 | ||
CT130 | 130,000 | 896 | 135,000 | 931 | 36 |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
