Round Flat Diameter 38mm-42mm ESP Cable Protectors
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 10 pcs | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | wooden cases | Delivery Time : | one week |
Payment Terms : | L/C, T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO9001 | Model Number: | 2-3/8" |
Detail Information |
|||
Product Name: | Customized ESP Cable Protectors Round&Flat | Material: | Carbon Steel Or Stainless Steel |
---|---|---|---|
Tube Size: | 2-3/8"~7" | Clamp Type: | Casted Or Punching |
Cable Type: | Round Or Flat | Cable Size: | Φ6-8mm |
High Light: | Customized Underground Cable Protectors,Optical Fiber Cable Protectors |

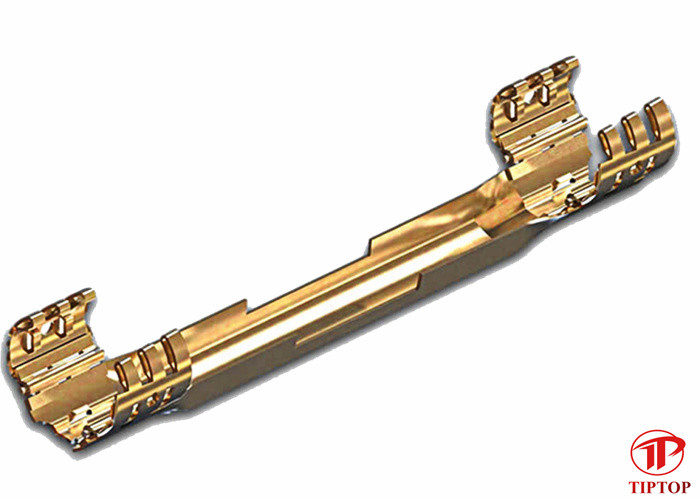

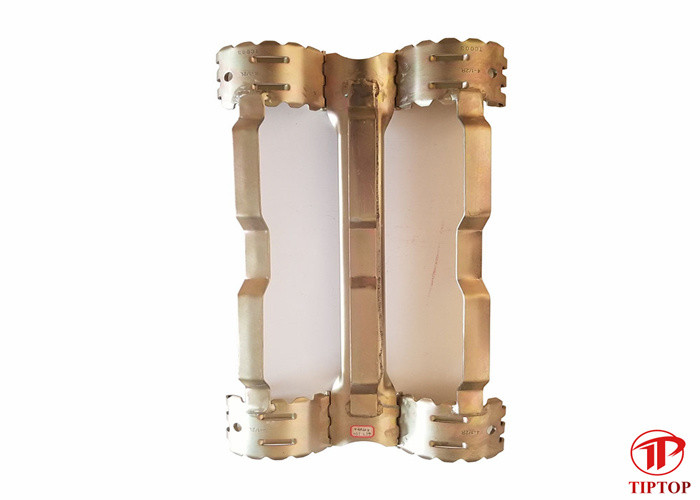

Product Description
Tiptop design and manufacture durable underground cable protectors to ensure ety. We use a comprehensive engineering approach to develop a range of cable protector tube sizes, cable sizes and cable types that can be customized or configured. These protectors have a smooth outline and can be installed or removed easily and quickly. Custom configurations and alternative materials can be provided upon request.
Applications:
ESP cable
Downhole ety valve control pipeline
Chemical injection line
Coiled tube
Permanent gauge
Smart well
optical fiber
Features:
Name: Pipe Stabilizer
Suitable for pipe pf ID from 2-3/8 to 7''
Other products: Sucker rod stabilizer
Product name: pipe stabilizer, sucker rod stabilizer
NO. |
Description |
Tube size |
Cable type |
Cable size |
1 |
Cable Protector 2-3/8R6-8 |
2-3/8" |
Round |
Φ6-8mm |
2 |
Cable Protector 2-3/8F11/34 |
2-3/8" |
Flat |
11mm SQUARE |
3 |
Cable Protector 2-3/8R32-34 |
2-3/8" |
Round |
Φ32-34mm |
4 |
Cable Protector 2-7/8R6-8 |
2-7/8" |
Round |
Φ6-8mm |
5 |
Cable Protector 2-7/8R30-33 |
2-7/8" |
Round |
Φ30-33mm |
6 |
Cable Protector 2-7/8R34-37 |
2-7/8" |
Round |
Φ34-37mm |
7 |
Cable Protector 2-7/8F11/34 |
2-7/8" |
Flat |
11mm SQUARE |
8 |
Cable Protector 2-7/8F16-19/56 |
2-7/8" |
Flat |
16-19mm SQUARE |
9 |
Cable Protector 2-7/8F16-19/70 |
2-7/8" |
Flat |
16-19mm SQUARE |
10 |
Cable Protector 3-1/2R6-8 |
3-1/2" |
Round |
Φ6-8mm |
11 |
Cable Protector 3-1/2R30-33 |
3-1/2" |
Round |
Φ30-33mm |
12 |
Cable Protector 3-1/2R34-37 |
3-1/2" |
Round |
Φ34-37mm |
13 |
Cable Protector 3-1/2R38-42 |
3-1/2" |
Round |
Φ38-42mm |
14 |
Cable Protector 3-1/2F11/34 |
3-1/2" |
Flat |
11mm SQUARE |
15 |
Cable Protector 3-1/2F16-19/60 |
3-1/2" |
Flat |
16-19mm SQUARE |
16 |
Cable Protector 3-1/2F19-23/70 |
3-1/2" |
Flat |
19--23mm SQUARE |
17 |
Cable Protector 4-1/2R6-8 |
4-1/2" |
Round |
Φ6-8mm |
18 |
Cable Protector 4-1/2R34-37 |
4-1/2" |
Round |
Φ34-37mm |
19 |
Cable Protector 4-1/2R38-42 |
4-1/2" |
Round |
Φ38-42mm |
20 |
Cable Protector 4-1/2F11/34 |
4-1/2" |
Flat |
11mm SQUARE |
21 |
Cable Protector 4-1/2F16-19/60 |
4-1/2" |
Flat |
16-19mm SQUARE |
22 |
Cable Protector 4-1/2F19-23/60 |
4-1/2" |
Flat |
19--23mm SQUARE |
23 |
Cable Protector 5-1/2R6-8 |
5-1/2" |
Round |
Φ6-8mm |
24 |
Cable Protector 5-1/2R34-37 |
5-1/2" |
Round |
Φ34-37mm |
25 |
Cable Protector 5-1/2R38-42 |
5-1/2" |
Round |
Φ38-42mm |
26 |
Cable Protector 5-1/2F11/34 |
5-1/2" |
Flat |
11mm SQUARE |
27 |
Cable Protector 5-1/2F11-16/56 |
5-1/2" |
Flat |
11-16mm SQUARE |
28 |
Cable Protector 5-1/2F16-19/70DUAL |
5-1/2" |
Flat |
19--23mm SQUARE |
29 |
Cable Protector 7R6-8 |
7" |
Round |
Φ6-8mm |
30 |
Cable Protector 7F11/34 |
7" |
Flat |
11mm SQUARE |
Note: We can provide specific design to meet strict technological and quality.
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
