F46 Encapsulated Control Line Tubing 1/8" OD
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
| Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
|---|---|---|---|
| Packaging Details : | wooden reel + wooden case | Delivery Time : | one week |
| Payment Terms : | L/C, T/T |
| Place of Origin: | China | Brand Name: | Tiptop |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | 3 / 8 " x 0.049 " |
|
Detail Information |
|||
| Technique: | Cold Drawn | Product Name: | 0.049" WT F40 Encapsulated Control Line Tubing Incoloy 825 (UNS N08825) Or Incoloy625 |
|---|---|---|---|
| Material: | Incoloy 825 (UNS N08825) Or Incoloy625 | Processing Type: | Welded&seamless |
| OD: | 3/8", 1/4" | Thickness: | 0.049" |
| High Light: | F40 Sheath Control Line Tubing,UNS N08825 Incoloy Control Line Tubing,Welded Incoloy Control Line Tubing |
||
Product Description

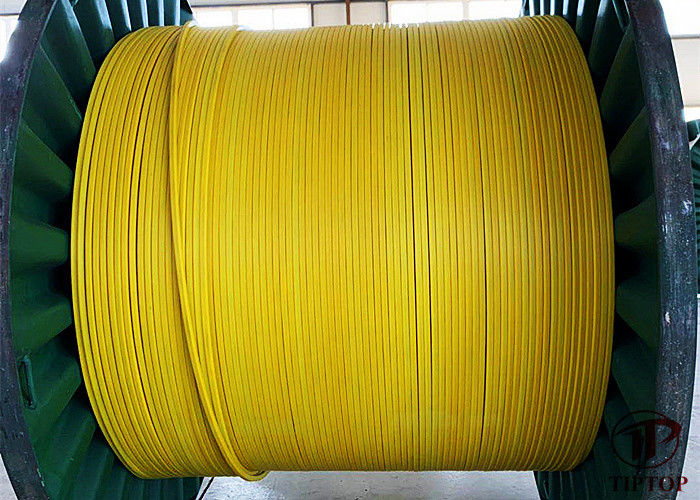

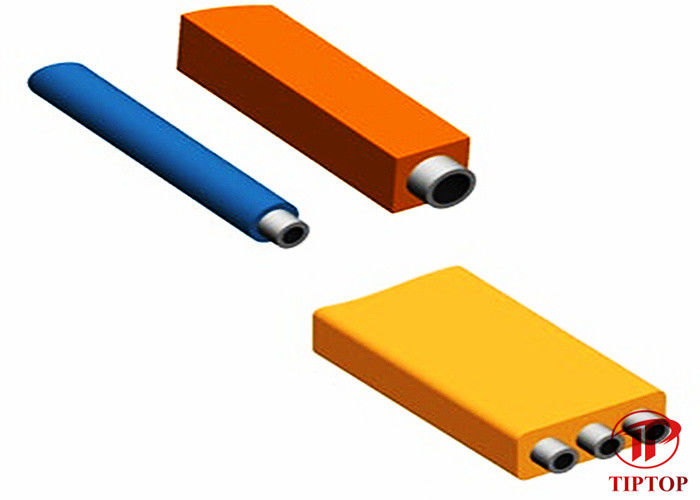

The 3/8" or 1/4" outer diameter package control line can adopt F40 sheath, and the color and packaging material can be customized according to customer requirements. The control line material can be Incoloy 825 (UNS N08825) or Incoloy 625, with a wall thickness of 0.049 inches. The finished control line can be coiled on the barrel, and a protector is installed to prevent damage.
| OD | Wall | Materials | Standard | Working Pressure | Length |
| 3/8" |
0.049" |
Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
| 1/4" | |||||
|
OD: Up to 1" The specification and length per coil can be customized according to customer’s requirements. |
|||||
Encapsulation materials: F40.
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
