Polymer Jacket Encapsulated Control Line Tubing Extra Protection
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
| Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
|---|---|---|---|
| Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
| Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
| Place of Origin: | China | Brand Name: | Tiptop |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | F46 |
|
Detail Information |
|||
| Material: | F46 | Technique: | Cold Drawn |
|---|---|---|---|
| Standard: | ASTM A269 | Processing Type: | Seamless & Welded |
| Produce Name: | F46 Encapsulated Control Line Tubing 1/8" OD | Length: | According To The Sizes |
| High Light: | 1/8" OD Encapsulated Coiled Tubing,Encapsulated Control Line Tubing 1/8",F46 Encapsulated Control Line Tubing |
||
Product Description
When you want to reduce the risk of leakage in your hydraulic line, and reach a high resistance to corrosion at high temperature working environment, consider Tiptop encapsulated control line.

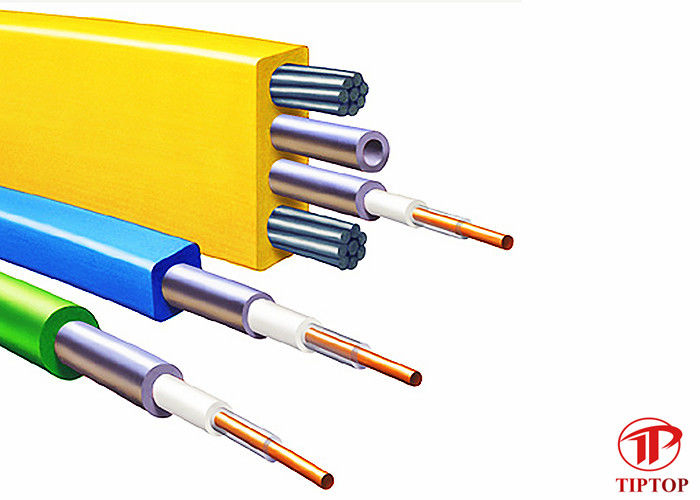

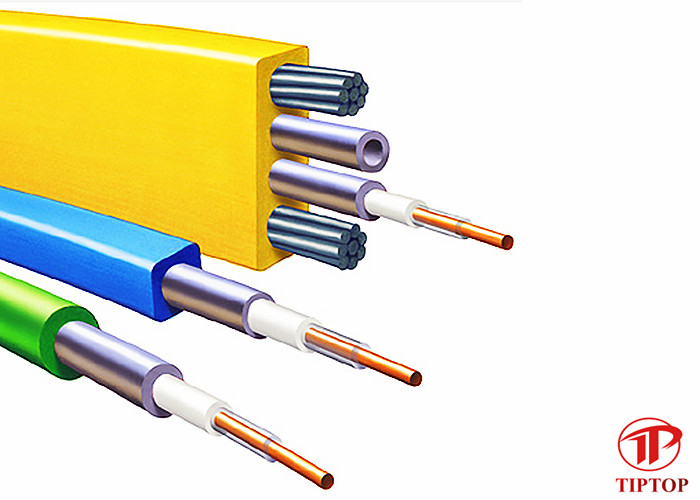

F46 Encapsulated Control Line
Encapsulation layer F46 is FEP, a co-polymer of tetrafluoroethylene and
hexafluoropropylene.
It is featured with:
Keeping a stable performance at a working temperature from -85℃ to 200℃
Resistance to a wide chemicals
Resistance to creep
| Encapsulation material | OD | Wall Thickness | Working Pressure (MPa) | Length (M/Pc) |
| F46 | 1/8” | 0.025”, 0.035”, 0.049” | 80--120 | 50--4000 |
| 1/4” | 0.035”, 0.049”, 0.065” | 60--120 | 50--3000 | |
| 3/8” | 0.035”, 0.049”, 0.065” | 60--120 | 50--2500 | |
| 1/2” | 0.035”, 0.049”, 0.065” | 60--120 | 50--2000 |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
