Flexible Cold Drawn Alloy Steel API 5ST Coiled Tubing

Minimum Order Quantity : 1 reel Price : USD/EURO/RMB
Packaging Details : WOODEN REEL +WOODEN CASE Delivery Time : ONE WEEL
Payment Terms : L/C, T/T, Supply Ability : 1000 TONS PER MONTH
Place of Origin: China Brand Name: Tiptop
Certification: ISO 9001 Model Number: CT110

Detail Information

Model: CT110 Technique: Cold Drawn
Standard: API 5ST Processing Type: Welded & Seamless
Product: CT110 Flexible Low Carbon Alloy Steel API 5ST Coiled Tubing Length: According To The Sizes
High Light:

Welded API 5ST Coiled Tubing

,

Seamless API 5ST Coiled Tubing

,

API 5ST Flexible Coiled Tubing

Product Description

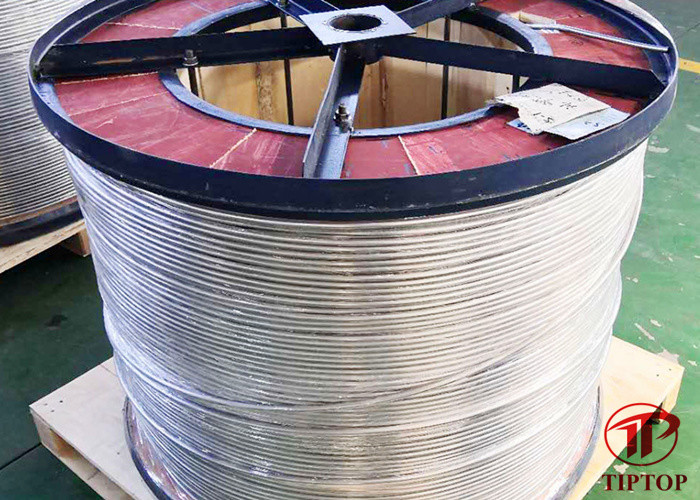

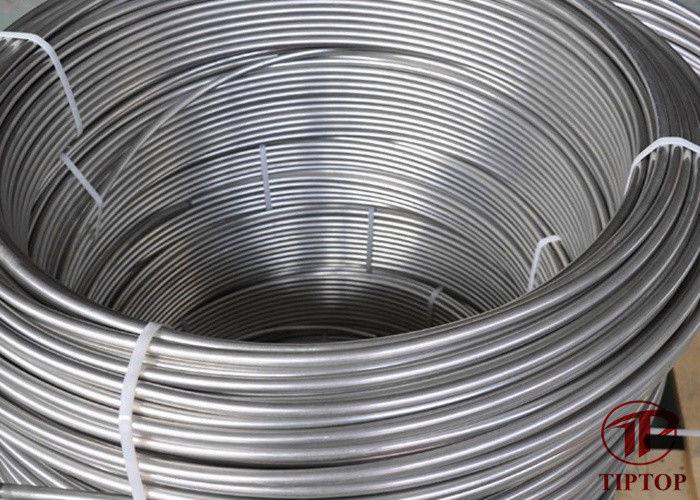

CT110 Flexible Low Carbon Alloy Steel API 5ST Coiled Tubing



Flexible tubes are made of  low-carbon alloy steel having good flexibility. Therefore, it is also called hose. The roll of coiled tubing length may be up to several kilometers. It can be wounded and straightened, then pushed into the wellbore. Then it will be rewind back to the coiled pipeline transportation and storage spool.



We can provide CT70, CT80, CT90, CT100, CT110 steel.



Grade C (Max.) Mn (Max.) P (Max.) S (Max.) Si (Max.)
CT70 0.16 1.2 0.025 0.005 0.5
CT80 0.16 1.2 0.02 0.005 0.5
CT90 0.16 1.2 0.02 0.005 0.5
CT100 0.16 1.65 0.025 0.005 0.5
CT110 0.16 1.65 0.025 0.005 0.5



Mechanical properties of carbon steel and low alloy steel coiled tubing



Grade Yield strength (Min.) Yield strength (Max.) Tensile strength (Min.) Hardness HRC (Max.)
Psi Mpa Psi Mpa Psi Mpa Tube Body&Weld Seam
CT70 70,000 (483) 80,000 552 80,000 552 22
CT80 80,000 (552) 90,000 620 88,000 607 22
CT90 90,000 (620) 100,000 689 97,000 669 22
CT100 100,000 (689)     108,000 758 28
CT110 110,000 (758)     115,000 793 30



Tiptop provides coiled tubing that meets the highest industry standards. It can replace conventional pipelines for many operations. Our coiled tubing is used in the following applications such as milling, drilling, rock fracturing, sidetracking, production tubing, low bottom hole pressure drilling, wellbore cleaning, nitrogen injection, sand control, cementing, mechanical isolation, logging and perforation.



Flexible Cold Drawn Alloy Steel API 5ST Coiled Tubing 0



FAQ

Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
