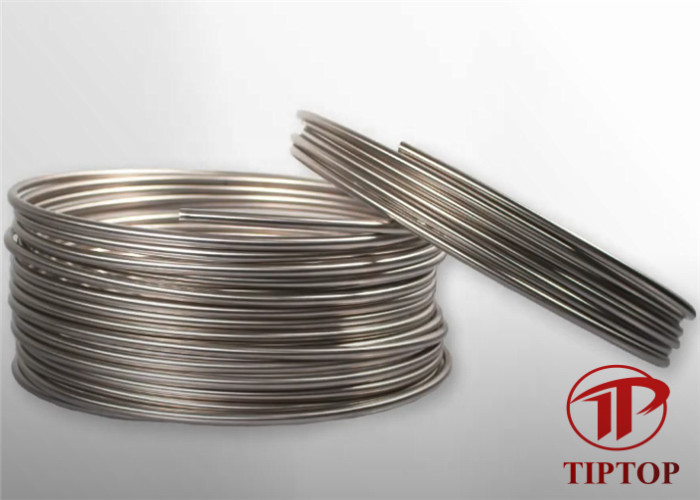

60-120 Mpa Seamless Hydraulic Control Line Tube Customized Length
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
| Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
|---|---|---|---|
| Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
| Payment Terms : | L/C, T/T, | Supply Ability : | Depends on customer request |
| Place of Origin: | China | Brand Name: | Tiptop |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | ASTM |
|
Detail Information |
|||
| Material: | 304,315,625,825,2205,2507 | Technique: | Cold Drawn |
|---|---|---|---|
| Standard: | ASTM A269,B704,A789 | Processing Type: | Seamless & Welded |
| OD: | 1/8"~1/2" | Thickness: | 0.02"~0.083" |
| High Light: | 625 Seamless Hydraulic Control Line,0.083" ASTM A269 Control Line Tube,ASTM 0.083" Control Line tubing |
||
Product Description
INCONEL® nickel-chromium alloy 625 (UNS N06625/W.Nr. 2.4856) is used for its high strength, excellent fabricability (including joining), and outstanding corrosion resistance. Service temperatures range from cryogenic to 1800°F (982°C).
We specialize in supplying Inconel 625, inconel625, alloy625, Alloy 625/UNS N06625 Stainless steel coiled control line tubes/pipes/tubing, Hydraulic Control lines, Chemical Injection Lines.
The outer diameter of Inconel 625, inconel625, alloy625, Alloy 625/UNS N06625 Stainless steel coiled control line tubes/pipes/tubing, Hydraulic Control lines, Chemical Injection Lines that we can supply include: 1/8", 1/4", 1/2", 3/8", 3/4", 5/8"
The wall thickness of Inconel 625, inconel625, alloy625, Alloy 625/UNS N06625 Stainless steel coiled control line tubes that we can supply include: 0.028", 0.035", 0.049", 0.065", 0.083"
Our IInconel 625, inconel625, alloy625, Alloy 625/UNS N06625 Stainless steel coiled control line tubes, Hydraulic Control lines, Chemical Injection Lines are widely used in a numerous petrochemical applications, including:
Down hole tubes
Subsea umbilical's
Process constructions
General control system
Steam supply lines
Gas transport lines
Instrumentation
Specification:
|
OD |
Wall |
Materials |
Standard |
Working Pressure |
Length |
|
1/8" |
0.02,0.028,0.035 |
Austenitic steel 304L (UNS S30403) |
ASTM-A 269 |
60-120 Mpa |
Customized |
|
3/16" |
0.02,0.028,0.035,0.049 |
||||
|
1/4" |
0.02,0.028,0.035,0.049,0.065.0.083 |
||||
|
5/16" |
|||||
|
3/8" |
|||||
|
1/2" |
|||||
|
* OD: Up to 1 inch |
|||||
| Chemical Composition,% | ||||||||
| Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
| Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
| UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
| C | 0.08 | 0.035 | 0.08 | 0.035 | 0.03 | 0.03 | 0.1 | 0.05 |
| Mn | 2 | 2 | 2 | 2 | 2 | 1.2 | 0.5 | 1 |
| P | 0.045 | 0.045 | 0.045 | 0.045 | 0.03 | 0.035 | 0.015 | ... |
| S | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.015 | 0.03 |
| Si | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.5 | 0.5 |
| Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
| Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
| Mo | ... | ... | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
| N | ... | ... | ... | ... | 0.14-0.20 | 0.24-0.32 | ... | ... |
| Cu | ... | ... | ... | ... | ... | 0.5 | ... | 1.5-3.0 |
| Fe | 5 | min 22.0 | ||||||
| Al | 0.4 | 0.2 | ||||||
| Ti | 0.4 | 0.6-1.2 | ||||||
| Cb+Ta | 3.15-4.15 | ... | ||||||
