ISO Duplex 2507 ASTM Stainless Steel Capillary Tubes
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | Inconel 625 |
Detail Information |
|||
Material: | Inconel 625 | OD: | 1/8, 3/8, 1/2, 5/8 |
---|---|---|---|
Wall Thickness: | 0.028~0.065 | Technique: | Cold Drawn |
Standard: | ASTM B704, UNS N08825 | Processing Type: | Seamless |
High Light: | Inconel 625 5/8" Downhole Capillary Coil,Inconel 625 0.065" Capillary Coiled Line,UNS N08825 Capillary Tubing |
Product Description
625 nickel-chromium alloy, boasts its high strength, excellent fabricability and corrosion resistance. It can be used in the temperature range from low temperature to 980 °C (1800°F). Its strength comes from the solid solution strengthening effect of molybdenum and niobium on its nickel-chromium matrix.

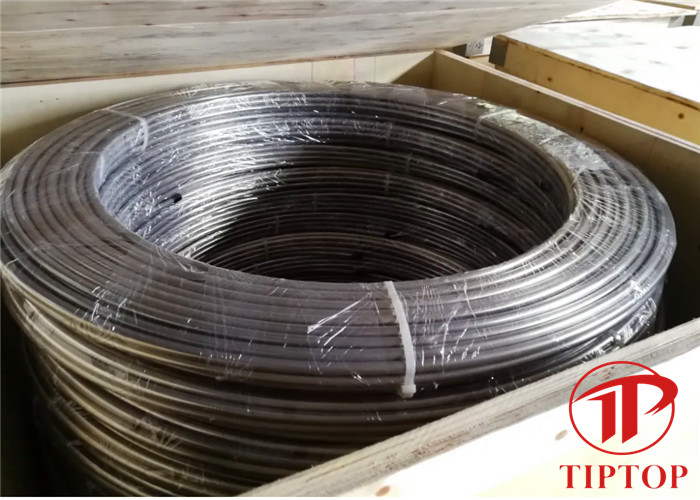

Iconel 625 capillary tubes can be produced into straight, coiled, seamless, seam welded, cold redrawn and annealed.
It can be useful in wellhead components, sheathing, downhole equipment for corrosive/ sour service, reactor core, control rod components, gas pipeline, control lines, heat exchangers, oil refining, chemical processing, control and instrumentation tubes.
Chemical Composition:
Alloy | % | Nickel | Chromium | Molybdenum | Niobium Tantalum | Iron | Aluminum | Titanium | Carbon | Manganese | Silicon | Copper | Phosphorus | Sulfur |
625 | Minimum | 58 | 20 | 8 | 3.15 |
|
|
|
|
|
|
|
|
|
Maximum |
| 23 | 10 | 4.15 | 5 | 0.4 | 0.4 | 0.1 | 0.5 | 0.5 | 0.5 | 0.015 | 0.015 |
Physical Properties:
Density | 8.4 g/cm3 |
Melting point | 1290-1350℃ |
The minimum mechanical properties of the alloy at room temperature:
Alloy and Condition | Tensile Strength | Yield Strength | Elongation | Brinell Hardness |
625 | 760 | 345 | 30 | ≤220 |
