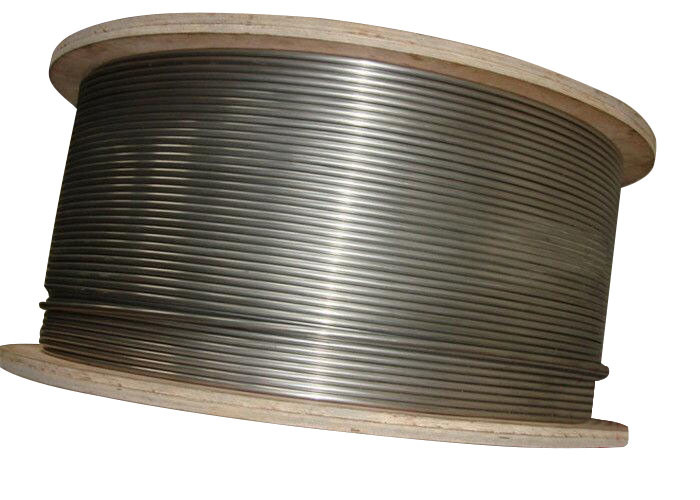

Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
| Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
|---|---|---|---|
| Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
| Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
| Place of Origin: | China | Brand Name: | Tiptop |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | 316L |
|
Detail Information |
|||
| Material: | 316L | Technique: | Cold Drawn |
|---|---|---|---|
| Standard: | ASTM A269 | Processing Type: | Seamless & Welded |
| OD: | 1/16~1 | Thickness: | 0.02,0.028,0.035,0.049,0.065.0.083 |
| High Light: | Inox 316L Control Line,0.049 ASTM A269 Hydraulic Control Line,0.049 ASTM A269 Line Tubing |
||
Product Description
Material:Inox 316L is the second most commonly used stainless steel after 304/304L. 316 is basically an improved version of 304, with addition of molybdenum and slightly higher content of nickel. Both grades 316 can be made available seamless tube and welded tube form. Inox 316L Control Line Tubing is one of our best-selling products. Its low cost and high quality appeal to customers all over the world.
Tiptop Machinery is a leading exporter and supplier of stainless steel 316L control line tubings available with complete certifications and a wide range sizes, surface treatment, and ASTM standards.
Quality Control:
Hydrostatic test for each coil and conform to ASTM standards and requested specifications. The specification and length per coil can be customized according to customers’ requirements.
With high pressure and super length from 1/8” to 1/2” OD and a variety of wall thicknesses in loose bulk wound coils or reeled on wooden drum. These products are mainly applied in petroleum industry, chemical industry, shipbuilding, natural gas, and etc.
Specification:
| OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
| 1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
| 3/16" | 0.02,0.028,0.035,0.049 | ||||
| 1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
| 5/16" | |||||
| 3/8" | |||||
| 1/2" | |||||
| OD: Up to 1 inch | |||||
