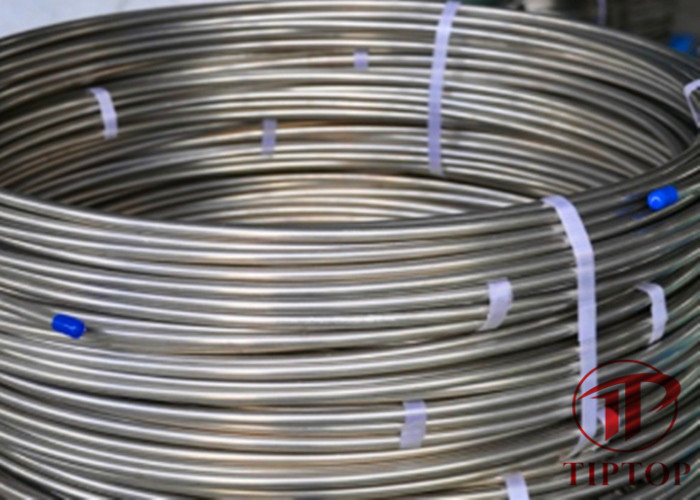

Mechanical ASTM A789 Duplex 2507 Capillary Coiled Tubing

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Seaworthy wooden cases or wooden reels Delivery Time : 10 days
Payment Terms : T/T Supply Ability : 1000 tons per month
Place of Origin: CHINA Brand Name: TIPTOP
Certification: ISO 9001 Model Number: 2507

Detail Information

Material: Duplex 2507 Standard: ASTM A789
Length: According To The Sizes Processing: Bending, Welding, Cutting
OD: 1/16"~1" Thickness: 0.02"~0.083"
High Light:

Duplex 2507 Capillary Coiled Tubing


ASTM A789 Capillary Coiled Tubing


Mechanical Capillary Coiled Tubing

Product Description

Super Duplex 2507 Stainless Steel Coiled Tubing


Super Duplex 2507, is very similar to UNS S31803 2205® Duplex. The contents of chromium and nitrogen are higher in the 2507 which in turn creates higher corrosion resistance as well as a longer lifespan. 2507 is composed of between 24% to 26% chromium, 6% to 8% nickel, 3% molybdenum, and 1.2% manganese, with the balance being iron. Trace amounts of carbon, phosphorus, sulfur, silicon, nitrogen, and copper are also found.


Benefits include good weldability and workability, a high level of thermal conductivity and low coefficient of thermal expansion, resistance to corrosion, fatigue, pitting and crevice corrosion, high resistance to stress corrosion cracking especially in chloride atmospheres, high energy absorption. Essentially, the Duplex alloys are a compromise; possessing some of the ferritic stress corrosion cracking resistance and much of the superior formability of the common austenitic stainless steel alloys yet more cost effective than the high nickel alloys.


Duplex 2507 Stainless Steel Coiled Control Line Tubing Features

  • Close dimensional tolerances
  • Enhanced mechanical properties
  • Superior surface finish
  • High cleanness of inside surface
  • Controlled ovality, eccentricity



Oil and gas industry equipment

Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems

Chemical process industries, heat exchangers, vessels, and piping

Desalination plants, high pressure RO-plant and seawater piping

Mechanical and structural components, high strength, corrosion-resistant parts

Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping


Alloy % Cr % Mo % N PRE
2507 25 4.0 0.3 42.5
2205 22 3.2 0.18 35

Size Range
Outside Diameter: 1/4” through 1.00"
Wall Thickness: .035" through .120


Production Specifications - ASTM A789/ASME SA789 UNS S32750

Material UNS Standard C Mn P S Si Ni Cr Mo N Cu
2507 S32750 ASTM A789 0.030 1.20 0.035 0.020 0.80 6.0-8.0 24.0-26.0 3.0-3.5 0.24-0.32 0.50
