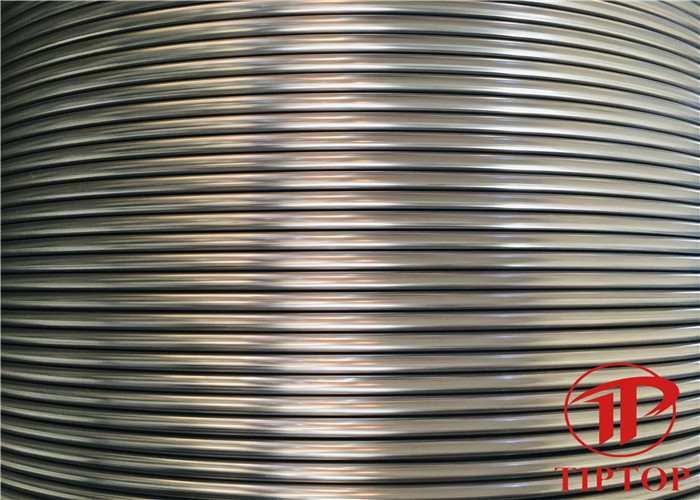

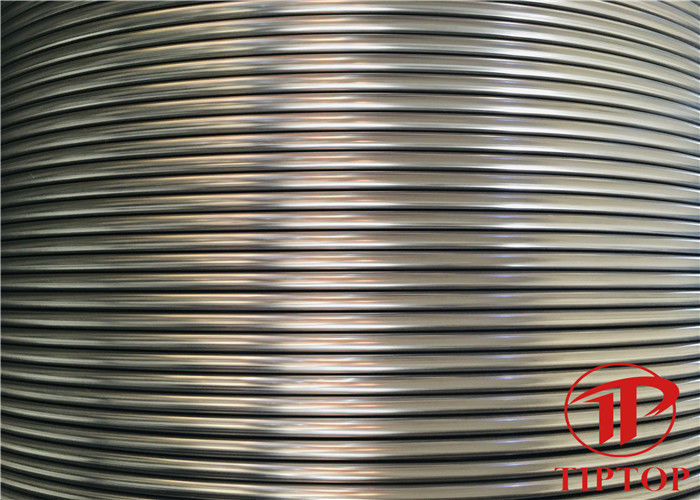

60-120 Mpa Seamless Hydraulic Control Line Tube Customized Length
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 825 |
Detail Information |
|||
Material: | Alloy 825 | Technique: | Cold Drawn |
---|---|---|---|
Standard: | ASTM B704 | Processing Type: | Seamless |
OD: | 1/2 | Thickness: | 0.035”, 0.049”, 0.065” |
High Light: | 1/2 SCSSV Oilfield Coil Tubing,SCSSV Stainless Coiled Tubing,Alloy 825 SCSSV Coil Tubing |
Product Description
Tiptop is specialized in providing alloy steel coiled tube, alloy steel control line and alloy steel continuous tube.
The nickel content in Alloy 825 provides resistance to chloride-ion stress corrosion cracking. The nickel, in conjunction with the molybdenum and copper, also gives Alloy 825 tubing great resistance to reducing environments, like those containing sulfuric and phosphoric acids. Aiding resistance to pitting and crevice corrosion is one of the chief benefits of the molybdenum. Resistance to a variety of oxidizing substances such as nitric acid, nitrates, and oxidizing salts comes from the chromium content. Titanium, often with heat treatment, serves to stabilize the alloy against sensitization to inter granular corrosion.
Seamless control lines are used in SCSSV, Chemical Injection, and Advanced Well Completions. Seamless tubes provide another tubing solution for our customer's complex well designs. The most common uses for Seamless line tend to be shorter length applications whereby no orbital welds are required.
Quality Control:
Hydrostatic test for each coil and conform to ASTM standards and requested specifications. The specification and length per coil can be customized according to customers’ requirements.
With high pressure and super length from 1/8” to 1/2” OD and a variety of wall thicknesses in loose bulk wound coils or reeled on wooden drum. These products are mainly applied in petroleum industry, chemical industry, shipbuilding, natural gas, and etc.
Size Chart:
OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
3/16" | 0.02,0.028,0.035,0.049 | ||||
1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
* OD: Up to 1 inch |
Chemical Composition:
Chemical Composition,% | ||||||||
Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
C | 0.08 | 0.035 | 0.08 | 0.035 | 0.03 | 0.03 | 0.1 | 0.05 |
Mn | 2 | 2 | 2 | 2 | 2 | 1.2 | 0.5 | 1 |
P | 0.045 | 0.045 | 0.045 | 0.045 | 0.03 | 0.035 | 0.015 | ... |
S | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.015 | 0.03 |
Si | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.5 | 0.5 |
Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
Mo | ... | ... | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
N | ... | ... | ... | ... | 0.14-0.20 | 0.24-0.32 | ... | ... |
Cu | ... | ... | ... | ... | ... | 0.5 | ... | 1.5-3.0 |
Fe | 5 | min 22.0 | ||||||
Al | 0.4 | 0.2 | ||||||
Ti | 0.4 | 0.6-1.2 | ||||||
Cb+Ta | 3.15-4.15 | ... |
Application:
Down hole tubes
Subsea umbilical’s
Process constructions
General control system
Steam supply lines
Gas transport lines
Instrumentation
