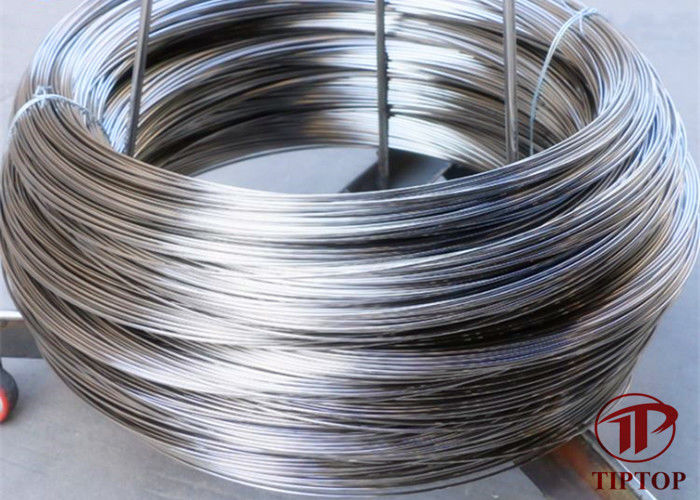

Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO | Model Number: | 1 / 4 |
Detail Information |
|||
Material: | Austenitic Steel 304L (UNS S30403) Austenitic Steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625)625 | Standard: | ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
---|---|---|---|
Length: | According To The Sizes | Processing: | Bending, Welding, Cutting |
OD: | 1/4" | Product: | SSSV SS Hydraulic Control Line Tubing 1/4" OD |
High Light: | UNS S30403 Control Line Tubing,1/4" OD Control Line Tubing,ISO SS Hydraulic Control Line Tubing |
Product Description
1/4" hydraulic control line tubing is mainly for controlling the oil and gas well downhole packers and cable release valve. 1/4" hydraulic control line is connected to the downhole ety valve and gas valve, through the cable packer oil and gas well downhole ety valve and a pressure release valve is controlled by switching the ground pressure. After reaching the set pressure, the cable passes through the packer and valve purge valve open simultaneously. In this case, the normal production of oil and gas wells can be guaranteed, and the separated gas by an electric submersible pump can be discharged from the annulus through the discharge valve. Then, the release control line pressure to the downhole ety valve while closing the wells of the cable and through the gas release valve of the packer, and wells tubing and annulus circulation channels are blocked, so as to ensure the ety of the well. Of course, the 1/4" hydraulic control line tubing may also be a separate tubing used to control the downhole ety valve. It can also be used for the ground pressure relief valves and other control surface, as well as large-scale equipment for the instrumentation control system of the oil and gas drilling and production species connecting line.
Size Chart:
OD | WT | Materials | Standard | Working Pressure | Length |
1/4" | 0.02", 0.028", 0.035", 0.049", 0.065", 0.083" | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
* OD: Up to 1 inch |
Features:
High creep-rupture strength
Oxidation resistant to 1800°F
Good fatigue resistance
Excellent weldability
Outstanding resistance to chloride pitting and crevice corrosion
Immune to chloride ion stress corrosion cracking
Resistant to seawater under both flowing and stagnant conditions and under fouling
Applications:
Aircraft ducting systems
Jet engine exhaust systems
Engine thrust-reverser systems
Bellows and expansion joints
Turbine shroud rings
Flare stacks
Seawater components
Chemical process equipment handling mixed acids both oxidizing and reducing.
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
