Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
| Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
|---|---|---|---|
| Packaging Details : | wooden reel + wooden case | Delivery Time : | one week |
| Payment Terms : | L/C, T/T |
| Place of Origin: | China | Brand Name: | Tiptop |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | 1 / 4 x 0.049 |
|
Detail Information |
|||
| Technique: | Cold Drawn | Product: | Welded And Seamless Treated Cold Drawn SS Hydraulic Control Line Tubing Customized Length |
|---|---|---|---|
| Material: | UNS S30403, UNS S31603, UNS S32205 & S31803, UNS S32750, UNS N08825, UNS N06625 | Processing Procedure: | Welded&seamless Treated |
| OD: | 1/8"-1/2" | Thickness: | 0.025"-0.083" |
| High Light: | Cold Drawn SS Coiled Tubing,UNS S30403 SS Coiled Tubing,0.083" SS Coiled Tubing |
||
Product Description

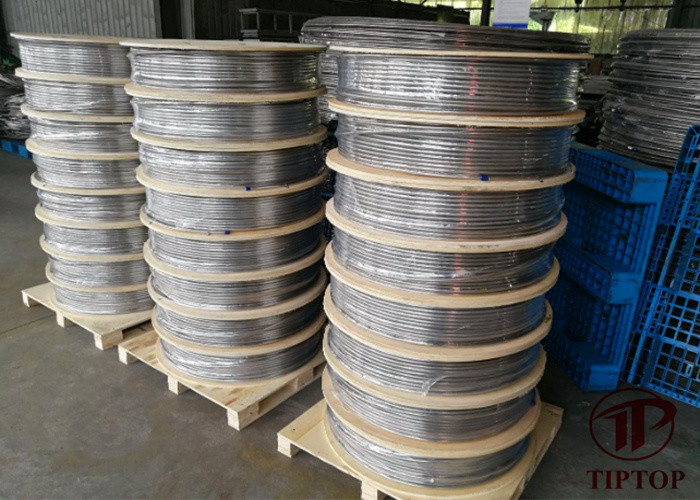

TIPTOP is supplying Welded and Seamless Treated Cold Drawn SS Hydraulic Control Line Tubing Customized Length. High quality and good service make our control line tubings exported to many countries.
Specificatipns
| OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
| 1/8" | 0.02,0.028,0.035 |
UNS S30403 UNS S31603 UNS S32205 & S31803 UNS S32750 UNS N08825 UNS N06625 |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
| 3/16" | 0.02,0.028,0.035,0.049 | ||||
| 1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
| 5/16" | |||||
| 3/8" | |||||
| 1/2" | |||||
|
OD: Up to 1 Inch The specification and length per coil can be customized according to customer’s requirements. |
|||||
Our controlline tubings are tested by Tubular Inspection Center of China National Petroleum Corporation, and each performance index meets America ASTM A269, ASTM-A 632, ASTM-A 789 amd ASTM-B 704 standards. Partial quality index even exceeds the international level. Our products are well accepted by domestic oifield such as Shengli Oilfield, Daqing Oilfield and etc. Our products are mainly applied in petroleum industry, chemical industry, shipbuilding, natural gas, etc..
Chemical Composition
| Composition (%) | ||||||||
| Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
| Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
| UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
| C | 0.080 | 0.035 | 0.080 | 0.035 | 0.030 | 0.030 | 0.10 | 0.05 |
| Mn | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 1.20 | 0.50 | 1.00 |
| P | 0.045 | 0.045 | 0.045 | 0.045 | 0.030 | 0.035 | 0.015 | ... |
| S | 0.030 | 0.030 | 0.030 | 0.030 | 0.020 | 0.020 | 0.015 | 0.030 |
| Si | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 0.80 | 0.50 | 0.50 |
| Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
| Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
| Mo | - | - | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
| N | - | - | - | - | 0.14-0.20 | 0.24-0.32 | - | - |
| Cu | - | - | - | - | - | 0.50 | - | 1.5-3.0 |
| Fe | 5.0 | min 22.0 | ||||||
| Al | 0.4 | 0.2 | ||||||
| Ti | 0.40 | 0.6-1.2 | ||||||
| Cb+Ta | 3.15-4.15 | - | ||||||
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
