Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|

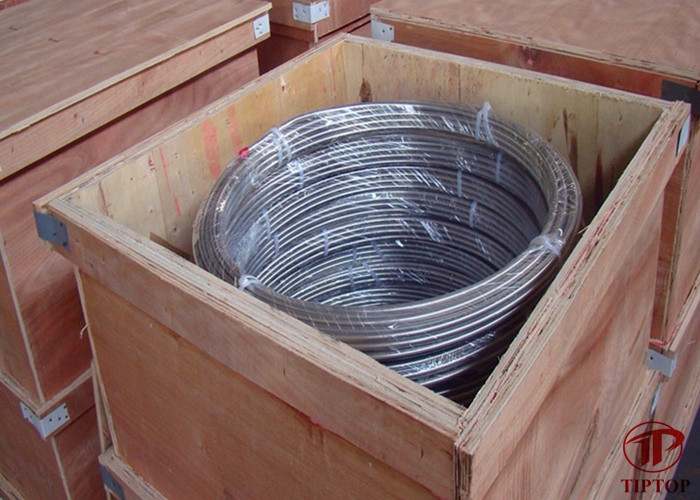

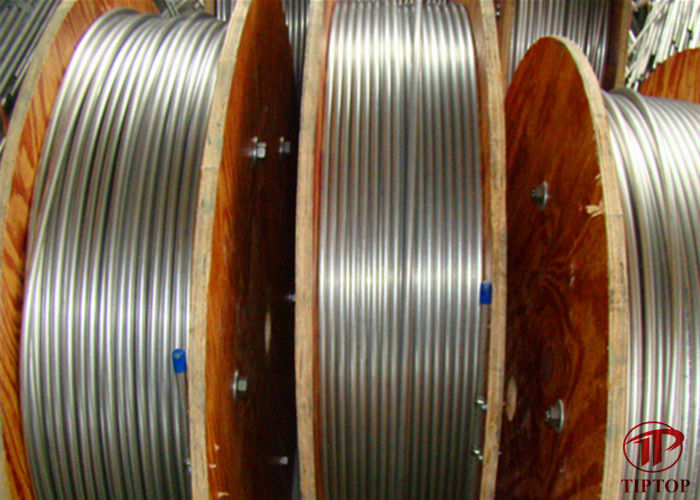

Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | 10 days |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO | Model Number: | 1 / 4 |
Detail Information |
|||
Material: | Austenitic Steel 304L (UNS S30403) Austenitic Steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) | Standard: | ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
---|---|---|---|
Length: | According To The Sizes | Processing: | Bending, Welding, Cutting |
OD: | 1/4" | Product: | SSSV SS Hydraulic Control Line Tubing Up To 1" OD |
High Light: | SSSV Hydraulic Control Line Tubing,1" OD Hydraulic Control Line Tubing,Welding Hydraulic Control Line Tubing |
Product Description
1/4" SS hydraulic control line tubing control wells packer downhole ety valve and purge valve. When used, 1/4" Hydraulic control line tubing is connected to the downhole ety valve and a purge valve, whose switching pressure is controlled by the surface pressure. After reaching the set pressure, the ety valve and release valve open simultaneously. In this case, the normal production wells can be guaranteed, and the separated gas through the discharge valve may be discharged from the ring by an electric submersible pump. Then, the pressure in the control line tubing is released, while the downhole ety valve and discharge valve are to be closed, oil and gas well tubing and annulus circulation channels are blocked, so as to ensure the ety of the well. Of course, the 1/4 "hydraulic control lines may be used alone, like the downhole ety valve for controlling the valve and the other ground surface valves, as well as large-scale equipment for connecting pipes of various instrumentation control system of the oil and gas drilling and production.
Size Chart:
OD | WT | Materials | Standard | Working Pressure | Length |
1/4" | 0.02”, 0.028”, 0.035”, 0.049”, 0.065”, 0.083” | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
* OD: Up to 1" |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
