Product Description

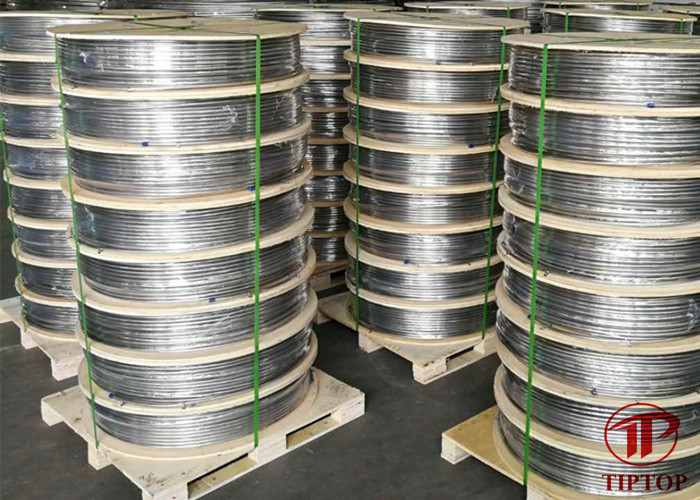

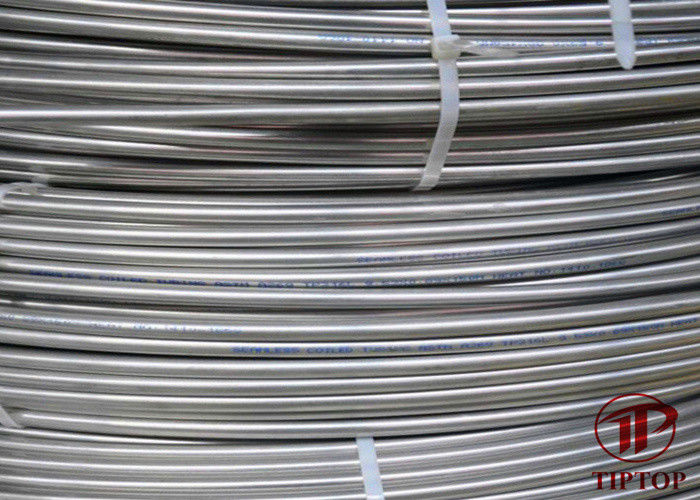

Welded 316L 304L SS Stainless Steel Coiled Tubing ASTM A249
Tiptop is one of China's famous suppliers of high-quality stainless steel coil tube. The maximum length of stainless steel coil tube is 2300 feet. SS coil straightener makes the stainless steel coil tube mount faster and easier. Depending on the application, SS coils are of different sizes.
Tiptop supplies various grades of stainless steel roller tube, such as 304 stainless steel roller tube, the roller tube 304L stainless steel, 316 stainless steel, 316L stainless steel roller tube and the roller tube.
Stainless Steel Coil Tube Specification
| Outside Diameter |
1/16” to 3/4" |
| Thickness |
0. 010" to 0.083” |
| Grades |
TP - 304,304L,316,316L |
| Seamless Coil Tubing Specifications |
ASTM A213 (average wall) and ASTM A269 |
| Welded Coil Tubing Specifications |
ASTM A249 and ASTM A269 |
(WELDED 304/L OR 316/L)
| Outside Diameter (OD) |
Wall Thickness |
| 1/8” – 3/4” |
0.5mm – 4mm |
Stainless Steel Coil Tube Tolerance
Stainless Steel Coil Tube Specifications – Restricted Tolerance Controls
OD Tolerance: +0.005/-0 in.
Hardness: Maximum 80 HRB (Rockwell)
Wall Thickness: ±10%
Chemistry: Min. 2.5% Molybdenum
Stainless Steel Coil Tube Chemical Composition
The below table shows the chemical composition of the used for Stainless Steel Coil Tubes:
| GRADES |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mo |
Ti |
Nb |
N |
| TP304 |
0.08 |
2 |
0.045 |
0.03 |
1 |
18.0-20.0 |
8.0-11.0 |
|
|
|
|
| TP304L |
0.035 |
2 |
0.045 |
0.03 |
1 |
18.0-20.0 |
8.0-13.0 |
|
|
|
|
| TP316 |
0.08 |
2 |
0.045 |
0.03 |
1 |
16.0-18.0 |
11.0-14.0 |
2.0-3.0 |
|
|
|
| TP316L |
0.035 |
2 |
0.045 |
0.03 |
1 |
16.0-18.0 |
11.0-14.0 |
2.0-3.0 |
|
|
|
Stainless Steel Coil Tube Mechanical Properties
| Material |
Heat |
Temperure |
Tensile Strength |
Yield Strength |
Elongation %, Min |
| Treatment |
Min. |
Ksi (MPa), Min. |
Ksi (MPa), Min. |
| |
º F(º C) |
|
|
| TP304 |
Solution |
1900 (1040) |
75(515) |
30(205) |
35 |
| TP304L |
Solution |
1900 (1040) |
70(485) |
25(170) |
35 |
| TP316 |
Solution |
1900(1040) |
75(515) |
30(205) |
35 |
| TP316L |
Solution |
1900(1040) |
70(485) |
25(170) |
35 |
Application
Industrial use: heat exchanger, boiler, petroleum, chemical, fertilizer, chemical fiber, pharmaceutical, nuclear power.
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
