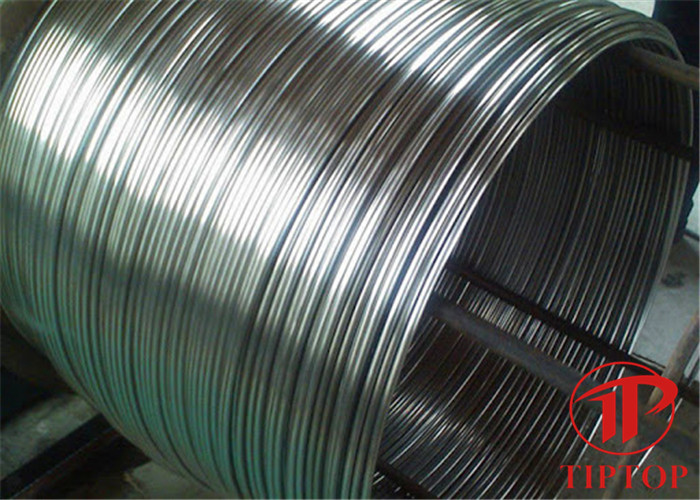

1/8 316L Oil Gas Capillary Coiled Tubing

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Seaworthy wooden cases or wooden reels Delivery Time : One Week
Payment Terms : T/T Supply Ability : 1000 tons per month
Place of Origin: CHINA Brand Name: TIPTOP
Certification: ISO Model Number: 1 / 8 * 0.035

Detail Information

Material: 316L Standard: ASTM A269
Length: According To The Sizes Processing: Bending, Welding, Cutting
OD: 1/8" Thickness: 0.035"
High Light:

0.035" ASTM Capillary Coiled Tubing


Oil Gas Capillary Coiled Tubing


0.035" ASTM A269 Coiled Tubing

Product Description

1 / 8 * 0.035 316L Hydraulic Control Line Capillary Tubes Used In Oil & Gas


Chemical Composition

Material UNS Standard C Mn P S Si Ni Cr Mo
304 S30400 ASTM A269 0.080 2.00 0.045 0.030 1.00 8.0-11.0 18.0-20.0 ...
304L S30403 0.035 2.00 0.045 0.030 1.00 8.0-12.0 18.0-20.0 ...
316 S31600 0.080 2.00 0.045 0.030 1.00 10.0-14.0 16.0-18.0 2.00-3.00
316L S31603 0.035 2.00 0.045 0.030 1.00 10.0-15.0 16.0-18.0 2.00-3.00


Size Chart

OD Wall
Materials Standard Working Pressure
1/8" 0.02,0.028,0.035 Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)
ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704
60-120 Mpa Customized
3/16" 0.02,0.028,0.035,0.049
1/4" 0.02,0.028,0.035,0.049,
* OD: Up to 1 inch




1/8” O.D., Wall thickness 0.035” material: 316L pressure: 100MPa


The hydraulic control pipeline is the another name for Capillary tubes, which is mainly used for oil and gas field underground capillary pressure measurement. The temperature and pressure sensor (also known as a downhole permanent pressure gauge, generally a nitrogen cylinder) and the production string of the oil and gas well are run into the oil and gas layer several kilometers deep, and then the 1/8 "hydraulic control line (capillary) The temperature and pressure sensors are always connected to the surface of the fluorescent display, so that the downhole temperature and pressure can be transmitted to the surface through the capillary tube, and the instantaneous temperature and pressure at the downhole oil and gas layer can be read out through the fluorescent screen of the surface display, thereby realizing the downhole temperature and pressure,so as to realize the real-time monitoring of downhole temperature and pressure. It can also be used for pressure control of surface safety valves and other surface valves, and various connection pipelines of large-scale equipment instrumentation control systems for oil and gas field drilling and oil production.


The products can be customized according to customer needs and produce as per client ' s samples. Our price is reasonable and the quality is superior. Our business and operation shows that our development are of growth, quality, and innovation; opening the doors wide open for new business opportunity and sky high profitability.
