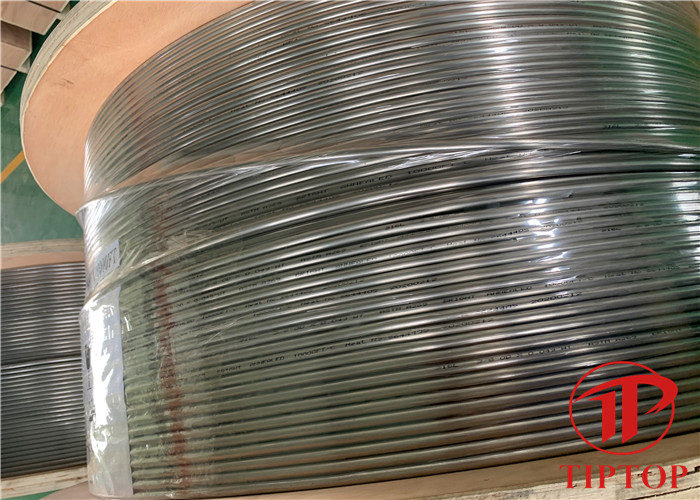

Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
|Minimum Order Quantity :||1 reel||Price :||USD/EURO/RMB|
|Packaging Details :||WOODEN REEL +WOODEN CASE||Delivery Time :||ONE WEEL|
|Payment Terms :||L/C, T/T,||Supply Ability :||1000 TONS PER MONTH|
|Place of Origin:||China||Brand Name:||Tiptop|
|Certification:||ISO 9001||Model Number:||316L|
|Standard:||ASTM A269||Processing Type:||Seamless & Welded|
bright Annealed SS Coiled Tubing,
0.035 ASTM Coiled Steel Tubing,
0.035 ASTM A269 Coiled Tubing
|1/8"||0.02,0.028,0.035||Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)
|* OD: Up to 1 inch|
Hydrostatic test for each coil and conform to ASTM standards and requested specifications.
The specification and length per coil can be customized according to customer’s requirements.
TIPTOP provides precision control line tubing for hydraulic and chemical injection of onshore and subsea oil and gas wells. The control line tubing is manufactured in a number of different product forms including seam welded and redrawn, seam welded and floating plug redrawn and seamless depending on the customer’s specification and application.
316/316L is the most commonly used austenitic stainless steel in the chemical process industry. The addition of molybdenum increases general corrosion resistance, improves chloride pitting resistance and strengthens the alloy in high temperature service. Through the controlled addition of nitrogen it is common for 316/316L to meet the mechanical properties of 316 straight grade, while maintaining a low carbon content.
The 3/8“ hydraulic control line is mainly used to inject chemicals into oil and gas wells. That is, the 3/8” hydraulic control line is connected to the downhole chemical injection valve, and the descaling is performed through the 3/8“ hydraulic control line and the chemical injection valve. Chemical agent is injected from the surface into the oil tube at a certain depth down the well, which effectively removes the scaling of the oil tube and ensures the normal production of oil and gas fields.
It can also be used for pressure control of surface safety valves and other surface valves, and various connection tubelines of large-scale equipment instrumentation control systems for oil and gas field drilling and oil production.
