Round Flat Diameter 38mm-42mm ESP Cable Protectors
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
|Minimum Order Quantity :||1 reel||Price :||USD/EURO/RMB|
|Packaging Details :||wooden cases||Delivery Time :||one week|
|Payment Terms :||L/C, T/T||Supply Ability :||1000 tons per month|
|Place of Origin:||China||Brand Name:||Tiptop|
|Product Name:||4-1/2" ESP Cable Protectors Φ30-33mm||Material:||Carbon Steel Or Stainless Stee|
|Tube Size:||2-3/8"~7"||Cable Type:||Round Or Flat|
|Cable Size:||Φ30-33mm||Feature:||Environmental Protection|
4-1/2" ESP Cable Protectors,
30mm ESP Cable Protectors,
33mm metal cable clamps
We offers a range of specialized control line clamps and protectors, These control line protector base body can be made by carbon steel or stainless steel material.

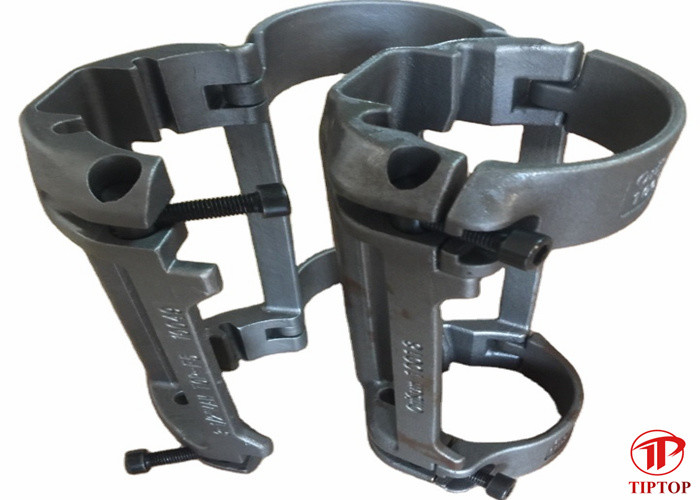

Casting Cable Protectors
Casting Cable protector is widely used applied on cross coupling, tubing, safety valve protection, completions, fixing, well repair and gauge completions. The body of cable protectors is produced by precision casting using high-grade materials to ensure product reliability. The unique streamline design prevents damage during dynamic movements of the production tubing and ensuring continuity and accuracy in the gauges completion. Cable protectors can be installed quickly as it has no separate parts or pins, reducing the hang-up risk.
Special cable protectors include safety valve protector, ESP clamps, pumping centralizers, and etc.
All-cast construction; ensures strength and reliability
One piece design without separate parts or pins
Smooth streamline design; reduces collision hanging risk
Optimized cable slot; considerate layout
Quick and reliable installation; less than 30 seconds

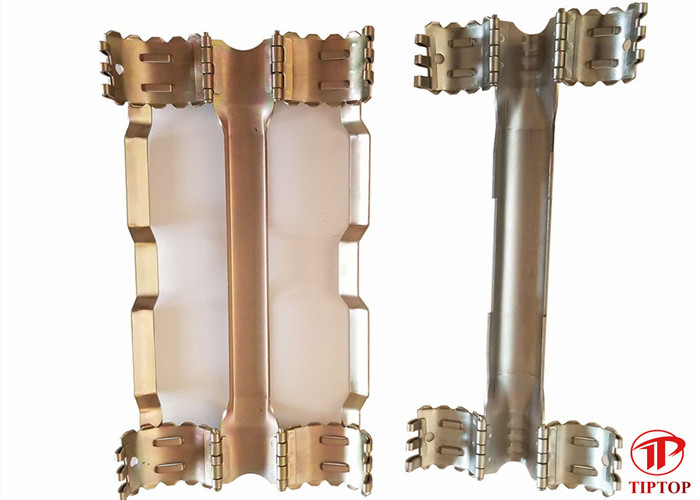

Punching type cable protector:
Punching cable protector is formed by a bolt mounted in the connecting tube, for a variety of cables, control lines, chemical injection lines, packaging line, widely used in cross-coupling, tubing, valve protection, completion, fixed , workover and completion of the measure. It provides a safe and efficient method, and underground cable transmission can be secured to the wellbore. These materials are stainless steel, carbon steel and other materials to meet the unique needs of customers. Site installation manually or hydraulic caliper caliper.
Compact, applicable to any cross coupling connector
Fast on-site installation
Reusable and recyclable products
|NO.||Description||Tube size||Cable type||Cable size|
|1||Cable Protector 2-3/8R6-8||2-3/8"||Round||Φ6-8mm|
|2||Cable Protector 2-3/8F11/34||2-3/8"||Flat||11mm SQUARE|
|3||Cable Protector 2-3/8R32-34||2-3/8"||Round||Φ32-34mm|
|4||Cable Protector 2-7/8R6-8||2-7/8"||Round||Φ6-8mm|
|5||Cable Protector 2-7/8R30-33||2-7/8"||Round||Φ30-33mm|
|6||Cable Protector 2-7/8R34-37||2-7/8"||Round||Φ34-37mm|
|7||Cable Protector 2-7/8F11/34||2-7/8"||Flat||11mm SQUARE|
|8||Cable Protector 2-7/8F16-19/56||2-7/8"||Flat||16-19mm SQUARE|
|9||Cable Protector 2-7/8F16-19/70||2-7/8"||Flat||16-19mm SQUARE|
|10||Cable Protector 3-1/2R6-8||3-1/2"||Round||Φ6-8mm|
|11||Cable Protector 3-1/2R30-33||3-1/2"||Round||Φ30-33mm|
|12||Cable Protector 3-1/2R34-37||3-1/2"||Round||Φ34-37mm|
|13||Cable Protector 3-1/2R38-42||3-1/2"||Round||Φ38-42mm|
|14||Cable Protector 3-1/2F11/34||3-1/2"||Flat||11mm SQUARE|
|15||Cable Protector 3-1/2F16-19/60||3-1/2"||Flat||16-19mm SQUARE|
|16||Cable Protector 3-1/2F19-23/70||3-1/2"||Flat||19--23mm SQUARE|
|17||Cable Protector 4-1/2R6-8||4-1/2"||Round||Φ6-8mm|
|18||Cable Protector 4-1/2R34-37||4-1/2"||Round||Φ34-37mm|
|19||Cable Protector 4-1/2R38-42||4-1/2"||Round||Φ38-42mm|
|20||Cable Protector 4-1/2F11/34||4-1/2"||Flat||11mm SQUARE|
|21||Cable Protector 4-1/2F16-19/60||4-1/2"||Flat||16-19mm SQUARE|
|22||Cable Protector 4-1/2F19-23/60||4-1/2"||Flat||19--23mm SQUARE|
|23||Cable Protector 5-1/2R6-8||5-1/2"||Round||Φ6-8mm|
|24||Cable Protector 5-1/2R34-37||5-1/2"||Round||Φ34-37mm|
|25||Cable Protector 5-1/2R38-42||5-1/2"||Round||Φ38-42mm|
|26||Cable Protector 5-1/2F11/34||5-1/2"||Flat||11mm SQUARE|
|27||Cable Protector 5-1/2F11-16/56||5-1/2"||Flat||11-16mm SQUARE|
|28||Cable Protector 5-1/2F16-19/70DUAL||5-1/2"||Flat||19--23mm SQUARE|
|29||Cable Protector 7R6-8||7"||Round||Φ6-8mm|
|30||Cable Protector 7F11/34||7"||Flat||11mm SQUARE|
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
