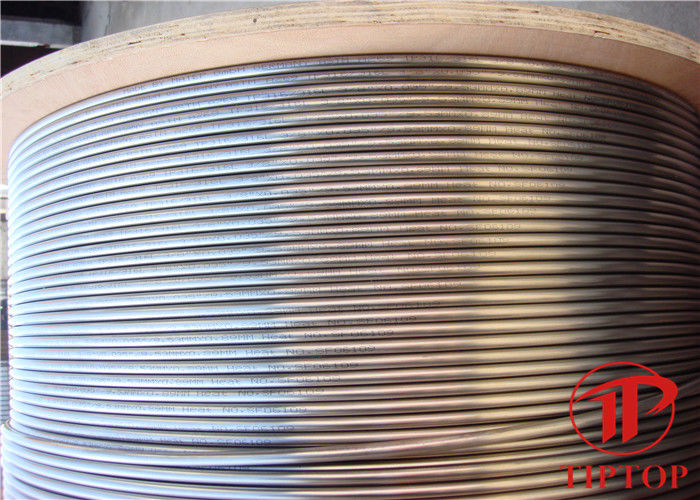

Alloy 625 Seamless Hydraulic Control Line Tubing

Minimum Order Quantity : 1 reel Price : USD/EURO/RMB
Packaging Details : WOODEN REEL +WOODEN CASE Delivery Time : ONE WEEL
Payment Terms : L/C, T/T, Supply Ability : 1000 TONS PER MONTH
Place of Origin: China Brand Name: Tiptop
Certification: ISO 9001 Model Number: 625

Detail Information

Material: Alloy 625 Technique: Cold Drawn
Standard: ASTM B704 Processing Type: Seamless
OD: 0.125” ~ 0.625” (3.18mm ~ 15.86mm) Thickness: 0.028” ~ 0.065” (0.711mm ~ 1.651mm)
High Light:

0.125" Alloy 625 Coiled Tubing


0.125" 0.028" Oil Well Coiled Tubing


ASTM B704 0.625" Control Line

Product Description

Alloy 625 Downhole Seamless Hydraulic Control Line Tubing ASTM B704


We are wildly providing the most competitive pricing for Hydraulic Control Line in large quantities, from OD 0.125” ~ 0.625” (3.18mm ~ 15.86mm), Wall Thickness Thk:0.028” ~ 0.065” (0.711mm ~ 1.651mm), Material Grades: 316L; Alloy 825,625;Duplex2205;2507; Encapsulated.

Material also be compatible to use with Completion Fluid (1.20 SG Brine Spacer, OBM or OBM Spacer) and Produced Fluids.The material comply with NACE MR 01-75 (latest edition)


Type 625 Alloy (UNS Designation NO6625) is an austenitic nickel-based super alloy possessing excellent resistance to oxidation and corrosion over a broad range of corrosive conditions, including jet engine environments and in many other aerospace and chemical process applications. The alloy has outstanding strength and toughness at temperatures ranging from cryogenic temperature to 2000°F (1093°C). Type 625 alloy also has exceptional fatigue resistance. It derives its strength from the solid solution strengthening effects of molybdenum and columbium on the nickel-chromium matrix. Although the alloy was developed for high temperature strength, its highly alloyed composition provides a high level of general corrosion resistance to a wide range of oxidizing and non-oxidizing environments.


Tiptop is specialized in providing alloy steel coiled tube, alloy steel control line, alloy steel continuous tube.


Seamless control lines are used in SCSSV, Chemical Injection, and Advanced Well Completions. Seamless tubes provide another tubing solution for our customer's complex well designs. The most common uses for Seamless line tend to be shorter length applications whereby no orbital welds are required.


For more information on our range of Hydraulic Control Line, please contact us at your convenience and we will serve you quite well.


Size Chart





Working Pressure




Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)

ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704

60-120 Mpa









* OD: Up to 1 inch


Hydrostatic test for each coil and conform to ASTM standards and requested specifications.


The specification and length per coil can be customized according to customer’s requirements.
