Low Carbon Steel CT70 API 5ST Flexible Coiled Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
|Minimum Order Quantity :||1 reel||Price :||Negotiable|
|Packaging Details :||Wooden reels or metal spool||Delivery Time :||10 days|
|Payment Terms :||T/T||Supply Ability :||3000 tons per month|
|Place of Origin:||China||Brand Name:||TIPTOP|
|Certification:||ISO||Model Number:||3/4 " ~ 3 1/2"|
|Application:||Pumping/Logging /Umbilical Cable/ Concentric Coiled Tubing||Working Pressure:||69 MPa/ 103.5 MPa|
103.5MPa CT70 Stainless Coil,
Logging API 5ST Coiled Tubing,
Concentric API 5ST Coiled Tubing

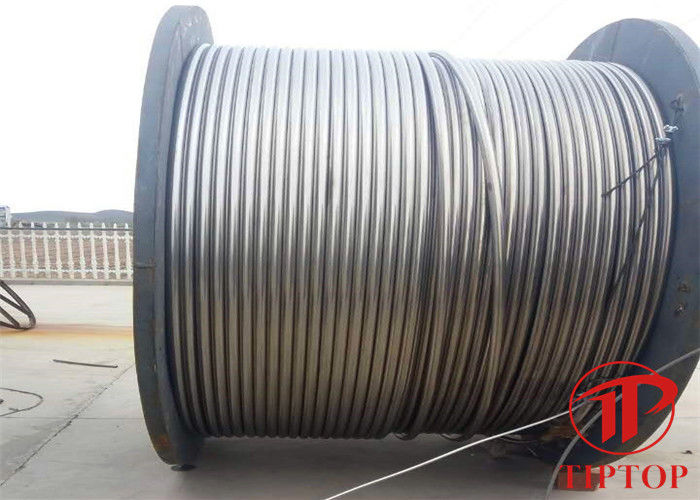

API spec 5ST Conventional High - Strength Coiled Tubing CT70 Stainless Coil
Coiled tubing(CT), also known as flexible pipe, is a kind of welded steel pipe with high strength, good plasticity and strong corrosion resistance. The length of a reel can reach several thousand meters. At present, with the development of coiled tubing operation machine and related supporting equipment, coiled tubing operation technology has been applied to drilling, workover, oil testing, oil production, production increase, well completion and other fields.
Our conventional coiled tubing raw material has low content of sulfur and phosphorus, uniform microstructure, suitable mechanical properties, the flexion ratio of steel coil is lower than 0.80, and the strength performance difference of different parts is within 50MPa. All mechanical properties meet API Spec 5ST specification and have excellent fatigue resistance.
The steel grade and size information covered are as follows:
Type: Conventional coiled tubing(CT)
Advantages: high-strength, excellent fatigue resistance.
Reference material: CT70 CT80 CT90 CT110 CT110
Standard: API Spec 5ST
OD: 3/4 " ~ 3 1/2" (19.1 mm to 88.9 mm)
Thickness: 0.075 " ~ 0.3" (1.9mm~7.6mm)
Users can choose the required material and steel grade according to the operating conditions. The dimensions can be customized according to API Spec 5ST or user requirements.
Chemical composition requirements for carbon steel low alloy steel coiled tubing
|Chemical composition (%)|
|Material||CT Standard||Max C||Max Mn||Max P||Max S||Max Si|
Mechanical properties of carbon steel and low alloy steel coiled tubing
|Grade||Min. Yield strength||Max. Yield strength||Min. Tensile strength||Max. hardness HRC|
|Psi||Mpa||Psi||MPA||Psi||Mpa||Tube body &weld seam|
