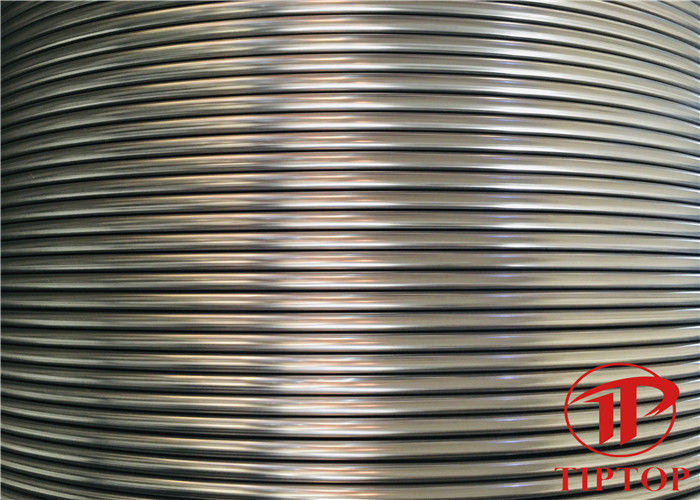

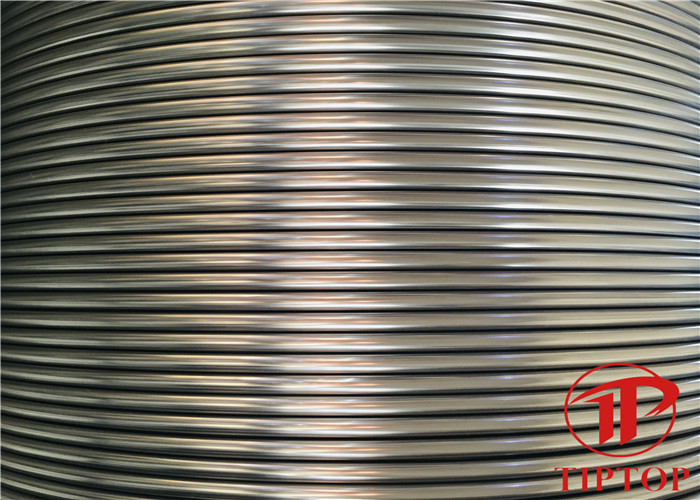

Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|
|Packaging Details :||Seaworthy wooden cases or wooden reels||Delivery Time :||10 days|
|Payment Terms :||T/T||Supply Ability :||1000 tons per month|
|Place of Origin:||CHINA||Brand Name:||TIPTOP|
|Certification:||ISO||Model Number:||3 / 8 * 0.049|
|Material:||316L, 304L, S30403, S31603||Standard:||ASTM A269|
|Length:||According To The Sizes||Processing:||Bending, Welding, Cutting|
ASTM Offshore Coiled Tubing,
S30403 Control Line Tubing,
S30403 Control Line Tubing
|1/8"||0.02,0.028,0.035||Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)
The Oil & Gas sector represents one of TIPTOP principal markets for supply of a wide range of corrosion resistant capillary tubing product forms and materials. Our tubing products have been successfully used in some of the most aggressive subsea and downhole conditions and we have a long proven track record of supplying products that meet the strict quality requirements of the Oil & Gas and geothermal energy sectors.
Coiled line pipe mainly used in surface gathering pipe line on-land oil field and gathering pipe line on offshore drilling platform.
Instructions for 1/4” Hydraulic control line
1/4”Hydraulic control line, mainly used for the control of downhole safety valve and gas release valve of cable packer in oil and gas wells. The 1/4 “hydraulic control tubeline is connected to the downhole safety valve and gas valve, and the on-off pressure of the oil and gas well downhole safety valve and the gas release valve through the cable packer are controlled by ground pressure. After the set pressure is reached, the oil and gas well is downhole. The safety valve and the gas release valve passing through the cable packer are opened at the same time. At this time, the oil and gas well can be normally produced, and the gas separated by the electric submersible pump can also be discharged from the annulus through the gas release valve. Then, the pressure of the control tubeline is released, so that the downhole safety valve of the oil and gas well and the gas release valve passing through the cable packer are closed at the same time, and the oil and gas well oil tubes and annulus circulation channels are all blocked, so that the safety of the oil well can be ensured. Of course, the 1/4” hydraulic control line can also be used alone for the control of downhole safety valves.
It can also be used for pressure control of surface safety valves and other surface valves, and various connection tubelines of large-scale equipment instrumentation control systems for oil and gas field drilling and oil production.
