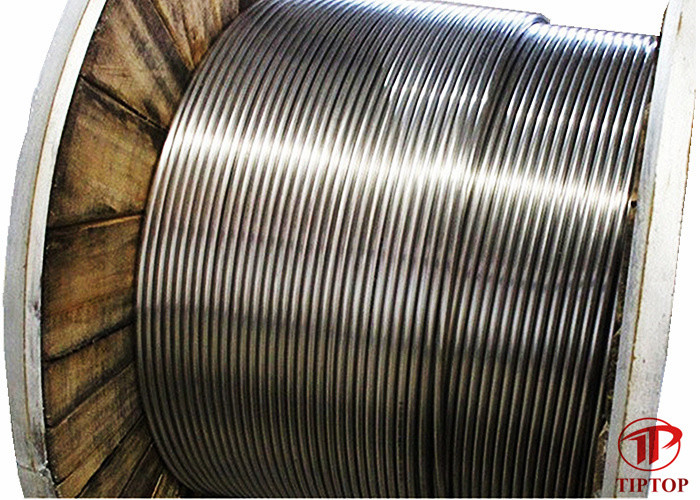

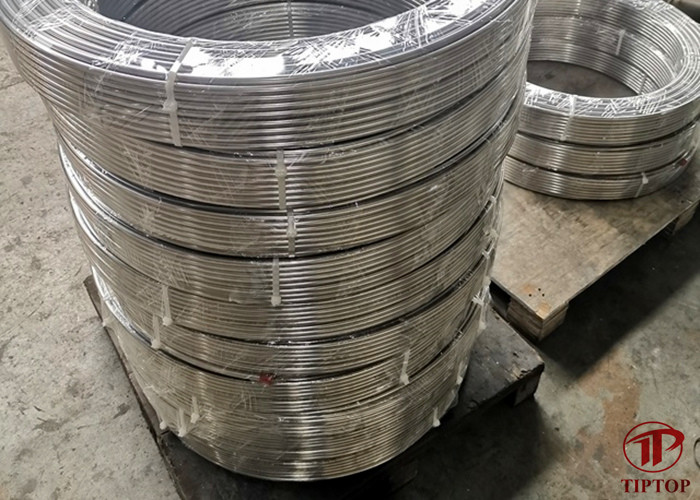

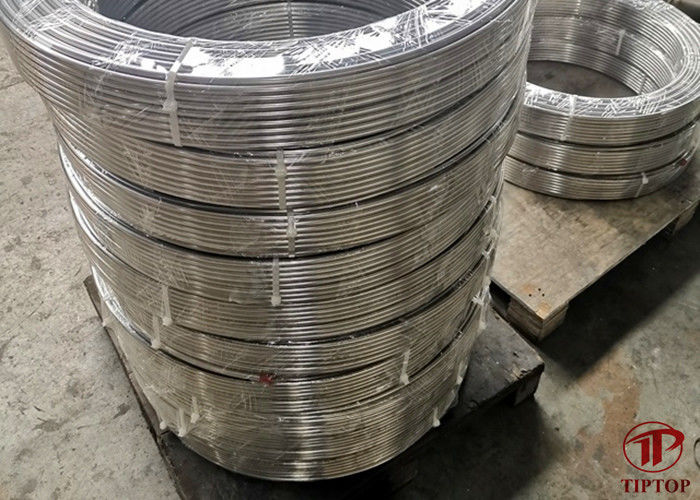

Inconel 625 Seamless Hydraulic Control Line Tube 1/8"-1/2" OD

Minimum Order Quantity : 1 reel Price : USD/EURO/RMB
Packaging Details : WOODEN REEL +WOODEN CASE Delivery Time : ONE WEEL
Payment Terms : L/C, T/T, Supply Ability : 1000 TONS PER MONTH
Place of Origin: China Brand Name: Tiptop
Certification: ISO 9001 Model Number: Inconel 625

Detail Information

Material: Inconel 625 OD: 1/8"-1/2"
WT: 0.028"~0.065" Technique: Cold Drawn
Standard: ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 Processing Type: Seamless
High Light:

Inconel 625 Control Line Tubing


Hydraulic Control Line Tube 1/8"


1/2" Hydraulic Control Line Tube

Product Description

Inconel 625 Seamless Hydraulic Control Line Tube 1/8"-1/2" OD


Inconel 625 is a main component of nickel austenitic superalloys. Since the nickel-chromium alloy contains molybdenum and niobium in solid solution with enhanced effect, thus from low to high tensile strength of 1093 ℃, and exceptional fatigue resistance, it has been widely used in the oil and gas industry.


Although this alloy was designed for high temperature, but a high content of chromium and molybdenum in the alloy, from a high oxidizing environment for the environment in general more corrosion media, have a high anti-corrosion and fission point corrosion. Corrosive environment, exhibit excellent corrosion resistance properties. INCONEL 625 also has strong corrosion resistance to chlorinated media such as sea water, geothermal water, neutral salt and brine. Through the geothermal salt water test and the simulated gas desulfurization environment test, the corrosion resistance of INCONEL 625 is even comparable to the second grade titanium and Hastelloy C-276.


In addition, the alloy has high formability and is easier to weld than many nickel-based alloys. The alloy is resistant to intercrystalline corrosion even when welded. It has good tensile and fatigue properties from low temperature to 980℃, and is resistant to stress corrosion under salt spray atmosphere.



Size Chart


OD Wall Materials Standard Working Pressure Length
1/8" 0.02", 0.028", 0.035" Inconel 625 (UNS N06625) ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704
60-120 Mpa Customized
3/16" 0.02", 0.028", 0.035", 0.049"
1/4" 0.02", 0.028", 0.035", 0.049", 0.065", 0.083"
* OD: Up to 1"




Down hole tubes

Subsea umbilical’s

Process constructions

General control system

Steam supply lines

Gas transport lines



Inconel 625 Seamless Hydraulic Control Line Tube 1/8"-1/2" OD 0




Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.

Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
