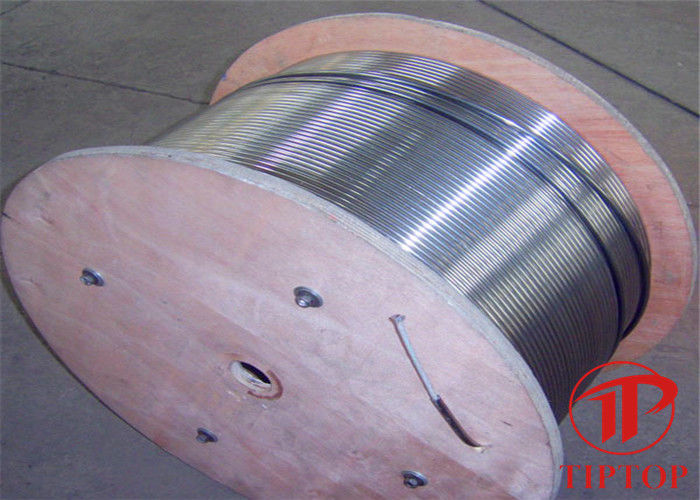

Oil Gas 1/8 ASTM B704 Incoloy 625 Coiled Line Pipe

Minimum Order Quantity : 1 reel Price : USD/EURO/RMB
Packaging Details : WOODEN REEL +WOODEN CASE Delivery Time : ONE WEEL
Payment Terms : L/C, T/T, Supply Ability : 1000 TONS PER MONTH
Place of Origin: China Brand Name: Tiptop
Certification: ISO 9001 Model Number: 625

Detail Information

Material: Alloy 625 Technique: Cold Drawn
Standard: ASTM B704 Processing Type: Seamless
OD: 1/8 Thickness: 0.025”, 0.035”, 0.049”
High Light:

Incoloy 625 Coiled Line Pipe


1/8 0.035" Oil Gas Coiled Line


Alloy 625 0.035" Coiled Line

Product Description

1 / 8 ASTM B704 Incoloy 625 Seamless Hydraulic Control Line Tubing for Oil & Gas


Tiptop is a supplier of welded and redrawn, seamless and redrawn capillary tube made from corrosion-resistant incoloy 625. We have been specializing in providing capillary tubes with different sizes for the oil and gas industry.


Type 625 Alloy (UNS Designation NO6625) is an austenitic nickel-based super alloy possessing excellent resistance to oxidation and corrosion over a broad range of corrosive conditions, including jet engine environments and in many other aerospace and chemical process applications. The alloy has outstanding strength and toughness at temperatures ranging from cryogenic temperature to 2000°F (1093°C). Type 625 alloy also has exceptional fatigue resistance. It derives its strength from the solid solution strengthening effects of molybdenum and columbium on the nickel-chromium matrix. Although the alloy was developed for high temperature strength, its highly alloyed composition provides a high level of general corrosion resistance to a wide range of oxidizing and non-oxidizing environments.


Incoloy 625 capillary tube has excellent resistance to sulfuric acid and phosphoric acid corrosion, intergranular corrosion after welding. It won’t lead chloride stress corrosion cracking. With excellent resistance to pitting corrosion and crevice corrosion in a chloride ion-containing medium environment, it boasts great resistance to stress corrosion under sodium chloride salt solution medium. In addition, it has high strength and good toughness. It's mainly applied in petroleum industry, chemical industry, shipbuilding, natural gas, and etc.


Size Chart:

OD Wall
Materials Standard Working Pressure
1/8" 0.02,0.028,0.035 Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)
ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704
60-120 Mpa Customized
3/16" 0.02,0.028,0.035,0.049
1/4" 0.02,0.028,0.035,0.049,
* OD: Up to 1 inch


Hydrostatic test for each coil and conform to ASTM standards and requested specifications.


The specification and length per coil can be customized according to customer’s requirements.
